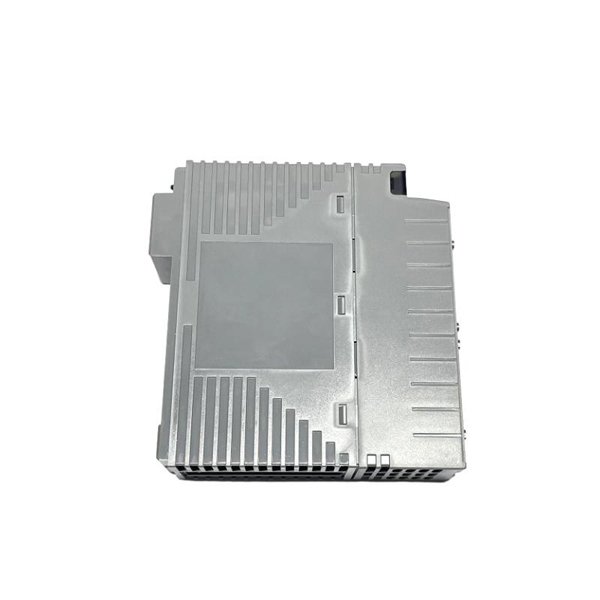

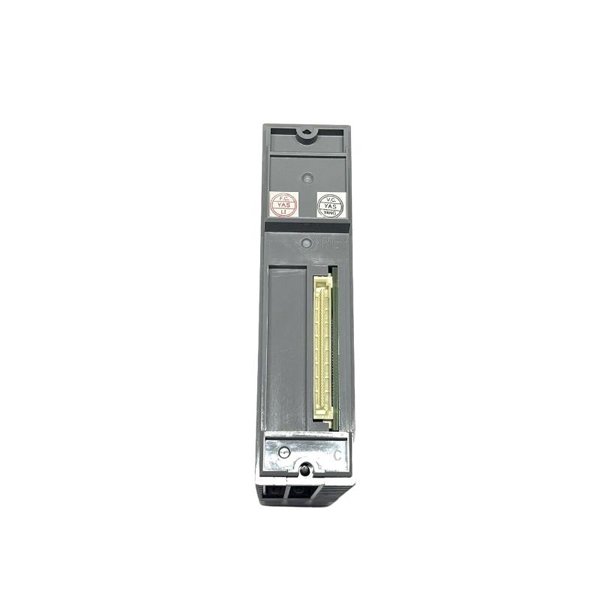

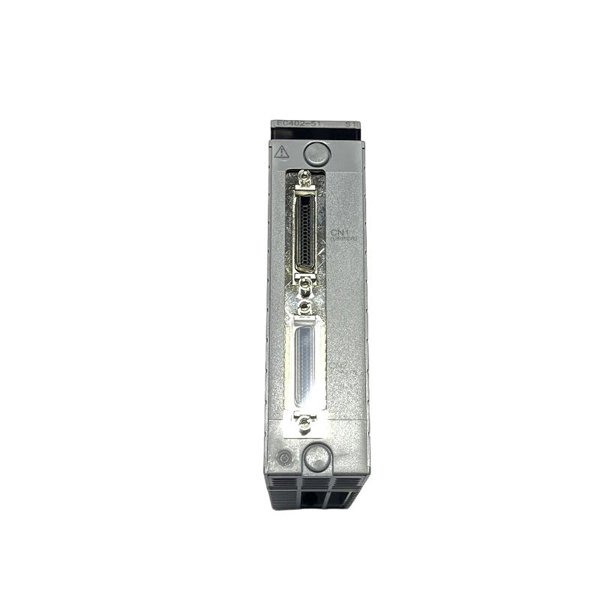

Yokogawa EC402-51 ESB Bus Coupler Module

The Yokogawa EC402-51 ESB Bus Coupler Module is a crucial element for industrial automation systems, particularly those requiring reliable communication within an ESB (Enhanced Serial Bus) network. This module serves as an interface between field devices (such as sensors, actuators, and other instruments) and the main control system, enabling seamless data transfer and process control in real-time.

This product is designed for use in various industrial sectors, including process control, manufacturing, and energy management. With its high compatibility and user-friendly features, the EC402-51 enables businesses to establish flexible and scalable systems that can grow with future demands.

The EC402-51 is engineered for industrial applications where robust and continuous communication is vital. This module supports advanced control strategies, making it ideal for applications that require high reliability and uptime. With easy installation and integration into existing systems, the EC402-51 ensures smooth operation and effective communication across a range of devices.

Product Specifications

Applications

1. Process Automation

   Used in industries like chemical, petrochemical, and pharmaceutical plants for connecting field instruments such as temperature sensors, pressure transducers, and control valves.

2. Energy Management Systems

   In power plants, the module helps integrate power meters, sensors, and controllers into a unified control network, improving monitoring and control of energy production.

3. Water and Wastewater Treatment

   Facilitates the integration of sensors, actuators, and monitoring devices used in water treatment processes to ensure compliance with regulatory standards.

4. Building Automation Systems (BAS)

   Used in smart buildings for controlling HVAC, lighting, and security systems, allowing for better energy efficiency and management.

5. Industrial Automation

   In manufacturing facilities, the EC402-51 can be used to control robotic systems, conveyors, and automated production lines, ensuring efficient and streamlined operations.

6. Remote Monitoring Systems

   Ideal for applications requiring remote monitoring and control, enabling operators to manage devices across large distances with ease and reliability.

Advantages

1. High Compatibility

   The module is designed to work seamlessly with other ESB-enabled devices, allowing for easy integration into existing systems.

2. Reliability

   Built to operate in demanding industrial environments, the EC402-51 ensures stable and error-free communication even in harsh conditions.

3. Energy Efficient

   The module operates on a 24V DC power supply and is designed to consume minimal energy, making it cost-effective over long periods of use.

4. Compact and Space-Saving Design

   With its compact size, the EC402-51 can be installed in spaces where other larger modules might not fit, without sacrificing performance.

5. Scalable System Expansion

   Supports the addition of more field devices, making it a scalable solution for growing industrial control systems.

6. Easy Installation

   The module supports DIN rail mounting, which simplifies the installation process and reduces time and labor costs during setup.

7. Durability

   Designed with robust industrial-grade materials, the module can withstand shock, vibration, and temperature variations.

8. Global Certifications

   Certified with CE, UL, and RoHS standards, ensuring the module meets international safety, environmental, and quality requirements.

9. Flexible Communication

   Supports high-speed data communication over the ESB bus, providing a reliable means of transferring data between devices and the central control system.

Frequently Asked Questions (FAQ)

1. What is the primary function of the EC402-51 ESB Bus Coupler Module?

   It serves as an interface between field devices and the control system, facilitating seamless communication over the ESB network.

2. What types of devices can be connected using this module?

   It can connect a variety of ESB-compatible field devices, including sensors, actuators, and other industrial automation equipment.

3. Is the module compatible with other Yokogawa devices?

   Yes, the EC402-51 is designed to work seamlessly with other ESB-enabled devices in Yokogawa’s automation portfolio.

4. What is the required power supply for the EC402-51?

   The module operates with a 24V DC power supply.

5. Can this module be used in outdoor installations?

   While the module is suitable for most industrial environments, it is not specifically rated for extreme outdoor conditions or exposure to hazardous elements.

6. What is the expected lifespan of the module?

   With proper installation and usage, the EC402-51 has a long operational lifespan, typically several years under normal industrial conditions.

7. How is the module mounted?

   The module can be easily mounted on a DIN rail, simplifying installation and integration into control panels.

8. Does the EC402-51 support system expansion?

   Yes, the module is highly scalable, allowing additional devices to be connected to the system without major redesigns.

9. What certifications does the EC402-51 have?

   It is CE, UL, and RoHS certified, ensuring it complies with international standards for safety, environmental impact, and quality.

10. What are the environmental conditions the EC402-51 can operate under?

    It operates within temperatures of 0°C to 60°C and can be stored in temperatures ranging from -20°C to 70°C.
