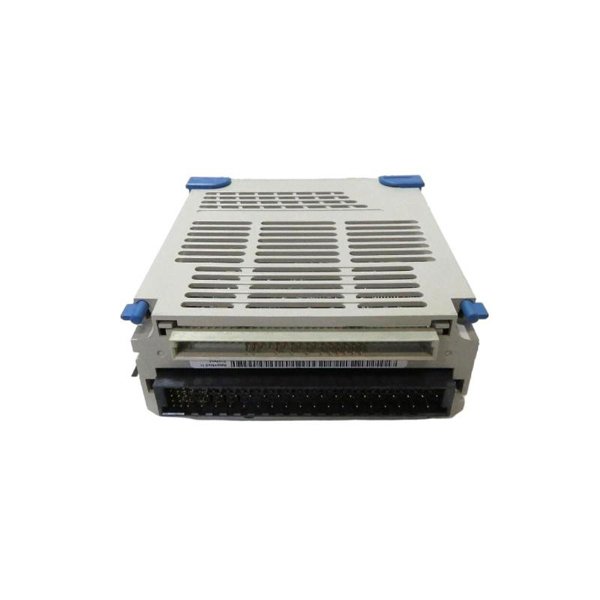

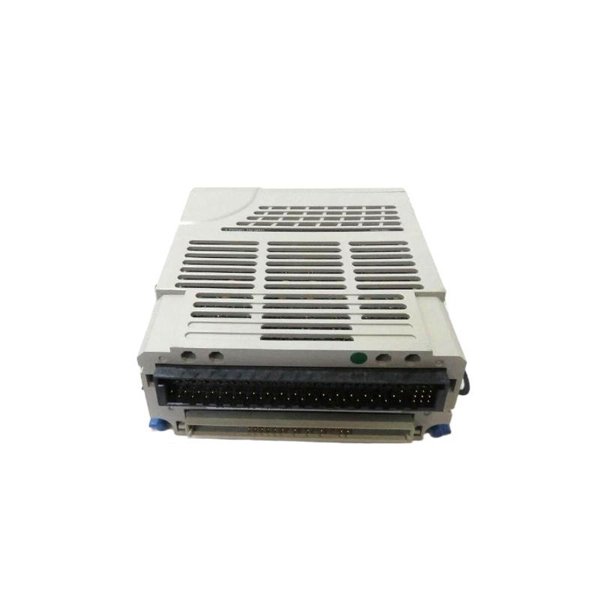

Ovation 5X00119G01 8 Channel RTD Input Module

The Ovation 5X00119G01 is an 8-channel RTD (Resistance Temperature Detector) input module designed for use within Emerson’s Ovation Distributed Control System (DCS). It is engineered to provide precise temperature measurement by interfacing directly with industrial RTD sensors, offering high-resolution, real-time temperature data essential for maintaining process efficiency and safety.

This module is ideal for environments where accurate temperature monitoring is critical, such as power generation, chemical processing, and water treatment plants. With advanced channel isolation, rugged design, and support for various RTD types (such as Pt100, Pt1000), it meets the rigorous demands of modern industrial automation systems.

The 5X00119G01 module integrates seamlessly into Ovation I/O chassis, supports hot-swapping, and provides built-in diagnostics to help reduce maintenance time and improve system uptime.

Product Specifications

Product Applications

The 5X00119G01 RTD Input Module is specifically designed for applications where precise and stable temperature measurement is crucial:

• Power Plants (Thermal, Hydro, Nuclear)

  Monitors steam temperature, bearing temperatures, cooling water systems, and boiler conditions.

• Water and Wastewater Treatment

  Tracks temperature in filtration, chemical dosing, and disinfection processes for improved process control.

• Chemical & Petrochemical Industry

  Measures reactor, tank, and pipeline temperatures to maintain safety and process efficiency.

• Food & Beverage Manufacturing

  Controls critical cooking, pasteurization, and refrigeration processes through temperature feedback.

• HVAC and Building Automation

  Manages air and fluid temperatures for climate control and energy efficiency.

• Pharmaceutical & Biotech

  Ensures accurate thermal monitoring in cleanrooms, fermenters, and autoclaves.

Product Advantages

• High Accuracy Temperature Monitoring

  Provides stable and precise measurement critical for temperature-sensitive operations.

• Multi-Wire RTD Support

  Accepts 2-, 3-, and 4-wire RTDs to suit a variety of field wiring configurations.

• Channel Isolation

  Protects against signal interference and ensures data integrity for each individual channel.

• Modular Design

  Easily hot-swappable without disrupting system operation—ideal for critical process environments.

• Diagnostic Capabilities

  Integrated open-circuit and fault detection reduces troubleshooting time and increases reliability.

• Ovation System Integration

  Seamlessly connects with Ovation control software and hardware for fast commissioning and stable operation.

Frequently Asked Questions (FAQ)

1. What RTD types are supported by the 5X00119G01 module?

   The module supports Pt100, Pt200, Pt500, and Pt1000 RTDs according to IEC 60751 standards.

2. Can the module detect a broken RTD wire?

   Yes, it includes built-in open-circuit detection to identify disconnected or failed RTDs.

3. Does it support 2-wire and 4-wire RTD configurations?

   Yes, it supports 2-wire, 3-wire, and 4-wire RTD connections, making it flexible for various field setups.

4. What is the typical response time for the RTD module?

   The response time varies with system configuration but is generally within 100–500 ms per channel.

5. Is calibration required after installation?

   The module is factory-calibrated, but periodic system calibration is recommended for critical applications.

6. Can this module be used in environments with electrical noise?

   Yes, it features channel-to-channel and ground isolation for robust operation in electrically noisy environments.

7. Is this module compatible with other Ovation I/O modules?

   Absolutely. It fits into the standard Ovation I/O rack and works in conjunction with analog and digital modules.

8. How is the module installed and connected?

   It is rack-mounted and uses terminal blocks for secure RTD wiring. Software auto-detection simplifies integration.

9. How can faults be identified on the module?

   LED indicators on the module show status and faults per channel, and diagnostics are also accessible via Ovation software.

10. Can I mix RTD types on different channels of the same module?

    It is recommended to use the same RTD type per module for uniform scaling, though some configurations allow variation if properly engineered.
