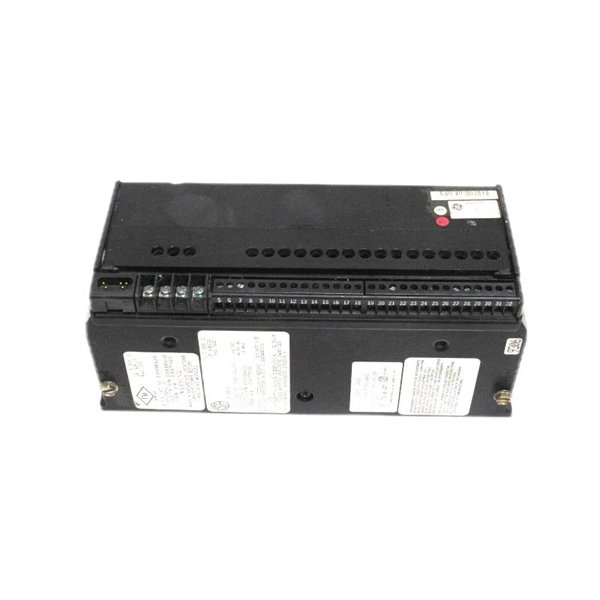

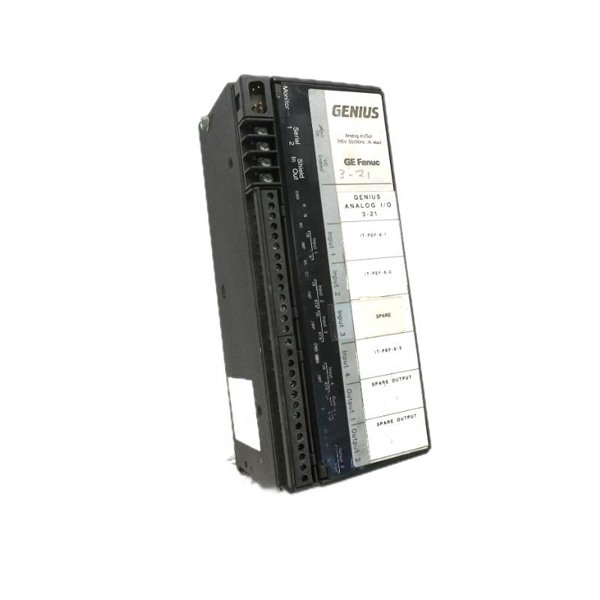

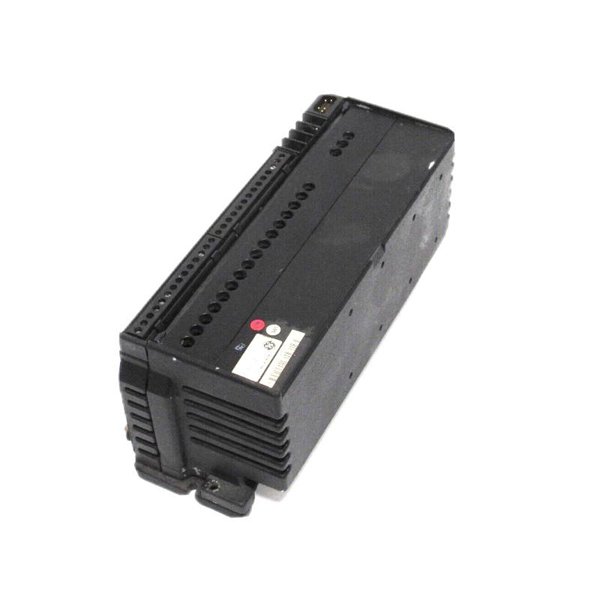

General Electric IC660ELA100 Analog I/O Modules
Manufacturer:GE
Product Number:IC660ELA100
Condition:Analog I/O Modules
Origin:USA
Dimensions:88.9 x 431.8 x 177.8mm
Weight:1.25kg
Views:47
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The GE IC660ELA100 is a high-performance analog output module designed for use in industrial automation and control systems. It is part of GE’s Series 90-30 PLC family, providing reliable and precise analog signal output for various industrial applications. This module is widely used in process control, manufacturing, and machinery automation due to its robust design and compatibility with GE’s programmable logic controllers.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | IC660ELA100 |
| Type | Analog Output Module |
| Output Channels | 4 channels |
| Output Signal Type | 4-20 mA, 0-10 V DC |
| Resolution | 12-bit |
| Accuracy | ±0.1% of full scale |
| Isolation | 500 V AC (channel-to-channel) |
| Load Resistance | 600 Ω (current output), 2 kΩ (voltage output) |
| Power Supply | 24 V DC (typical) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity Range | 5% to 95% (non-condensing) |
| Dimensions | 88.9 x 431.8 x 177.8mm |
| Weight | 1.25kg |
| Compatibility | GE Series 90-30 PLC |
Product Applications
The GE IC660ELA100 is widely used in industries requiring precise analog signal control, including:
-
Process Control Systems – Regulating flow, pressure, and temperature in chemical and oil refineries.
-
Manufacturing Automation – Controlling motor speeds, conveyor systems, and robotic arms.
-
Power Generation – Monitoring and adjusting turbine operations.
-
Water Treatment Plants – Managing pump speeds and valve positions.
-
HVAC Systems – Adjusting fan and damper controls.
-
Food & Beverage Industry – Ensuring consistent production line operations.
Product Advantages
-
High Precision – 12-bit resolution ensures accurate analog signal output.
-
Multiple Output Options – Supports both current (4-20 mA) and voltage (0-10 V) outputs.
-
Robust Isolation – 500 V AC isolation prevents signal interference.
-
Compact Design – Space-saving module suitable for dense control panels.
-
Wide Compatibility – Works seamlessly with GE Series 90-30 PLCs.
-
Durability – Operates reliably in harsh industrial environments.
-
Easy Integration – Simple wiring and configuration reduce installation time.
Frequently Asked Questions (FAQ)
Q1: What type of signals does the IC660ELA100 support?
A1: It supports 4-20 mA current output and 0-10 V DC voltage output.
Q2: How many output channels does this module have?
A2: It has 4 independent analog output channels.
Q3: Is the IC660ELA100 compatible with other GE PLCs besides Series 90-30?
A3: No, it is specifically designed for GE Series 90-30 PLCs.
Q4: What is the resolution of the analog outputs?
A4: The module provides 12-bit resolution for precise control.
Q5: Can this module operate in high-temperature environments?
A5: Yes, it operates within 0°C to 60°C (32°F to 140°F).
Q6: Does it require external power?
A6: Yes, it requires a 24 V DC power supply.
Q7: What is the load resistance for current output?
A7: The maximum load resistance is 600 Ω for current output.
Q8: Is there channel-to-channel isolation?
A8: Yes, it has 500 V AC isolation between channels.
Q9: Can this module be used in hazardous locations?
A9: No, it is not rated for hazardous areas unless used with additional protective enclosures.
Q10: How do I troubleshoot if the module stops working?
A10: Check power supply, wiring connections, and PLC configuration. If issues persist, consult the manual or contact GE support.
