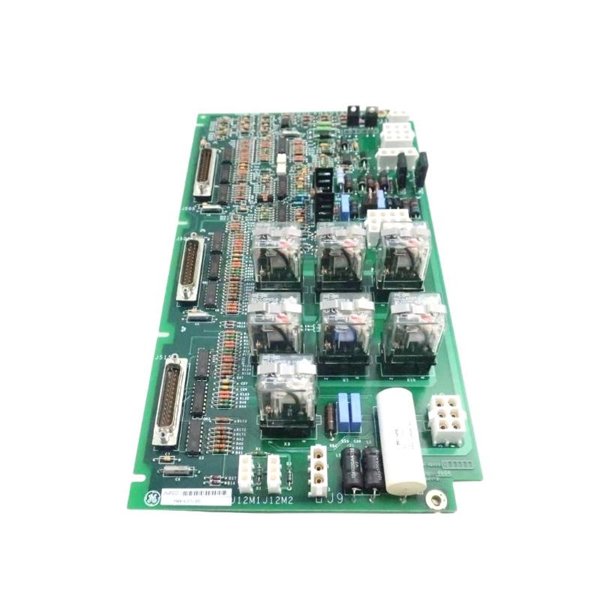

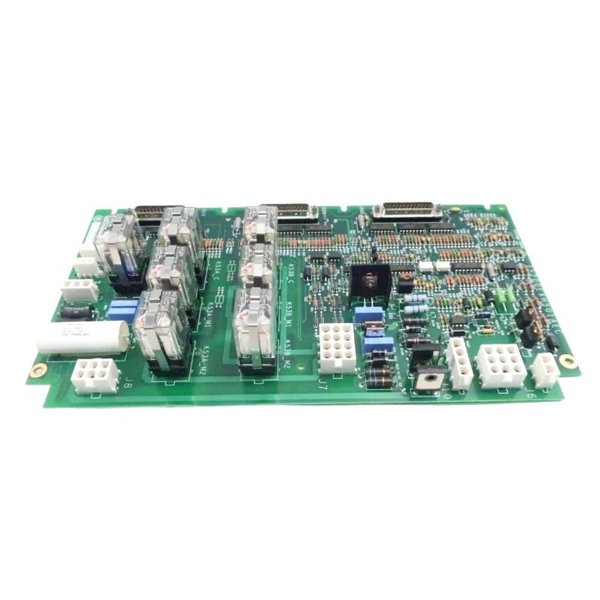

General Electric IS200EXHSG4A Exciter High Speed Relay Driver Board

The GE IS200EXHSG4A Exciter High Speed Relay Driver Board is an advanced electronic interface designed for high-performance exciter systems in industrial control environments. This board functions as a relay driver for excitation circuits, enabling precise and rapid switching of high-current signals to control synchronous generators or motors. It is engineered for integration with GE IS200 series systems, providing high-speed response, reliability, and compatibility with complex industrial automation networks. The IS200EXHSG4A enhances system stability by ensuring accurate excitation control and rapid fault response, supporting both normal and emergency operating conditions. Its robust design allows for use in power plants, industrial turbines, and heavy machinery control systems.

Product Specifications

Applications

• Synchronous Generator Excitation: Controls high-speed relay switching for excitation circuits in generators.

• Industrial Turbine Control: Provides precise excitation control to maintain rotor stability in turbine systems.

• High-Speed Relay Control: Operates relays for switching high-current loads in industrial automation.

• Power Plant Monitoring: Integrates with IS200 series monitoring systems for real-time exciter control.

• Emergency System Response: Supports rapid fault detection and safe shutdown procedures.

• Heavy Industrial Machinery: Ensures reliable relay driving in demanding industrial environments.

Advantages

• High-Speed Operation: Capable of switching relay outputs up to 10 kHz for fast system response.

• Reliable Excitation Control: Ensures precise voltage application to generator or motor windings.

• Robust Protection: Includes overcurrent, short-circuit, and thermal protection features.

• Flexible Installation: Can be mounted on panels or DIN rails, adapting to different control layouts.

• Compatibility: Seamless integration with GE IS200 series monitoring and control systems.

• Compact and Lightweight: Dimensions and weight allow easy integration into control cabinets.

Frequently Asked Questions (FAQ)

1. What is the maximum relay switching speed of the IS200EXHSG4A?

   The board supports relay switching speeds up to 10 kHz, enabling precise control of high-speed excitation circuits.

2. What type of load can the relay outputs handle?

   The relay outputs can handle up to 5 A continuous current and 10 A peak current, suitable for most exciter applications.

3. Which control logic is compatible with this board?

   It is compatible with TTL and CMOS logic inputs, ensuring flexibility in system integration.

4. Does the board provide protection against electrical faults?

   Yes, it includes overcurrent, short-circuit, and thermal protection to safeguard connected devices and the board itself.

5. Can the board operate in high-speed generator applications?

   Yes, it is specifically designed to handle high-speed relay driving requirements for generator excitation systems.

6. Is it compatible with other IS200 series modules?

   Yes, it integrates seamlessly with all IS200 series exciter and control modules.

7. How does the board respond to input signal fluctuations?

   The board is designed with fast response circuitry to handle transient input changes without affecting output stability.

8. Can it support multiple relays simultaneously?

   Yes, the board can drive multiple relays in parallel for complex excitation schemes.

9. Does the board include diagnostic or monitoring features?

   Certain variants and setups allow integration with monitoring systems to track relay status and system performance.

10. How does this board improve generator excitation reliability?

    By providing high-speed, precise relay switching with robust protection, it ensures stable excitation control, reducing the risk of generator instability or faults.
