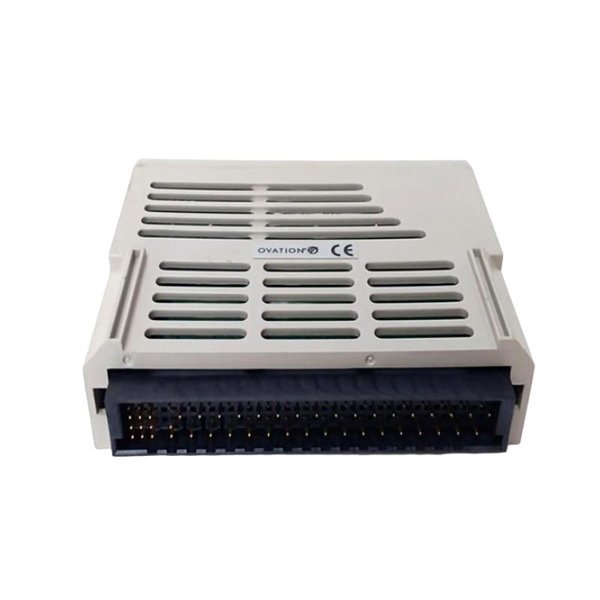

Ovation 1C31201G01 Servo Driver Personality Module

The Ovation 1C31201G01 Servo Driver Personality Module is a critical component in Emerson’s Ovation control system, designed to support precision motion control applications in demanding industrial environments. As part of a modular and scalable architecture, this personality module enables direct interface and customization for servo drive systems. It ensures real-time control and feedback functionality essential for accurate positioning and velocity control in automation processes.

Built with robust industrial standards, the 1C31201G01 integrates seamlessly with the Ovation distributed control system (DCS), enhancing the responsiveness and reliability of servo motor operations. This module is typically used in applications where high-speed motion control and precise synchronization with the control system are paramount.

Product Specifications

Applications

The Ovation 1C31201G01 module is widely used in industries where motion control and servo operation are integral to productivity and safety. Common applications include:

• Power Generation Plants: For precise turbine control and positioning systems.

• Water and Wastewater Facilities: Controlling valve actuators and pump positioning.

• Steel and Metal Manufacturing: Automation of cutting, bending, and rolling systems.

• Paper and Pulp Mills: Roll tension and web handling.

• Chemical Processing: Mixing control and robotic handling.

• Renewable Energy Systems: Positioning control for solar trackers and wind turbine yaw mechanisms.

Advantages

• High Integration with Ovation Systems: Seamlessly works with the Ovation DCS for optimal performance and minimal configuration.

• Precision Control: Offers real-time feedback and high-resolution motion profiling for demanding servo applications.

• Diagnostics & Troubleshooting: Built-in diagnostics help quickly identify operational issues to minimize downtime.

• Modular Design: Easily replaceable and configurable without affecting other parts of the system.

• Wide Environmental Tolerance: Designed to operate in harsh industrial conditions with stable performance.

• Long Lifecycle and Support: Backed by Emerson’s long-term support and part availability, ensuring system longevity.

Frequently Asked Questions (FAQ)

1. How does the 1C31201G01 module interact with servo motors in an Ovation control system?

   It interfaces directly with the servo driver, transmitting motion profiles and control signals from the DCS to the servo motor while receiving feedback such as position and torque.

2. What types of feedback signals are supported by this module?

   The module supports standard feedback mechanisms such as incremental encoder signals and analog velocity feedback, ensuring precise closed-loop control.

3. Can the 1C31201G01 module handle multi-axis servo systems?

   Yes, when used in conjunction with other servo modules and a capable CPU unit, it can support coordinated multi-axis control, depending on system configuration.

4. Is there a recommended servo drive brand or protocol compatibility for this module?

   It is primarily designed to interface with servo drives that are integrated or approved within the Ovation ecosystem, typically using proprietary or tightly coupled communication protocols.

5. How can I determine if the module is functioning correctly?

   Status LEDs on the module indicate power, communication, and fault states. Additionally, diagnostics can be accessed through the Ovation Control Builder software.

6. What happens during a servo positioning fault, and how does the module respond?

   The module immediately notifies the control system and can be configured to initiate safe shutdown sequences or fallback modes depending on system design.

7. Is it possible to clone configuration parameters from one 1C31201G01 module to another?

   Yes, using the Ovation Engineering Workstation tools, users can export and import module configurations to duplicate parameters across modules.

8. What is the maximum signal update frequency supported by this module?

   The module is capable of processing servo signal updates in the sub-millisecond range, suitable for high-speed, real-time motion control applications.

9. Does the module support any built-in safety features?

   While it is not a safety-rated module itself, it can interface with safety interlocks and emergency stop circuits managed at the system level.

10. What are the recommended installation practices to ensure reliable operation?

    Ensure proper grounding, maintain separation from high-voltage power cables, use shielded connectors for feedback wiring, and follow Ovation environmental guidelines for mounting and ventilation.
