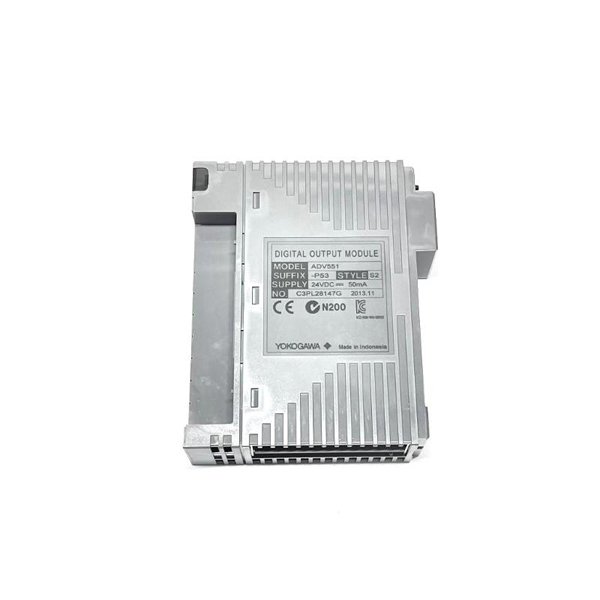

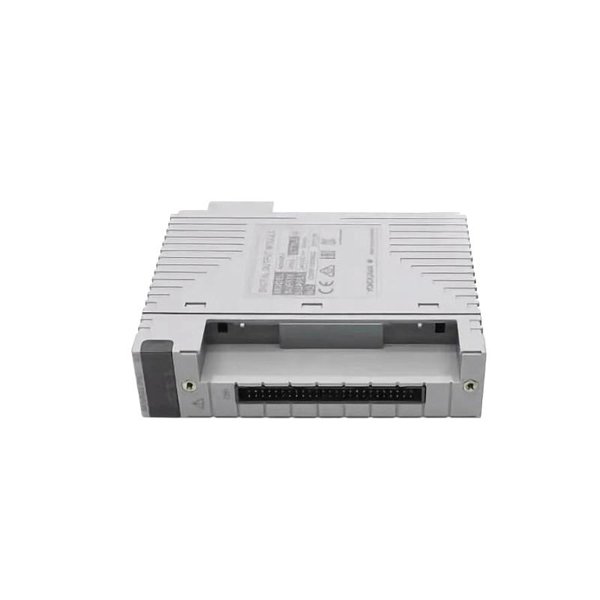

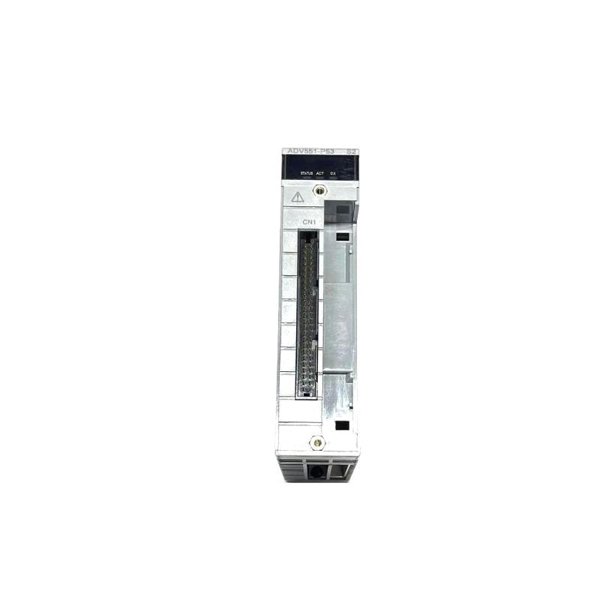

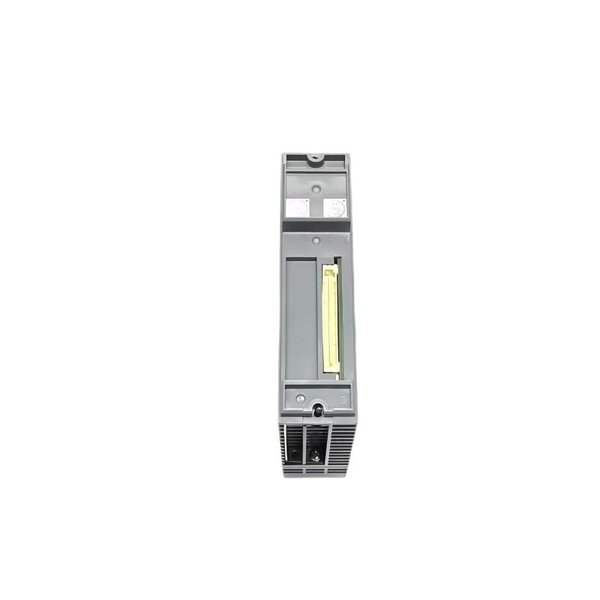

Yokogawa ADV551-P53 Digital Output Module

The Yokogawa ADV551-P53 Digital Output Module is a highly reliable and precise component designed for advanced process automation systems. As part of Yokogawa’s renowned ADV551 series, this module plays a critical role in delivering digital output signals that control various field devices in industrial environments. Engineered to meet the demanding requirements of process control systems, the ADV551-P53 ensures accurate, fast, and stable signal transmission with robust protection against noise and electrical interference.

Built with the industrial user in mind, this module features a compact design suitable for integration within the larger Yokogawa automation architecture. It supports multiple digital outputs, allowing for versatile control of valves, switches, alarms, and other automation elements. The module’s compatibility with Yokogawa’s CENTUM and ProSafe-RS platforms further extends its applicability in both conventional and safety-critical process control systems.

Product Specifications

Product Applications

The ADV551-P53 Digital Output Module is extensively used in various industrial sectors where precision digital control is crucial:

• Chemical and Petrochemical Plants: Control of solenoid valves, alarms, and safety shutdown systems.

• Power Generation: Managing turbine controls, breakers, and system interlocks.

• Water and Wastewater Treatment: Automation of pumps, valves, and monitoring alarms.

• Oil & Gas Industry: Remote control of field devices in hazardous environments.

• Pharmaceutical Manufacturing: Process automation ensuring compliance with safety standards.

• Food and Beverage: Reliable control of automated filling, packaging, and safety devices.

Product Advantages

• High Reliability: Designed for continuous operation in harsh industrial environments with strong resistance to electrical noise and vibration.

• Compact Size: Small footprint enables easy integration within existing control cabinets, optimizing space.

• Fast Response: Less than 10 milliseconds switching time allows timely control in critical processes.

• Safe Isolation: Opto-isolated outputs protect both the module and connected devices from electrical faults.

• Versatility: Compatible with Yokogawa’s broad automation ecosystem, ensuring seamless communication and control.

• Easy Installation and Maintenance: Supports DIN rail mounting with simple wiring, reducing downtime and labor costs.

• Robust Construction: Tested to withstand wide temperature and humidity ranges for global application.

• Certifications: Meets international standards ensuring suitability for global industrial use.

• Scalability: Multiple modules can be combined for extensive digital output needs.

• Industry Proven: Yokogawa’s longstanding reputation guarantees quality and performance backed by solid technical support.

Frequently Asked Questions (FAQ)

1. Q: What is the maximum current each output channel can handle?

   A: Each output channel can handle up to 500 mA.

2. Q: Is the module compatible with Yokogawa’s CENTUM VP system?

   A: Yes, it is fully compatible with the CENTUM VP and other Yokogawa control platforms.

3. Q: Can the ADV551-P53 module be mounted on a DIN rail?

   A: Yes, it supports DIN rail mounting for easy installation.

4. Q: What type of output does the ADV551-P53 provide?

   A: It provides transistor open-collector digital outputs.

5. Q: What are the operating temperature limits for this module?

   A: The module operates reliably between -10°C and +55°C.

6. Q: Does this module provide electrical isolation for its outputs?

   A: Yes, all output channels are opto-isolated for safety and noise immunity.

7. Q: How many output channels are on the ADV551-P53?

   A: The module includes 16 digital output channels.

8. Q: What is the typical response time of the outputs?

   A: The response time is less than 10 milliseconds.

9. Q: Can this module be used in safety-instrumented systems?

   A: Yes, it can be integrated into ProSafe-RS safety systems.

10. Q: What certifications does this module hold?

    A: It is certified by CE, UL, and CSA, meeting international standards.
