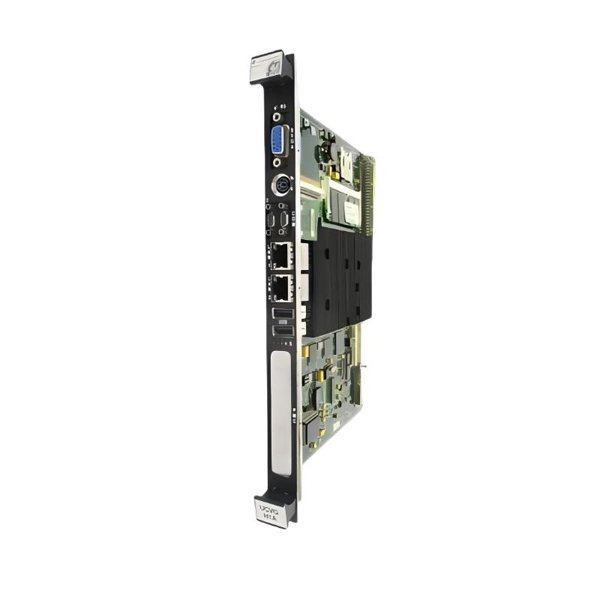

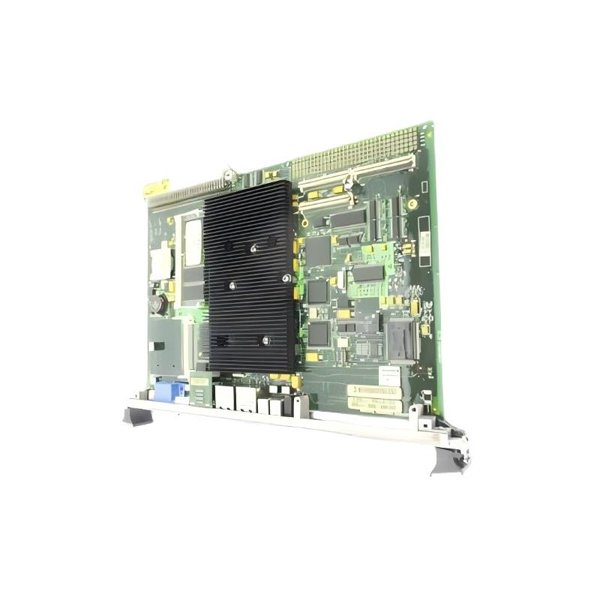

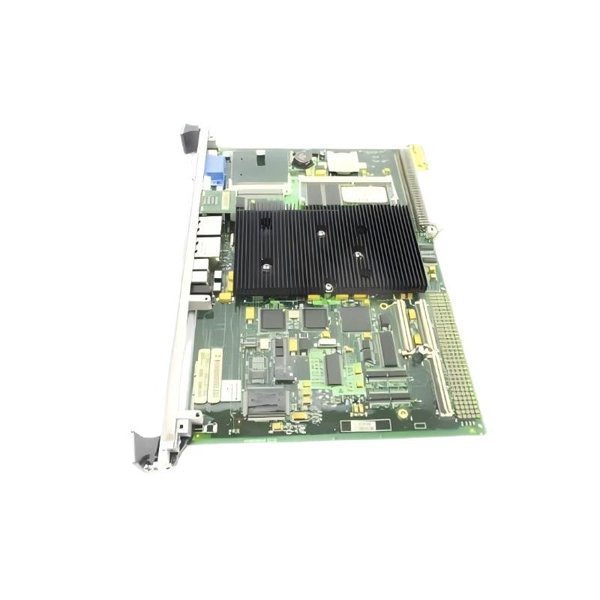

General Electric IS215UCVGH1AC VME Controller Single-Slot Board

The GE IS215UCVGH1AC VME Controller Single-Slot Board is a high-performance, compact solution designed for industrial control applications. This controller board is optimized for use in VMEbus-based systems, providing exceptional speed and reliability. Its single-slot design ensures it can be integrated into systems where space and slot availability are limited. With its powerful processing capabilities, the IS215UCVGH1AC controller supports complex control tasks, high-speed data acquisition, and seamless communication with other industrial components. It is engineered to meet the demands of industries where precision and system uptime are critical.

Technical Specifications

The following table outlines the key technical specifications of the GE IS215UCVGH1AC VME Controller Single-Slot Board:

Product Applications

The GE IS215UCVGH1AC VME Controller Single-Slot Board is used in various industrial and automation environments where fast, reliable, and scalable control systems are essential. Key applications include:

• Process Automation: The board is ideal for integration into process control systems where precise monitoring and control are necessary.

• Industrial Equipment Control: Used to manage and monitor equipment in manufacturing, energy, and other industrial sectors.

• Data Acquisition Systems: Suitable for real-time data collection from a variety of sensors and machines for analysis or remote monitoring.

• Energy Control: Monitoring and managing energy systems, from power generation to distribution.

• Robotics: Integrated into robotic control systems to manage complex motions and sequences.

• Automated Systems: Ideal for high-performance automated systems that require real-time control and diagnostics.

Product Advantages

• Compact Design: The single-slot configuration allows for efficient space utilization, ideal for systems with limited available slots.

• Reliable Performance: The IS215UCVGH1AC is designed to handle demanding industrial environments, offering stability and long-term reliability.

• Flexible Communication: It supports multiple communication protocols, ensuring easy integration with existing control systems such as Ethernet, Modbus RTU, and CANopen.

• Advanced Diagnostics: The built-in self-diagnostic features and LED indicators allow operators to monitor system health in real-time, improving maintenance efficiency.

• High I/O Capacity: With its multiple I/O ports, the controller supports a variety of digital and analog inputs and outputs for a wide range of applications.

• Temperature Tolerance: Designed for operation in harsh conditions, it can function in temperatures as low as -20°C and as high as 70°C, making it suitable for various environments.

FAQ

1. What is the power supply voltage for the GE IS215UCVGH1AC controller?

The power supply voltage for the GE IS215UCVGH1AC is 5V DC ±5%.

2. How many digital inputs does the controller support?

The IS215UCVGH1AC supports 8 digital inputs.

3. Can the controller be used in high-humidity environments?

Yes, the controller can operate in environments with humidity levels ranging from 5% to 95%, non-condensing.

4. What communication protocols are supported by the IS215UCVGH1AC?

This controller supports Ethernet, Modbus RTU, and CANopen communication protocols.

5. How many analog outputs does the GE IS215UCVGH1AC support?

The IS215UCVGH1AC supports 4 analog outputs.

6. Does the IS215UCVGH1AC include built-in diagnostics?

Yes, the controller features self-diagnostics and LED indicators for real-time system health monitoring.

7. What is the maximum operating temperature for this controller?

The IS215UCVGH1AC can operate in temperatures ranging from -20°C to 70°C.

8. What is the power consumption of the IS215UCVGH1AC?

The controller has a power consumption of 10 W.

9. Can the controller be used in energy management applications?

Yes, the IS215UCVGH1AC is suitable for energy management applications, providing control and monitoring of power systems.

10. Is the IS215UCVGH1AC compatible with other GE control systems?

Yes, the IS215UCVGH1AC is compatible with other GE control systems, making it a flexible solution for system integration.
