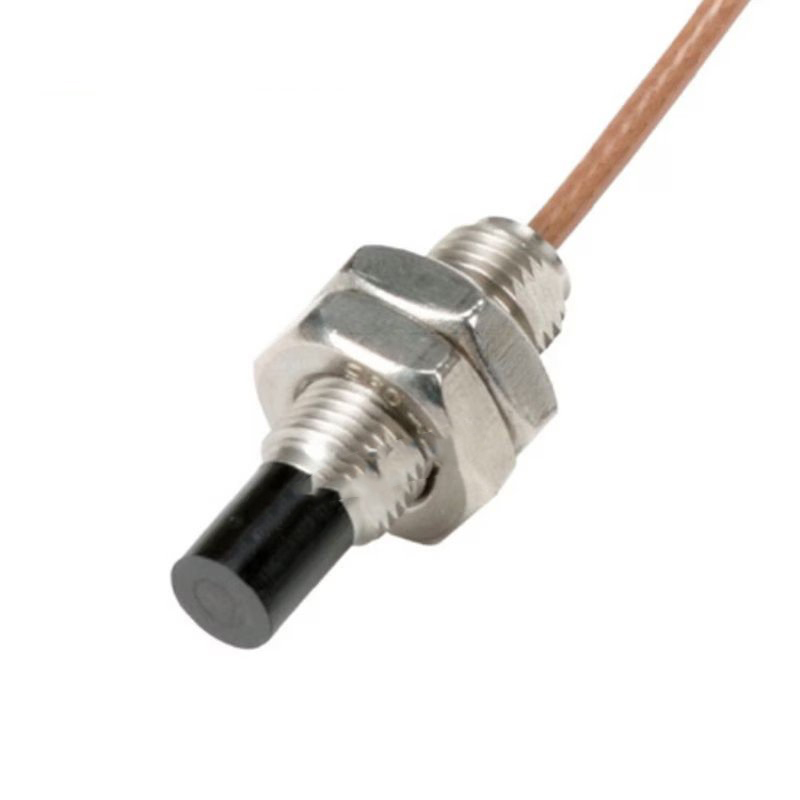

Epro PR6423/016-000 Eddy Current Displacement Sensor

The EPRO PR6423/016-000 is an Eddy Current Displacement Sensor for non-contact shaft displacement and vibration measurements. It is ideal for critical turbomachinery applications in industries like power generation, oil and gas, and manufacturing.

Technical Specifications

• Measuring Range: 0 to 2 mm (dynamic range up to 500 μm)

• Sensitivity: 8 V/mm

• Nominal Gap: 1.5 mm

• Target Material: Electrically conductive steel

• Operating Temperature: -35°C to +180°C (-31°F to +356°F)

• Storage Temperature: -40°C to +70°C (-40°F to +158°F)

• Pressure Limit: 2 bar

• Frequency Range: 0–20 kHz (-3 dB)

• Power Supply Voltage: -24 VDC

• Output Impedance: 100 ohms

• Environmental Protection: IP66

• Cable Length: 1 m (standard), extended lengths available

• Housing Material: Stainless steel

• Measuring Range: Measures from 0 to 2 mm with high accuracy.

• Sensitivity: Provides 8 V/mm, ensuring precise measurements.

• Frequency Response: 0 to 10 kHz, covering a wide range of vibrations.
