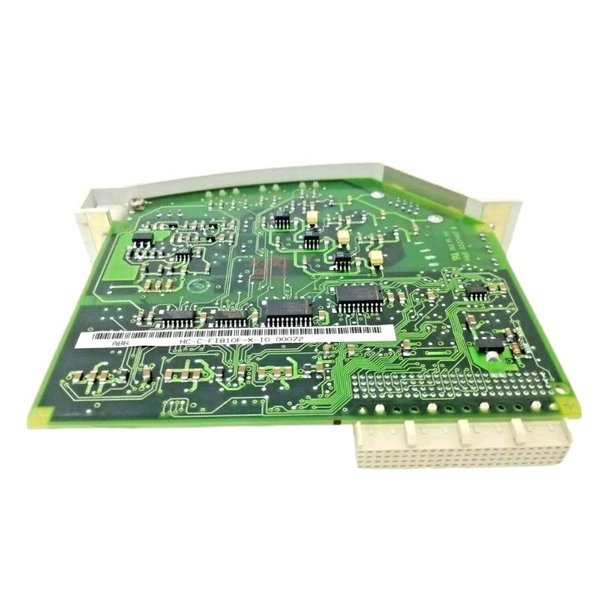

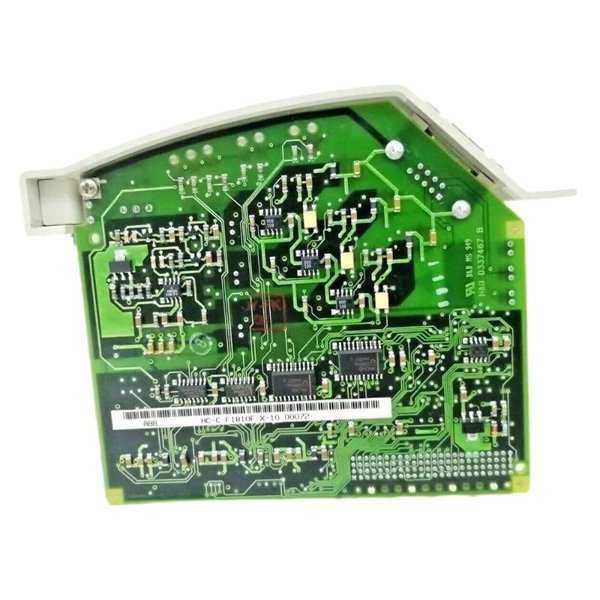

ABB FI 810F 3BDH000030R1 Fieldbus Module

The ABB FI 810F 3BDH000030R1 is a state-of-the-art fieldbus module designed to facilitate robust and reliable communication within industrial automation systems. This module is part of ABB’s advanced portfolio of fieldbus communication solutions, offering seamless integration with a wide range of industrial devices and equipment. The FI 810F module plays a crucial role in enabling communication between field devices and control systems, improving system efficiency and data transfer reliability in complex process environments.

The FI 810F module supports the FOUNDATION fieldbus protocol, widely used in process industries, enabling two-way communication between automation systems and field devices. By providing a reliable communication backbone, it enhances control and monitoring capabilities, enabling real-time data exchange, faster decision-making, and increased system uptime.

Product Parameters

Applications

The ABB FI 810F fieldbus module is highly versatile and is used across various industrial sectors to optimize field device communication and process control. Key applications include:

• Process Control: Integrates field devices such as transmitters, actuators, and sensors to the control system for accurate data collection and real-time process adjustments.

• Manufacturing: Used in automated production lines for controlling manufacturing processes, where real-time data exchange is critical for efficiency and quality assurance.

• Energy Management: Facilitates real-time monitoring of energy consumption and controls energy distribution, ensuring that systems operate within optimal parameters.

• Oil & Gas: Provides reliable communication for monitoring and controlling equipment in the field, such as pumps, valves, and compressors, critical in hazardous environments.

• Chemical & Pharmaceutical: Used for integrating process instrumentation and sensors in chemical and pharmaceutical industries to ensure compliance with stringent regulatory standards.

• Building Automation: Supports smart building systems for monitoring HVAC, lighting, and other systems using field devices that communicate via the FOUNDATION fieldbus protocol.

Advantages

• Reliable Communication: Supports the FOUNDATION fieldbus protocol, ensuring reliable and high-speed communication between field devices and control systems.

• Compact Design: The FI 810F module’s compact size makes it ideal for installations where space is limited, while still offering robust functionality.

• Wide Temperature Range: Capable of operating in environments ranging from -20°C to +60°C, the module is well-suited for diverse industrial conditions.

• Seamless Integration: Easily integrates with ABB’s automation systems, simplifying installation and providing a scalable solution for a wide range of industrial needs.

• Enhanced System Uptime: By providing real-time data exchange and reliable communication, the FI 810F helps minimize downtime, improving overall system availability.

• Energy-Efficient: With low power consumption, the module ensures efficient operation without impacting the system’s energy requirements.

• Certified Safety: The FI 810F is CE, UL, and CSA certified, ensuring that it meets the necessary industry standards for safety and performance.

FAQs

1. What is the fieldbus protocol used by the FI 810F module?

   The FI 810F supports the FOUNDATION fieldbus protocol, a widely used standard for process automation.

2. How many ports does the FI 810F module have?

   The module comes with 4 ports for field device connections.

3. What is the maximum communication speed of the FI 810F?

   The FI 810F module operates at a communication speed of 31.25 kbit/s.

4. What is the operating voltage for the FI 810F module?

   The FI 810F operates at 24 V DC.

5. Is the FI 810F suitable for use in extreme temperatures?

   Yes, the module operates in temperatures ranging from -20°C to +60°C, making it suitable for various industrial environments.

6. How is the FI 810F mounted?

   The module is designed for rail mounting, ensuring easy installation and maintenance.

7. What certifications does the FI 810F have?

   The FI 810F is CE, UL, and CSA certified, ensuring it meets international safety and quality standards.

8. What is the weight of the FI 810F module?

   The FI 810F module weighs 0.145 kg.

9. Can the FI 810F module be used in hazardous environments?

   While the FI 810F is suitable for industrial environments, specific hazardous location use would require checking additional certifications.

10. What is the purpose of the FI 810F module in automation systems?

    The FI 810F module enables seamless communication between field devices and the control system, improving process monitoring and control in real-time.
