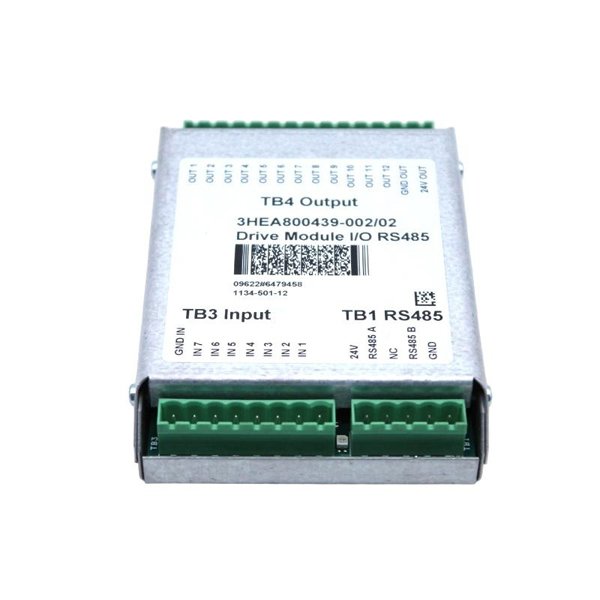

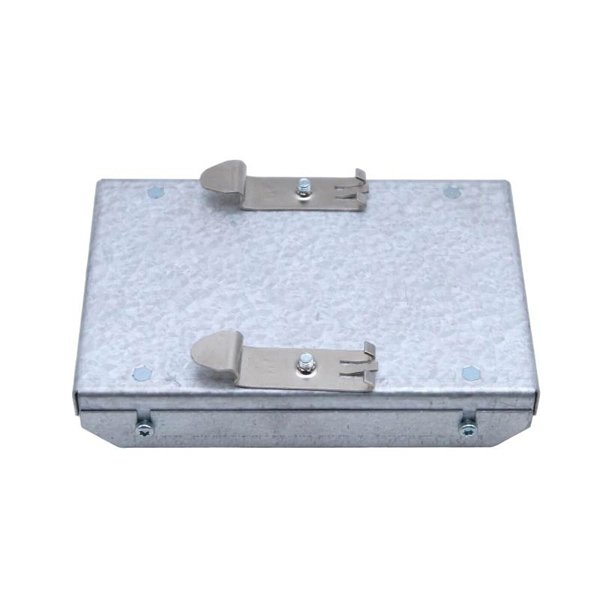

ABB RS485 3HEA800439-002 Drive Module

The ABB RS485 Drive Module (3HEA800439-002) is a communication interface designed to facilitate reliable data exchange between ABB drives and control systems. Utilizing the RS485 serial communication standard, this module ensures robust, noise-resistant communication over long distances, making it ideal for industrial environments where precise control and monitoring of drive systems are critical.

This drive module serves as a vital link within ABB’s automation architecture, enabling smooth integration of variable frequency drives (VFDs) and motor controllers with programmable logic controllers (PLCs), human-machine interfaces (HMIs), and other supervisory systems. Its compact and rugged design ensures dependable performance even in harsh industrial conditions.

The RS485 module simplifies system design by providing standardized communication, supporting various protocols, and allowing straightforward wiring configurations. It is an essential accessory for optimizing drive control and enhancing system flexibility in numerous applications.

Technical Specifications

Product Applications

The ABB RS485 Drive Module is widely used in various industrial settings, particularly where reliable serial communication with motor drives is essential:

• Industrial Automation

  Connecting VFDs to PLCs for motor speed and torque control in manufacturing lines.

• Building Management Systems

  Integration of HVAC drives for efficient climate control.

• Material Handling Systems

  Communication with conveyor drives and automated sorting machinery.

• Water and Wastewater Treatment

  Control of pump drives and aeration systems through supervisory systems.

• Energy Management

  Monitoring and controlling renewable energy systems and microgrids.

• Machine Tools

  Precise motor control in CNC machines and automated equipment.

Product Advantages

• Reliable Communication

  RS485 differential signaling ensures noise immunity and stable data transfer over long cable runs.

• Protocol Versatility

  Supports industry-standard Modbus RTU and ABB proprietary protocols, enhancing interoperability.

• Compact Design

  Small footprint fits easily into control cabinets, minimizing space requirements.

• Easy Installation

  Simple terminal block connections facilitate fast wiring and maintenance.

• Wide Operating Range

  Suitable for various industrial environments with a broad temperature range.

• Cost Effective

  Provides a robust communication solution without the complexity of more advanced fieldbuses.

Frequently Asked Questions (FAQ)

1. Q: What is the main function of the ABB RS485 3HEA800439-002 Drive Module?

   A: It acts as a communication interface to enable RS485 serial communication between ABB drives and control systems.

2. Q: What communication protocols does the module support?

   A: The module supports Modbus RTU and ABB-specific communication protocols.

3. Q: What is the maximum cable length supported?

   A: Up to approximately 1200 meters, depending on baud rate and cable type.

4. Q: What are the operating temperature limits?

   A: The module operates between -25°C and +60°C.

5. Q: How is the module powered?

   A: It typically receives power from the connected drive system, operating at 24 V DC.

6. Q: Can this module be used with non-ABB drives?

   A: While primarily designed for ABB drives, it may support other drives if compatible with RS485 and supported protocols.

7. Q: How is the module installed?

   A: It is mounted inside control panels and connected via terminal blocks for communication wiring.

8. Q: What certifications does the module have?

   A: It is certified for CE, RoHS, and UL standards.

9. Q: Does the module support multi-drop configurations?

   A: Yes, RS485 supports multi-drop wiring, allowing multiple devices on the same bus.

10. Q: What measures are recommended to ensure communication reliability?

    A: Use shielded twisted-pair cables, proper termination resistors, and maintain correct wiring practices.
