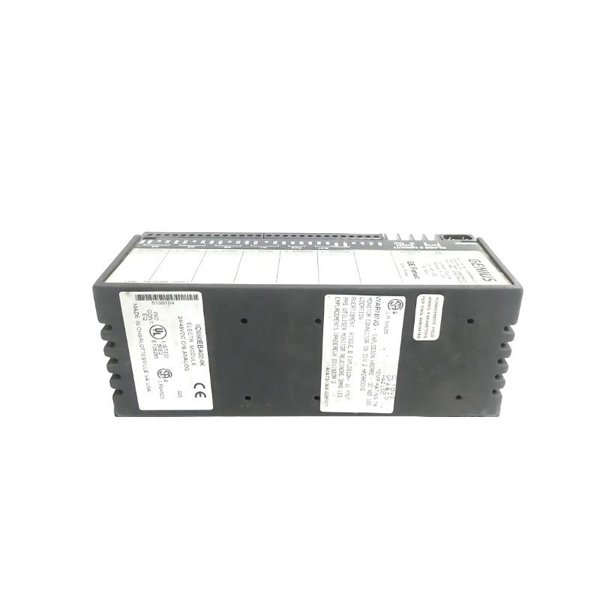

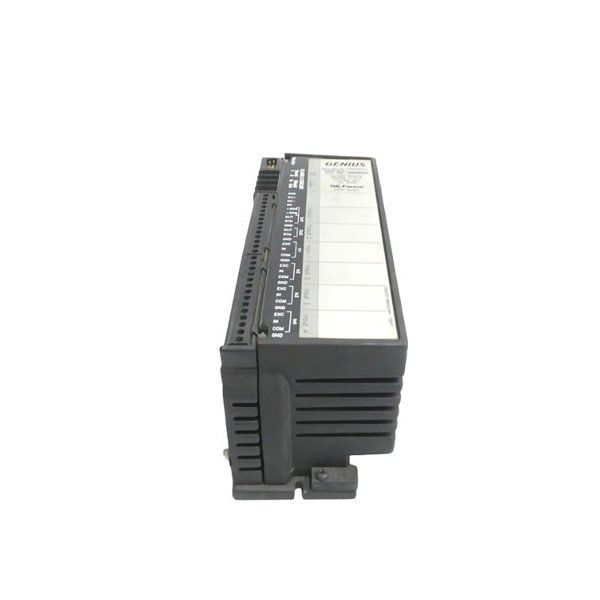

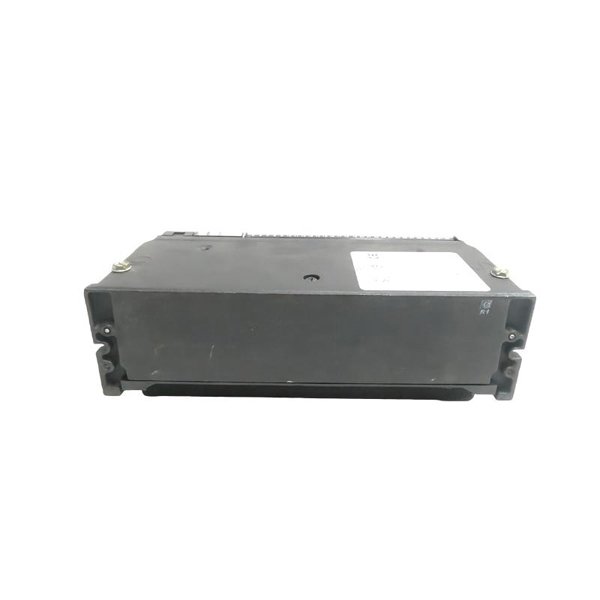

General Electric IC660TBA024 Terminal Assembly

The GE IC660TBA024 Terminal Assembly is a critical component of the Genius I/O system by General Electric (GE), designed to provide connectivity and ease of installation for I/O blocks within industrial automation environments. This assembly supports both discrete and analog I/O configurations and offers robust electrical interface capabilities between field wiring and control systems.

Used extensively in distributed I/O applications, the IC660TBA024 enables quick wiring, secure termination, and dependable operation, even in harsh industrial conditions. With GE’s renowned engineering behind it, this terminal assembly is well-suited for high-reliability systems in manufacturing, energy, and infrastructure sectors.

Technical Specifications

Product Applications

The IC660TBA024 terminal assembly is versatile and widely implemented in a variety of automation environments:

• Manufacturing Lines: Facilitates connection of sensors, switches, and actuators to distributed I/O modules.

• Energy and Utilities: Interfaces with monitoring and control devices in substations and control panels.

• Food and Beverage Industry: Used in hygienic process control systems where modular and reliable wiring is critical.

• Water and Wastewater Treatment: Provides field wiring connections for pumps, motors, and flow measurement devices.

• Petrochemical Plants: Links field instruments to explosion-proof I/O modules in hazardous environments.

• Material Handling Systems: Ensures smooth operation of conveyors, packaging machines, and sorting systems.

Its adaptability and rugged design make it an indispensable part of any Genius I/O architecture, enabling fast maintenance, reduced wiring errors, and safe, durable field connections.

Product Advantages

• Reliable Terminal Design: Equipped with 24 robust screw-type terminals for secure and lasting connections.

• Field-Friendly Configuration: Allows fast and simple wiring with clearly labeled terminals and pin identification.

• Modular Integration: Compatible with a wide range of GE Genius I/O blocks, making system upgrades and replacements straightforward.

• Industrial Durability: Resistant to temperature fluctuations, vibration, and humidity, making it ideal for tough environments.

• Simplified Maintenance: The plug-and-play design ensures that units can be easily removed or replaced without disturbing wiring.

• Compact Form Factor: Saves panel space while maintaining high terminal density.

• Time-Saving Installation: Reduces wiring complexity and supports error-free setup with standard GE wiring schemes.

• Global Certifications: Compliant with international safety and performance standards.

• Versatile Mounting Options: Can be mounted on DIN rails or panels, adapting to various enclosure designs.

• Long-Term Availability: Backed by GE’s support and consistent product availability, ideal for long-life systems.

Frequently Asked Questions (FAQ)

1. Q: What is the main function of the IC660TBA024 Terminal Assembly?

   A: It provides the wiring interface between field devices and GE Genius I/O blocks.

2. Q: How many terminals does it support?

   A: It offers 24 screw-type terminals for field wiring.

3. Q: Is this terminal assembly compatible with analog I/O modules?

   A: Yes, it can be used with both analog and discrete Genius I/O modules.

4. Q: Can I use this assembly in high-temperature environments?

   A: It operates reliably within 0°C to 60°C and can be stored in temperatures as low as -40°C.

5. Q: What kind of mounting does it support?

   A: It can be mounted on a DIN rail or panel for flexible installation.

6. Q: Does the product require special tools for installation?

   A: No, standard screwdrivers are sufficient for terminal connections.

7. Q: Is the IC660TBA024 replaceable without rewiring?

   A: Yes, it allows for non-intrusive replacement without disturbing the field wiring.

8. Q: What voltage levels are supported?

   A: Depending on the I/O block used, it can handle up to 250 VAC or 125 VDC.

9. Q: What certifications does this product carry?

   A: It is UL, CSA, and CE certified for international use.

10. Q: Can I use this assembly in a wet or dusty environment?

    A: While the unit is industrial-grade, it should be installed within a properly rated enclosure for such environments.
