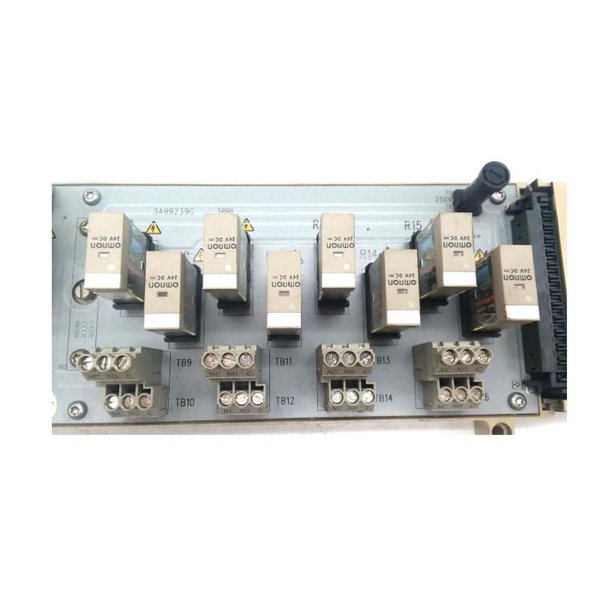

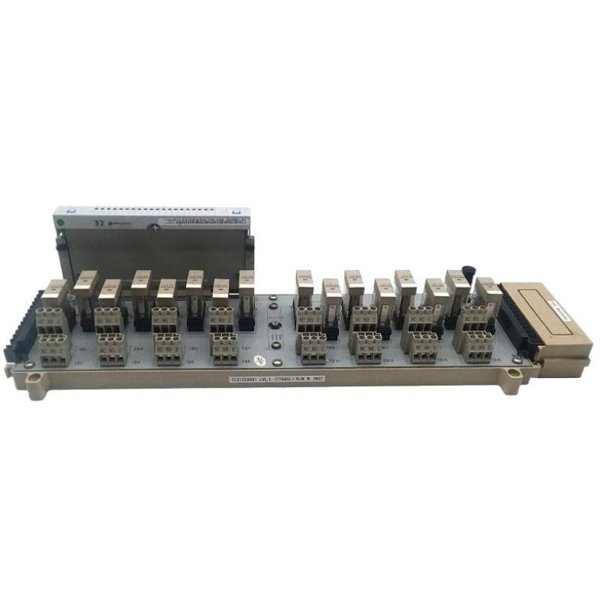

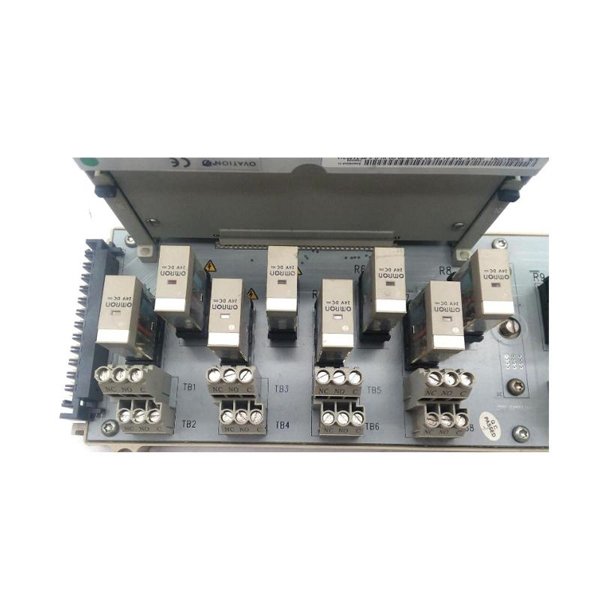

OVATION 1C31223G01 Relay output basic Module

The OVATION 1C31223G01 is a high-performance industrial control module designed for precision automation and process control applications. Manufactured by OVATION, a trusted name in industrial automation, this module is widely used in power generation, oil & gas, and manufacturing industries. It ensures reliable operation in harsh environments while providing advanced diagnostic and communication capabilities.

Product Parameters

Applications

The 1C31223G01 module is used in various industrial applications, including:

• Power Plants: For turbine control, boiler management, and grid synchronization.

• Oil & Gas: Monitoring and controlling pipelines, refineries, and offshore platforms.

• Manufacturing: Automation of assembly lines, robotics, and quality control systems.

• Water Treatment: Managing filtration, chemical dosing, and pump control.

• HVAC Systems: Optimizing large-scale heating, ventilation, and air conditioning networks.

Product Advantages

1. High Reliability: Built to withstand extreme temperatures and vibrations.

2. Advanced Diagnostics: Real-time fault detection reduces downtime.

3. Multi-Protocol Support: Compatible with Modbus, Ethernet, and legacy systems.

4. Compact Design: Space-saving form factor for easy integration.

5. Long Lifespan: Robust components ensure extended operational life.

6. Easy Maintenance: Modular design allows quick replacement.

Frequently Asked Questions (FAQ)

1. What is the operating voltage range of the 1C31223G01?

   The module operates at 24V DC (±10%).

2. Can this module be used in outdoor environments?

   No, it has an IP20 rating, meaning it’s designed for indoor use with limited moisture resistance.

3. What communication protocols are supported?

   It supports Ethernet, RS-485, and Modbus protocols.

4. Is the 1C31223G01 compatible with legacy OVATION systems?

   Yes, it is backward-compatible with older OVATION controllers.

5. What is the warranty period?

   The standard warranty is 1 years.

6. Does it require external cooling?

   No, it operates within its temperature range without additional cooling.

7. Can it be mounted vertically or horizontally?

   Yes, the module can be mounted in any orientation.

8. How do I troubleshoot communication errors?

   Check cable connections and ensure the correct protocol is selected in the configuration.

9. What is the expected lifespan?

   Under normal conditions, it lasts 5+ years.

10. Is the module certified for industrial compliance?

    Yes, it meets CE, UL, CSA, and RoHS standards.
