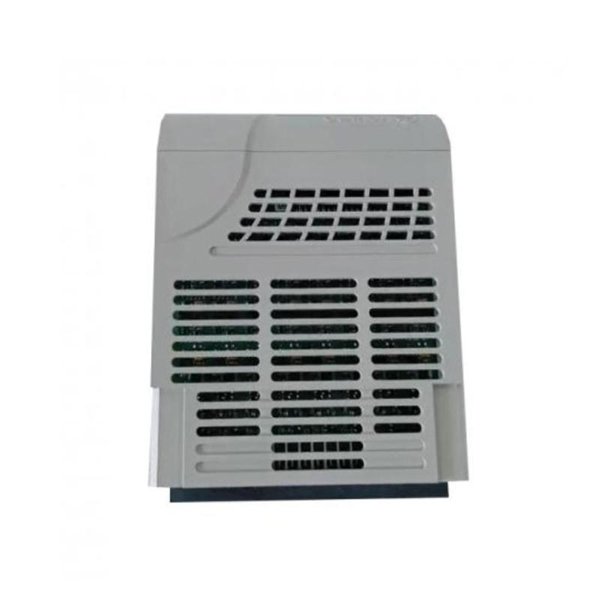

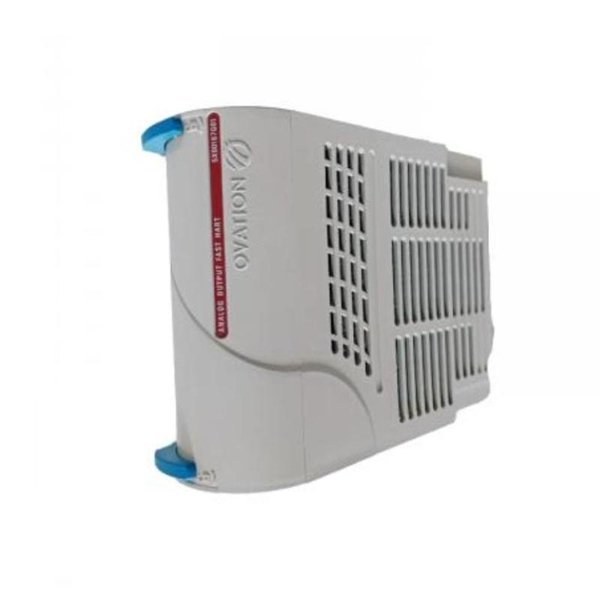

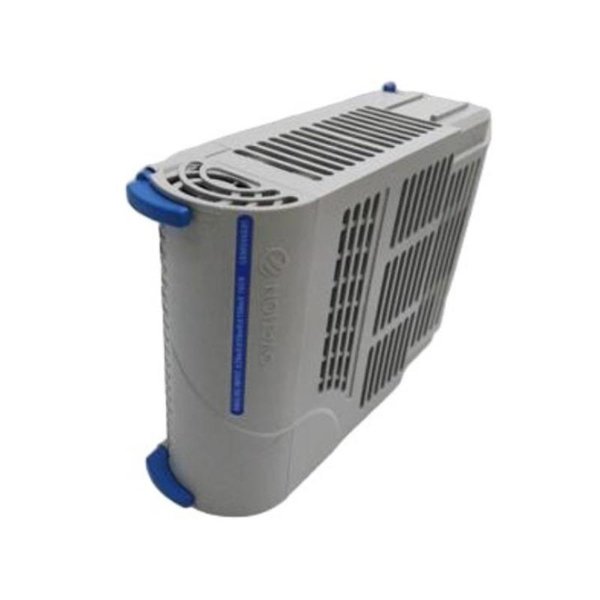

Ovation 5X00784G01 Analog Input Modules

The Ovation 5X00784G01 Analog Input Module is a high-performance I/O component designed for Emerson Ovation Distributed Control Systems (DCS). It provides precise and reliable measurement of analog signals including temperature, pressure, flow, and level, enabling accurate process monitoring and control. The module supports high-density analog inputs and integrates seamlessly with Ovation DCS systems, ensuring efficient data acquisition and system reliability.

Key Features

• High-density analog input channels for efficient signal acquisition

• Supports multiple signal types: mA, V, RTD, thermocouple

• Built-in diagnostics for real-time monitoring of system health

• Hot-swappable design for minimal maintenance interruptions

• Seamless integration with Ovation DCS systems

• Rugged construction for reliable performance in harsh industrial environments

Technical Specifications

Industry Applications

• Power Generation – thermal, nuclear, and renewable energy plants

• Oil & Gas – upstream production and refining process control

• Petrochemical & Chemical – continuous process automation

• Water & Wastewater Treatment – process variable measurement

• Industrial Manufacturing – high-precision analog input monitoring

• Other critical process industries requiring reliable and accurate analog inputs

Advantages

• Provides precise and reliable analog measurements

• Supports multiple input types and high-density channels

• Enhances predictive maintenance through built-in diagnostics

• Hot-swappable for minimal operational downtime

• Rugged design for harsh industrial environments

• Seamless integration with Ovation DCS systems

Frequently Asked Questions (FAQ)

Q1: What types of signals can this module handle?

It supports mA, V, RTD, and thermocouple analog inputs depending on configuration.

Q2: Is the module hot-swappable?

Yes, it can be installed or replaced without shutting down the system.

Q3: How many input channels does it provide?

It is a high-density analog input module supporting multiple channels.

Q4: Can it be used in safety-critical process applications?

Yes, it is designed for reliable operation in power generation, oil & gas, and other critical industries.

Q5: What diagnostic features are included?

It provides continuous self-diagnostics, channel status monitoring, and fault detection.

Q6: Is it compatible with all Ovation DCS controllers?

Yes, it integrates seamlessly with both legacy and modern Ovation controllers.

Q7: What are the environmental specifications?

Operating temperature: 0–60 °C, Storage temperature: -40–85 °C, Humidity: 5–95% non-condensing.

Q8: How does it improve system reliability?

By providing accurate analog measurements, real-time diagnostics, and hot-swappable operation, it reduces downtime and enhances process monitoring reliability.
