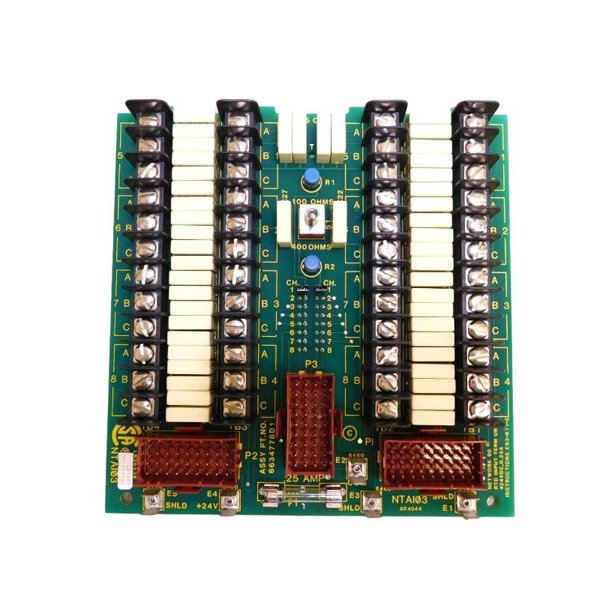

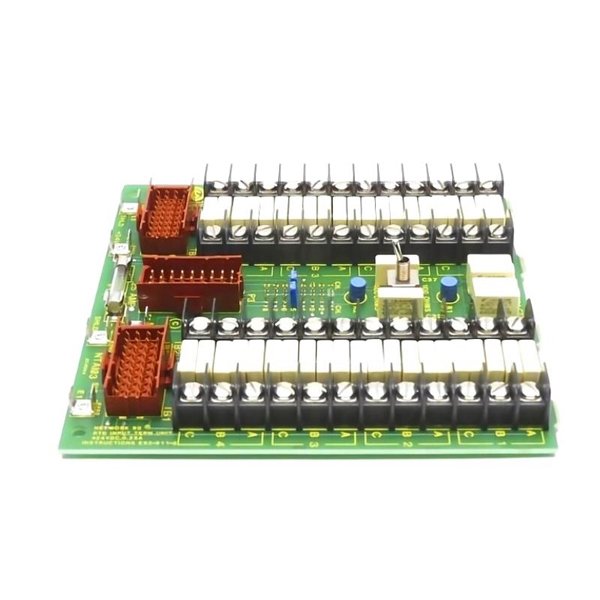

ABB Bailey NTAI03 Analog Input Termination Unit

The ABB Bailey NTAI03 Analog Input Termination Unit is a critical component for interfacing and managing analog input signals from industrial sensors and devices. This unit plays a key role in ABB’s automation systems by providing the necessary termination and signal conditioning for various analog signals, such as temperature, pressure, and flow measurements, that are essential for controlling and monitoring processes in industries like power generation, chemical manufacturing, oil & gas, and water treatment.

The NTAI03 unit is designed to provide accurate, noise-free signal termination, ensuring that data acquisition is precise and reliable for control systems. Its high versatility and ease of integration into ABB’s distributed control systems (DCS) make it ideal for applications requiring high-performance analog signal processing.

Product Specifications

Applications

• Power Generation: The NTAI03 is used in power plants to connect various sensors such as temperature and pressure transmitters, ensuring that critical power generation systems are monitored and controlled accurately.

• Oil & Gas Industry: It is used for signal conditioning and interfacing with field devices such as flow meters, level sensors, and pressure transmitters in oil rigs, refineries, and pipelines.

• Chemical Manufacturing: The unit helps in processing analog signals from various instruments that measure chemical reactions, flow, pressure, and temperature, ensuring the efficient operation of chemical plants.

• Water Treatment: The NTAI03 is employed to interface with sensors monitoring water quality, chemical dosing, and flow rates in water treatment plants, providing accurate data for process control.

• Manufacturing Automation: It supports the automation of production lines by interfacing with sensors that monitor equipment and product quality during manufacturing processes.

• HVAC Systems: The unit is used in HVAC applications to connect sensors that monitor temperature, humidity, and airflow, optimizing energy use and system performance in large commercial buildings.

Advantages

• High Channel Capacity: The NTAI03 offers 16 input channels, allowing multiple sensors to be connected simultaneously for real-time monitoring and control of large industrial systems.

• Wide Input Signal Compatibility: It supports a variety of analog signal types, including 4-20 mA, 0-10 V, and 0-5 V, making it versatile for different types of sensors and devices.

• Precise Signal Conditioning: The NTAI03 ensures that analog signals are conditioned and terminated properly, minimizing noise and ensuring accurate data acquisition for process control.

• Robust Build Quality: With an IP20 protection rating, the NTAI03 is designed for use in industrial environments, providing protection against dust and mechanical impact.

• Easy Installation and Maintenance: Designed for DIN rail mounting, the unit can be easily integrated into control panels and systems, saving space and simplifying installation.

• Wide Operating Temperature Range: The NTAI03 operates efficiently across a wide temperature range, from -20°C to +60°C, ensuring reliable performance even in harsh environments.

• International Certifications: The unit is UL and CE certified, meeting international safety standards and ensuring reliable operation in various global markets.

• Durable Connector Design: The use of screw terminal blocks ensures secure and stable connections with minimal risk of signal loss or disconnection.

Frequently Asked Questions (FAQ)

1. What is the main function of the NTAI03 Analog Input Termination Unit?

   The NTAI03 is designed to terminate and condition analog signals from industrial sensors before transmitting them to a control system for monitoring and processing.

2. How many input channels does the NTAI03 support?

   The NTAI03 supports up to 16 input channels, providing flexibility for handling multiple sensors simultaneously.

3. What types of analog input signals does the NTAI03 accept?

   The NTAI03 supports 4-20 mA, 0-10 V, and 0-5 V signals, making it compatible with a wide range of industrial sensors.

4. What is the weight of the NTAI03 unit?

   The NTAI03 weighs 0.476 kg.

5. How is the NTAI03 mounted?

   The unit is designed for DIN rail mounting, ensuring easy installation and integration into control cabinets.

6. What is the input impedance of the NTAI03?

   The unit has a 250 Ohm input impedance for current input signals (4-20 mA).

7. Is the NTAI03 suitable for outdoor use?

   No, the NTAI03 has an IP20 rating, meaning it is designed for indoor use only.

8. What is the operating temperature range for the NTAI03?

   The NTAI03 operates within a temperature range of -20°C to +60°C, making it suitable for a wide range of industrial environments.

9. What kind of protection does the NTAI03 offer?

   The NTAI03 is equipped with environmental protection rated IP20, safeguarding it from dust and mechanical impacts in indoor environments.

10. Is the NTAI03 compliant with international standards?

    Yes, the NTAI03 is UL and CE certified, ensuring compliance with industry safety standards.
