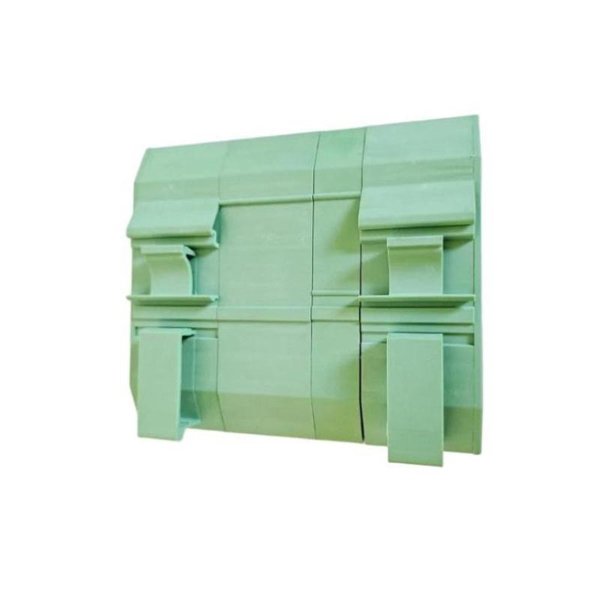

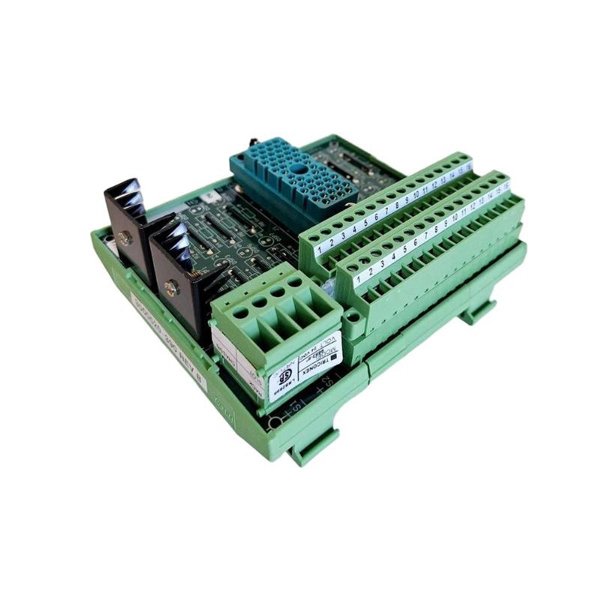

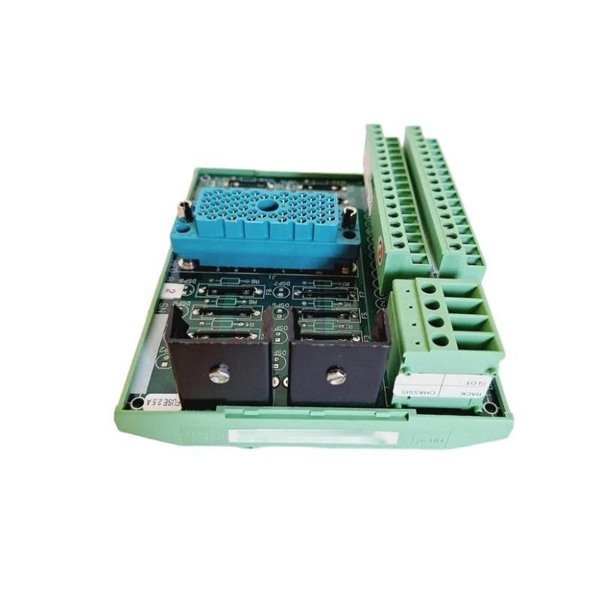

Triconex 7400165-510 Terminal Panel Modules

The Triconex 7400165-510 Terminal Panel Module is an essential accessory for the Triconex Safety Instrumented System (SIS), designed to provide secure and organized wiring terminations. This module facilitates efficient connection between field devices and Triconex controllers, supporting reliable signal transmission and simplifying system maintenance. Built to meet stringent safety standards, it is ideal for high-integrity industrial applications.

Key Features

• Organized terminal connections for Triconex SIS wiring

• Supports high-integrity safety system requirements

• Facilitates easy installation and maintenance

• Robust construction for industrial environments

• Compatible with Triconex 7000 series systems

• Complies with IEC 61508 and SIL 3 safety standards

Technical Specifications

Industry Applications

• Safety Instrumented System wiring and interfacing

• Process control in oil and gas industries

• Chemical and petrochemical manufacturing

• Power generation plants

• Heavy industry and manufacturing

• Water and wastewater treatment

Frequently Asked Questions (FAQ)

Q1: What is the main function of the 7400165-510 Terminal Panel Module?

It provides organized wiring terminations for Triconex SIS systems.

Q2: Is this module suitable for safety-critical applications?

Yes, it is SIL 3 certified and designed for high-integrity safety systems.

Q3: What are the operating temperature limits?

From -20°C to 70°C.

Q4: What type of terminals are used in this panel?

Screw or spring clamp terminals, depending on configuration.

Q5: Is this module compatible with Triconex 7000 series systems?

Yes, it is designed specifically for the Triconex 7000 series.

Q6: Does it simplify system maintenance?

Yes, it facilitates organized wiring and easier maintenance.

Q7: What are the dimensions of the module?

259mm × 160mm × 79 mm.

Q8: Does the module meet safety certifications?

Yes, it complies with IEC 61508 and SIL 3 standards.

Q9: Which industries typically use this terminal panel module?

Oil & gas, chemical, power generation, manufacturing, and water treatment.

Q10: How does this module contribute to system reliability?

By ensuring secure, well-organized wiring that reduces faults and improves signal integrity.
