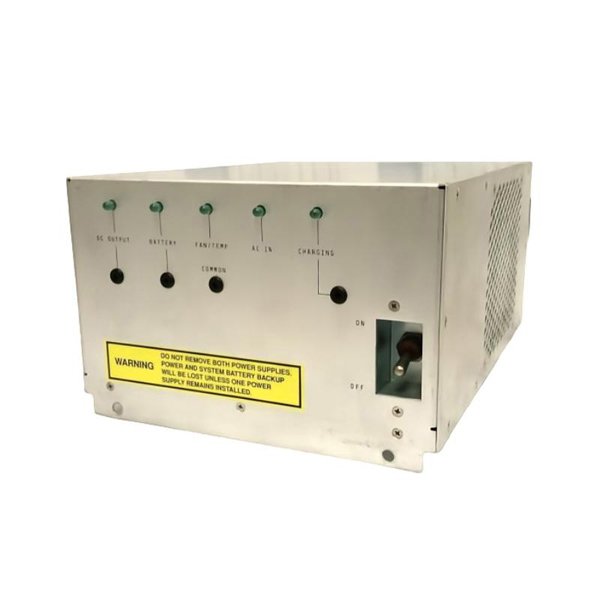

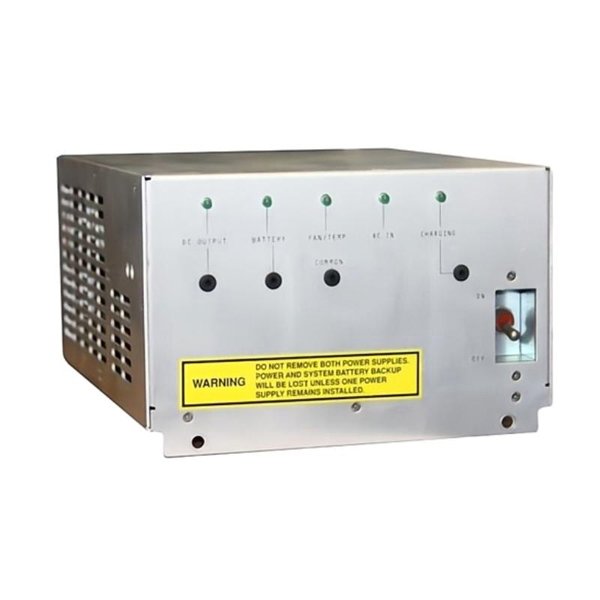

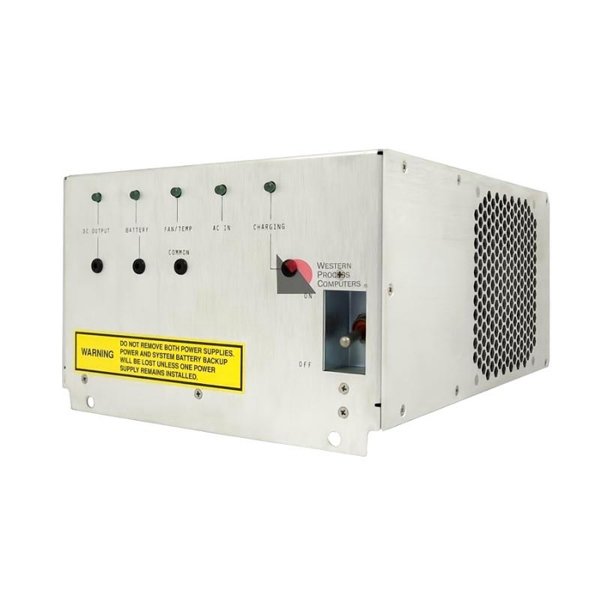

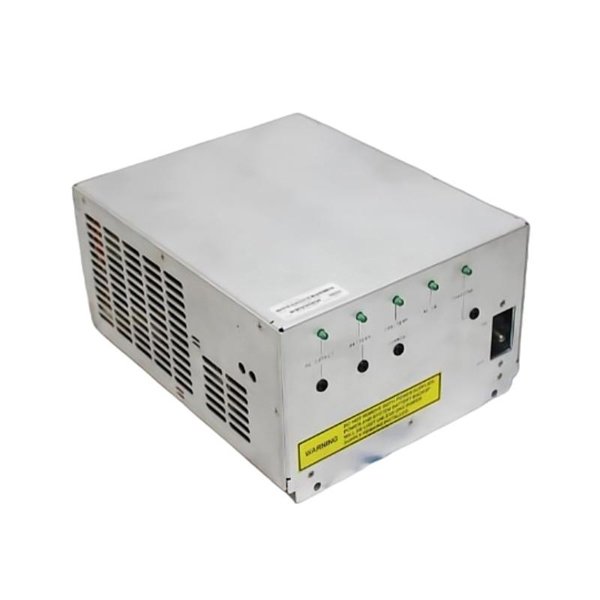

Honeywell 51198947-100 HPM Power Supply

The Honeywell 51198947-100 HPM Power Supply is a dedicated power module designed for use in Honeywell’s High-Performance Process Manager (HPM) systems, which are part of the PlantScape, TPS, and Experion PKS control platforms. This module delivers a stable and reliable DC power source to support HPM controllers and associated I/O modules. Designed with industrial-grade robustness, it ensures continuous, clean power delivery in critical automation environments.

This power supply module plays a vital role in maintaining the operational integrity of process automation systems by safeguarding them against voltage fluctuations, transients, and power interruptions. It is particularly valued for its high Mean Time Between Failures (MTBF), diagnostic features, and fault isolation mechanisms. The 51198947-100 is hot-swappable and can be installed or replaced without system downtime, making it ideal for 24/7 mission-critical operations.

Product Specifications

Product Applications

The 51198947-100 power supply is engineered for continuous-duty industrial applications where consistent and isolated power is vital for process control. Its use cases span across:

• Petrochemical and Refining Plants: Providing reliable power to HPM controllers monitoring pressure, flow, and safety systems.

• Power Generation: Supporting control units in turbine, boiler, and auxiliary system automation.

• Pharmaceutical Production: Enabling precise control logic in GMP-compliant process areas.

• Water and Wastewater Treatment: Powering I/O and control logic in distributed SCADA networks.

• Mining and Metals: Supporting rugged control installations for harsh, high-vibration environments.

• Food and Beverage: Maintaining uninterrupted power for production line instrumentation and control.

Product Advantages

• Redundant Power Support: Supports dual-redundant power configurations to ensure uninterrupted operation.

• Industrial-Grade Reliability: Built for harsh process environments with wide operating temperature tolerance.

• Hot-Swappable Design: Enables maintenance and replacement without shutting down the control system.

• High-Efficiency Operation:>85% efficiency minimizes heat output and energy loss.

• Built-In Protection: Equipped with advanced protections like overvoltage, overcurrent, and thermal cutoff.

• Status Monitoring: LED indicators provide immediate feedback on power and fault status.

• Compact and Modular: Space-efficient design suitable for system cabinets and tight enclosures.

• System Compatibility: Fully integrated with Honeywell HPM, TPS, and Experion platforms.

• Low Electromagnetic Emissions: Designed to meet industrial EMC standards.

• Long Operational Life: High MTBF, reducing frequency of maintenance or replacements.

FAQ

1. Can this power supply module operate in a redundant power configuration?

   Yes, it supports operation in active-passive redundant mode for continuous availability.

2. What is the nominal output voltage of the 51198947-100?

   The output voltage is a regulated 24 V DC under standard operating conditions.

3. Is the module hot-swappable while the system is powered?

   Yes, it is designed to be replaced or installed without powering down the system.

4. What protection mechanisms are integrated into the module?

   It includes protection for overvoltage, overcurrent, short circuits, and thermal shutdown.

5. Can the power supply support multiple HPM modules simultaneously?

   Yes, it is capable of powering multiple HPM modules depending on total load requirements.

6. How is the health of the power module monitored?

   Through onboard LED indicators and system-level diagnostics in the DCS environment.

7. Does the power supply require external cooling or ventilation?

   No, it uses passive convection cooling and does not require fans or external ventilation.

8. Is this power supply certified for use in regulated industries?

   Yes, it meets CE, UL, CSA, and RoHS compliance standards.

9. Can the power supply tolerate voltage spikes or transients?

   Yes, the module includes built-in surge suppression and filtering capabilities.

10. Is there any software tool needed for configuration or commissioning?

    No software is required; it operates as a plug-and-play component within the HPM chassis.
