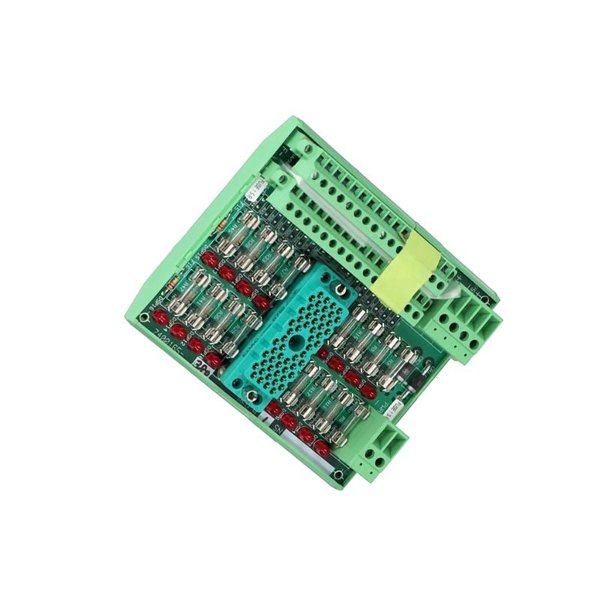

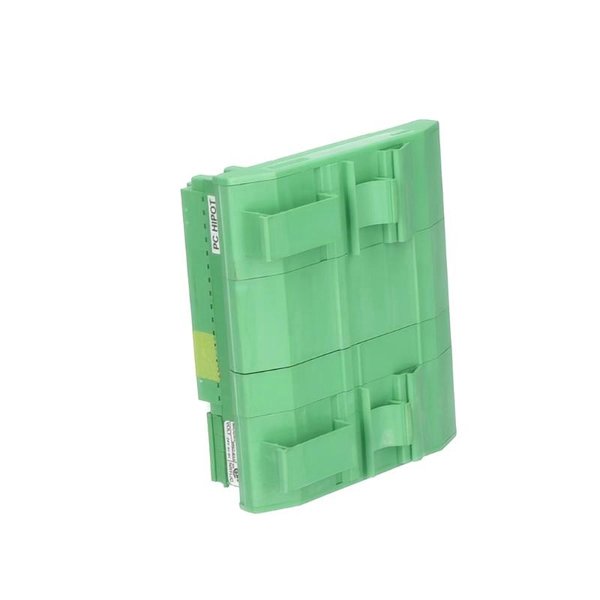

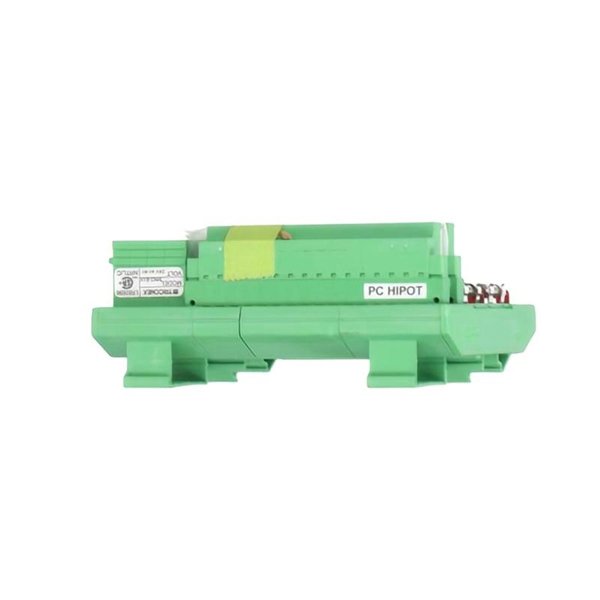

Triconex 9563-8XX Digital Input Termination Panel

The Triconex 9563-8XX Digital Input Termination Panel is a critical interface module designed to connect field digital input signals to Triconex safety systems. It serves as the termination point where multiple digital input channels from sensors and field devices are wired into the safety controller infrastructure.

Built to meet the high-reliability demands of safety-critical environments, the 9563-8XX panel supports clean and organized wiring, secure terminations, and diagnostic capability. Its modular design complements the Triconex family, ensuring seamless integration within safety instrumented systems (SIS) across diverse industrial sectors.

Product Specifications

Product Applications

• Safety Instrumented Systems: Acts as the digital input termination point for safety-critical signals from emergency stop buttons, safety sensors, and switches.

• Process Control: Used in chemical, oil & gas, and power plants where reliable signal acquisition is vital.

• Fire & Gas Systems: Interfaces discrete alarm inputs and sensor status signals into safety controllers.

• Industrial Automation: Supports integration of safety-rated digital inputs for automated machinery shutdowns.

• Emergency Shutdown Systems: Provides robust field wiring termination for emergency signal inputs.

• Power Generation: Connects turbine and generator safety signals to the Triconex control network.

Product Advantages

• Reliable Signal Termination: Designed to minimize wiring errors and maintain signal integrity under harsh industrial conditions.

• Safety Compliance: SIL 3 certified for use in the highest safety integrity level applications.

• Easy Installation: Screw clamp terminals and modular layout enable straightforward wiring and quick maintenance.

• Vibration Resistant: Secure mechanical connections ensure stable performance even in vibration-prone environments.

• Compact Design: Optimized panel size to fit control cabinets without sacrificing accessibility.

• Durable Materials: Flame-retardant housing and corrosion-resistant terminals extend product life.

• Clear Terminal Markings: Facilitates accurate wiring and simplifies troubleshooting during system maintenance.

• Flexible Mounting: Compatible with both DIN rail and panel mounting systems.

• Diagnostic Friendly: Supports system diagnostics by providing a centralized point for input wiring.

Frequently Asked Questions (FAQ)

1. What types of signals does the 9563-8XX panel accept?

   It accepts discrete digital input signals typically from sensors, switches, and safety devices operating at 24 V DC.

2. How many digital inputs can be connected to one panel?

   Depending on the exact model variant, it supports either 8 or 16 digital input channels.

3. Is this panel compatible with all Triconex controllers?

   Yes, it is fully compatible with Triconex safety logic solvers and controllers.

4. What are the environmental operating limits?

   The panel operates reliably between -20°C and +70°C and can tolerate humidity from 5% to 95% non-condensing.

5. Can the panel be mounted on a DIN rail?

   Yes, it supports both DIN rail and panel mounting options.

6. What is the current rating per input channel?

   Each input channel is rated to handle currents up to approximately 0.5 A.

7. Is the panel certified for safety standards?

   Yes, it holds SIL 3 certification and complies with international safety standards like CE and UL.

8. How are the terminals secured?

   The panel uses screw clamp terminals designed to resist vibration and maintain reliable connections.

9. What materials ensure the panel’s durability?

   The housing is constructed from flame-retardant plastic, and terminals are made from corrosion-resistant metal alloys.

10. Can the panel be used in hazardous or explosive atmospheres?

    While the panel itself is rugged, its suitability for hazardous areas depends on the overall system and enclosure certifications; consult safety documentation for your specific application.
