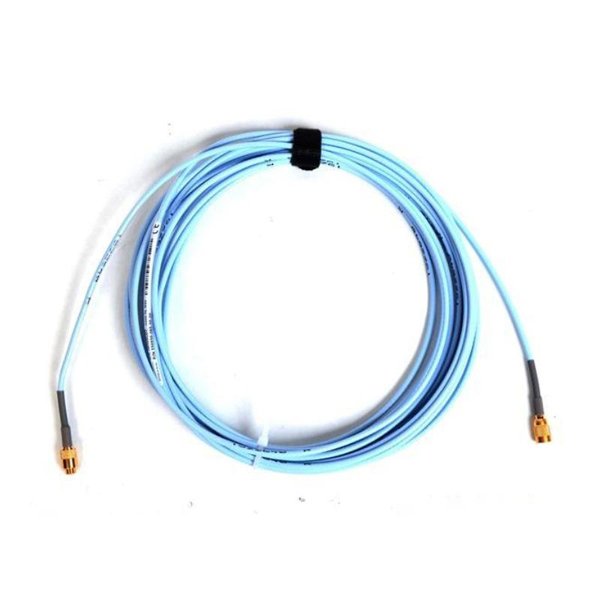

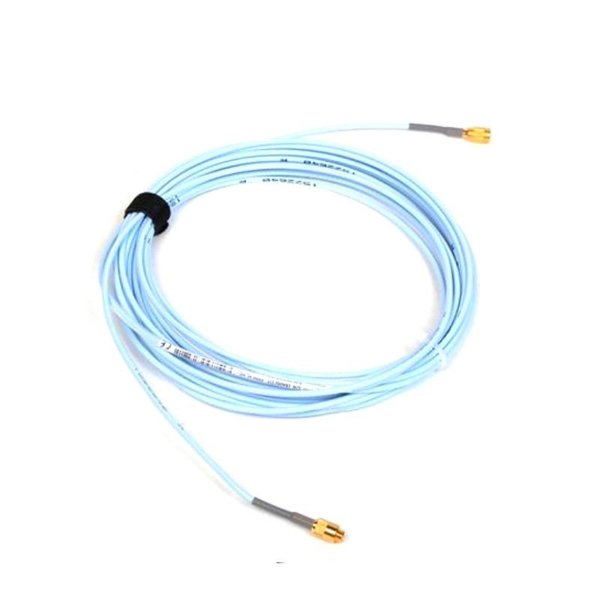

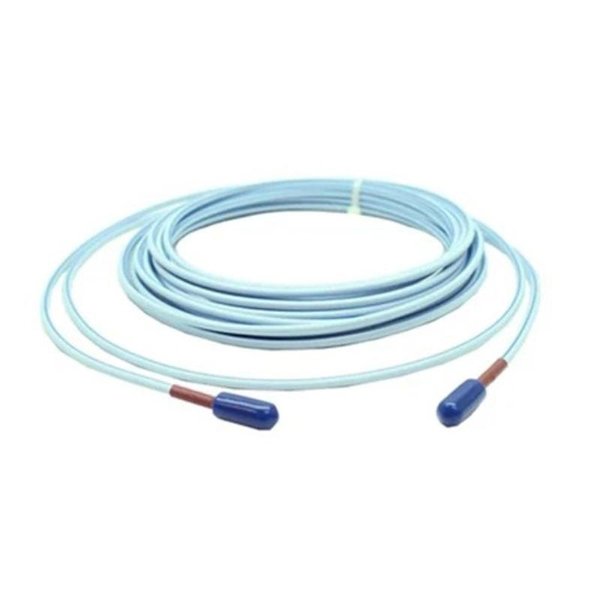

Bently Nevada 330930-065-00-00 3300 XL Standard Extension Cable

The Bently Nevada 330930-065-00-00 is a 3300 XL NSv standard extension cable, designed for use with the 3300 XL NSv Proximity Transducer System. It connects the NSv probe to the Proximitor Sensor and is optimized for compact machinery such as small centrifugal compressors and gearboxes where space is limited. This model provides a total cable length of 6.5 meters, enabling flexible installation even in challenging environments.

Applications

• Small-shaft radial vibration monitoring

• Axial (thrust) position measurement

• Keyphasor (phase reference) signal transmission

• Low-clearance compressor or turbine installations

• High-density or DIN-rail-mounted systems

• Tight-fit retrofit upgrades from older RAM or 190 series systems

Advantages

• Compact design suitable for constrained spaces

• High durability with gold-plated ClickLoc connectors and optional armor

• Excellent electrical integrity with low resistance and capacitance

• Mechanical and electrical compatibility with 3300 RAM systems

• Secure connection via patented CableLoc technology

• Resistance to harsh environments, thanks to FEP-insulated coaxial cable

Technical Specifications

FAQ

Q1: What systems is the 330930-065-00-00 cable compatible with?

A1: It is compatible with the Bently Nevada 3300 XL NSv Proximity Transducer System.

Q2: Can I use this extension cable with a 3300 RAM probe?

A2: Yes, it is mechanically and electrically compatible with RAM probes.

Q3: Does this cable come armored?

A3: The -00-00 variant does not have armor. Armored options are available under other part codes.

Q4: What is the recommended minimum bend radius for the cable?

A4: 25.4 mm (1.0 inch), regardless of whether armor is present.

Q5: Is this cable suitable for high-temperature environments?

A5: Yes, it supports operating temperatures from -52°C to +177°C.

Q6: What is the total system length supported with this cable?

A6: When combined with a matching probe length, it supports up to a 7-meter total system.

Q7: Is the connector protected against corrosion?

A7: Yes, it uses gold-plated brass connectors for corrosion resistance.

Q8: Does it come with connector protection accessories?

A8: No, but connector protectors can be ordered separately.

Q9: What insulation does the cable use?

A9: It uses fluoroethylene propylene (FEP) for excellent chemical and thermal resistance.

Q10: Is the cable certified for hazardous locations?

A10: Yes, it has multiple international approvals when used within the certified transducer system.
