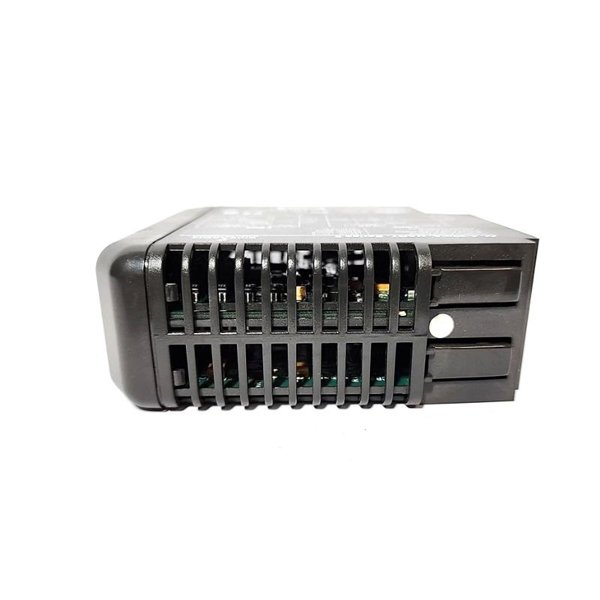

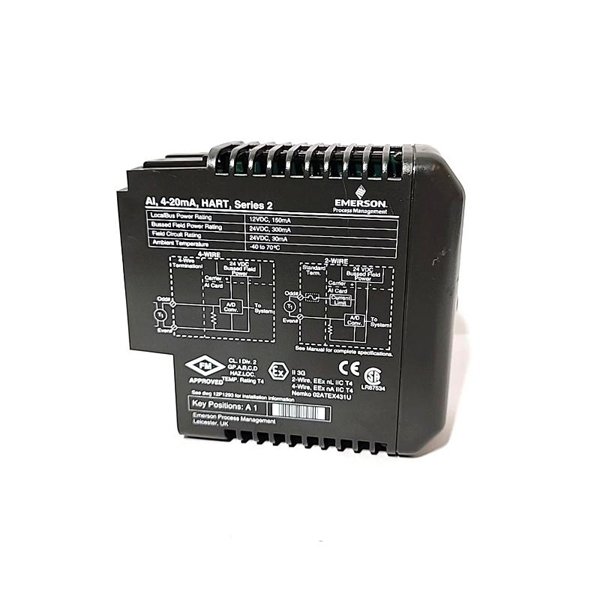

Emerson VE4033S2B1 DeltaV Redundant Analog Input Card
Manufacturer:Emerson
Product Number:VE4033S2B1
Product Type:DeltaV Redundant Analog Input Card
Origin:USA
Dimensions:107 x 41 x 105 mm
Weight:0.3 kg
Views:117
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Emerson VE4033S2B1 is a redundant 8-channel analog input card designed for the DeltaV™ M-series system. It supports 4–20 mA HART signals and is engineered to ensure high availability and safety in critical process applications. Its plug-and-play design, terminal block keying, and support for HART communication make it a robust solution for distributed control systems.
Key Features
-
8 channels of 4–20 mA HART input
-
Full redundancy for increased reliability
-
Plug-and-play module with keyed terminal block
-
Supports online addition and replacement
-
HART pass-through communication
-
Integrated power and diagnostics indicators
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | VE4033S2B1 |
| Channels | 8 (analog input) |
| Input Signal Range | 4 to 20 mA (nominal), 1 to 22.5 mA (full) |
| Resolution | 16-bit A/D converter |
| Accuracy | ±0.1% of span |
| Repeatability | ±0.05% of span |
| Isolation | 1500V DC, optically isolated |
| Calibration | None required |
| HART Support | Yes, with pass-through and status reporting |
| Power Consumption | 175 mA (typical), 250 mA (max) per card |
| Field Circuit Power | 300 mA max @ 24V DC |
| Dimensions (H x W x D) | 107 × 41 × 105 mm |
| Weight | 0.3 kg |
| Operating Temperature | -40 to 70°C |
| Storage Temperature | -40 to 85°C |
| Protection Rating | IP20 |
| Certifications | CE, FM, CSA, ATEX, IEC-Ex, Marine (IACS) |
Applications
-
Chemical and petrochemical industries
-
Power generation plants
-
Water and wastewater treatment
-
Oil and gas processing facilities
-
Pharmaceutical manufacturing
-
Food and beverage automation
Advantages
-
Enables high system availability through full card redundancy
-
Simple installation with keyed terminal blocks and plug-in design
-
Reduces wiring and installation costs via field-mountable architecture
-
Seamless integration with DeltaV system for diagnostics and commissioning
-
Supports phased installation and future expansion without downtime
FAQs
Q1: How many analog input channels does VE4033S2B1 support?
A1: It supports 8 analog input channels.
Q2: Is VE4033S2B1 compatible with HART devices?
A2: Yes, it supports HART pass-through for AMS Device Manager and variable/status reporting.
Q3: Can this card be replaced while the system is running?
A3: Yes, in safe areas, it can be hot-swapped without system shutdown.
Q4: What kind of redundancy is provided?
A4: It offers 1:1 redundancy with automatic switchover in case of primary card failure.
Q5: Does the card require calibration?
A5: No calibration is required; it is factory calibrated.
Q6: What kind of isolation does it offer?
A6: Each channel is optically isolated and factory tested to 1500V DC.
Q7: What DeltaV software version is required?
A7: It is supported from DeltaV version 10.3.1 and later.
Q8: Can I pre-wire the terminal block before installing the card?
A8: Yes, the design supports pre-wiring for faster setup.
Q9: What protection rating does the card have?
A9: The card is rated IP20.
Q10: How is a switchover between redundant cards detected?
A10: The system automatically logs and notifies any switchover events via diagnostics.
