General Electric IC693ALG223 Analog Input Module

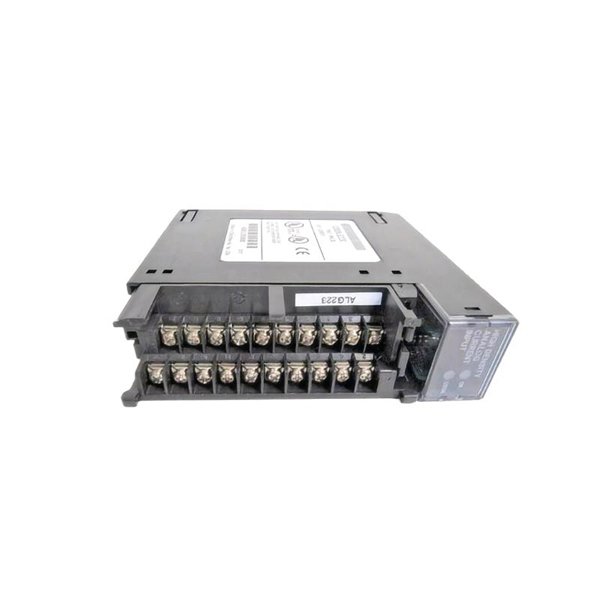

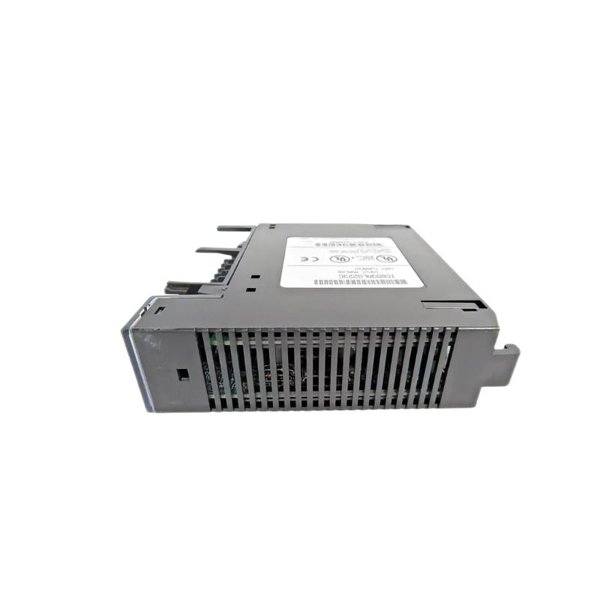

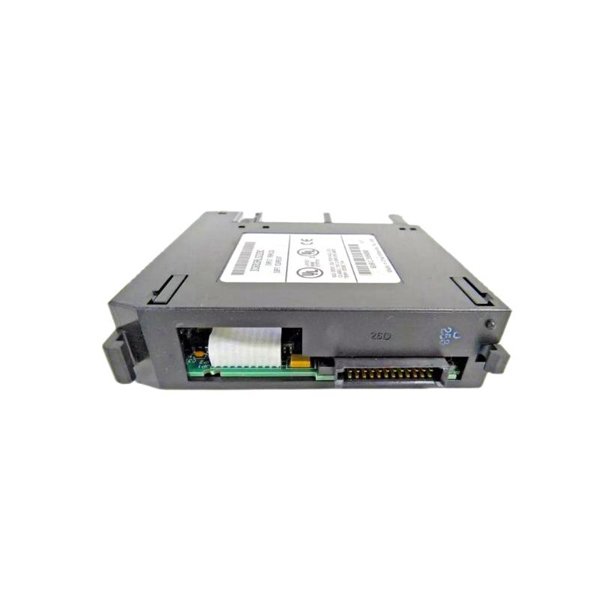

The GE IC693ALG223 Analog Input Module is a high-performance analog I/O component engineered for the GE Fanuc Series 90-30 PLC system. This module is specifically designed to handle analog signals from various field devices such as pressure transducers, temperature sensors, and flow meters, converting them into precise digital values for process monitoring and control.

The IC693ALG223 module provides four high-resolution differential input channels that support both current and voltage inputs. Its versatility and reliability make it a preferred choice for process control applications in industries like manufacturing, utilities, water treatment, and energy. The module’s compact design and ease of integration make it suitable for both centralized and distributed control architectures.

Product Specifications

Product Applications

The GE IC693ALG223 module is widely deployed across industrial sectors due to its ability to handle accurate and stable analog measurements. Common application scenarios include:

• Manufacturing Automation: Used to monitor sensor signals such as temperature, humidity, and machine position.

• Water and Wastewater Treatment: Interfaces with flow meters, level sensors, and pH analyzers.

• HVAC and Building Management Systems: Collects analog feedback from environmental sensors.

• Food and Beverage Processing: Monitors process variables for consistent product quality.

• Energy and Utilities: Captures pressure, temperature, or current from energy infrastructure.

• Pulp and Paper Industry: Gathers moisture level and chemical dosing feedback.

Product Advantages

• Dual Input Support: Accepts both voltage and current signals, enhancing flexibility in system design.

• High Signal Accuracy: 12-bit resolution provides precise analog-to-digital conversion.

• Factory Calibrated: Pre-calibrated for plug-and-play use, reducing setup time.

• Compact Design: Saves space in crowded control panels with a narrow profile.

• Easy Integration: Seamlessly interfaces with Series 90-30 PLCs and supported software.

• Field-Proven Reliability: Designed for industrial-grade performance in harsh conditions.

• Robust Isolation: Provides safe signal processing with electrical isolation from the CPU.

• Real-Time Conversion: Fast update rate ensures responsive analog data acquisition.

• Error Handling: Built-in diagnostics enable rapid fault detection and system troubleshooting.

Frequently Asked Questions (FAQ)

1. Q: How many input channels does the IC693ALG223 module provide?

   A: It provides 4 differential analog input channels.

2. Q: What types of analog signals are supported?

   A: The module supports 0–10V voltage signals and 4–20mA current signals.

3. Q: Is the IC693ALG223 compatible with other PLC models?

   A: It is specifically designed for use with GE Fanuc Series 90-30 PLCs.

4. Q: Is calibration required before use?

   A: No, the module comes factory-calibrated and is ready for immediate installation.

5. Q: Does the module provide isolation between channels?

   A: No, channels are not isolated from each other, but they are isolated from the logic side.

6. Q: What is the resolution of the analog-to-digital conversion?

   A: It offers 12-bit resolution.

7. Q: Can the module be used in hazardous locations?

   A: Yes, it is certified for use in Class I Div 2 Groups A, B, C, D environments.

8. Q: What’s the input impedance for current and voltage signals?

   A: For current, it’s 250 Ohms; for voltage, it is greater than 100k Ohms.

9. Q: What is the update rate of the module?

   A: The update rate is 5 milliseconds per channel.

10. Q: What’s the power requirement for the module?

    A: It consumes about 110 mA at 5V DC.
