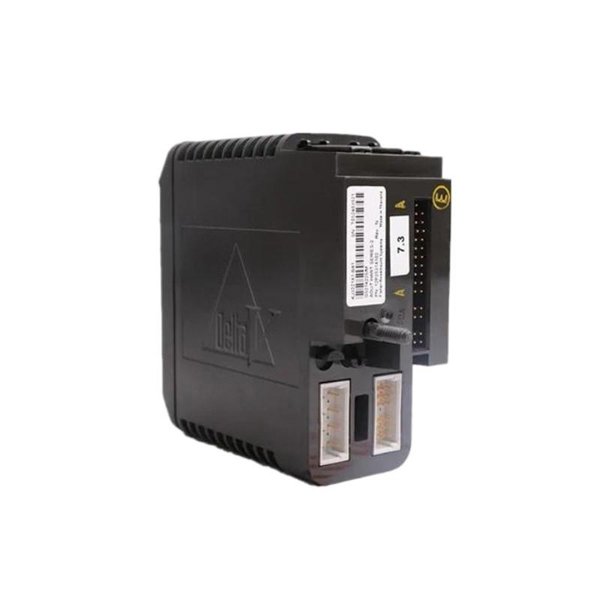

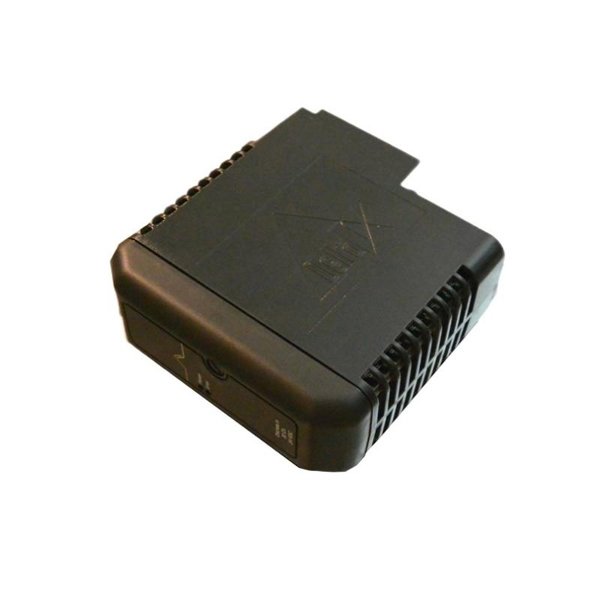

Emerson KJ3001X1-CA1 Discrete Input Modules

The Emerson KJ3001X1-CA1 Discrete Input Module is an integral component of the DeltaV™ Distributed Control System, engineered for robust digital signal acquisition. Designed to interface directly with on/off field devices such as switches, push-buttons, and relays, the module ensures reliable performance in critical industrial environments. With hot-swappable functionality and channel-level diagnostics, it enhances maintainability and system uptime while offering seamless integration into the DeltaV platform.

Key Features

• 16-channel discrete input module

• Supports NAMUR and dry contact-type inputs

• Hot-swappable design for non-disruptive maintenance

• Integrated diagnostics for channel health monitoring

• Optical isolation between field and system electronics

• LED indicators for input status visibility

• Easy installation on DeltaV carriers or baseplates

• Compatible with a wide range of field devices

Technical Specifications

Industry Applications

• Oil & Gas Processing

• Power Generation

• Water & Wastewater Treatment

• Chemical & Petrochemical Plants

• Pharmaceutical Manufacturing

• Food & Beverage Industry

• Pulp & Paper Mills

Product Advantages

• Reliable performance in harsh industrial conditions

• Modular, compact form factor ideal for tight installations

• Diagnostic capabilities reduce troubleshooting time

• Supports both NAMUR and dry contact input types

• Enhances DeltaV system flexibility and control accuracy

• Easy integration and maintenance

Frequently Asked Questions (FAQ)

1. What types of inputs does the KJ3001X1-CA1 support?

   It supports both NAMUR-type sensors and dry contact inputs.

2. How many channels are available on this module?

   The module provides 16 discrete input channels.

3. Is the module hot-swappable?

   Yes, it can be replaced without interrupting system operation.

4. Does it include diagnostic features?

   Yes, channel-level diagnostics and fault detection are included.

5. How is the module mounted?

   It mounts on a DeltaV I/O carrier or baseplate.

6. Can it be used in safety-critical applications?

   It’s suitable for many critical applications, though safety system use depends on certification needs.

7. Is there LED status indication for each input?

   Yes, each channel has an LED for input state indication.

8. What is the isolation method used?

   Optical isolation is provided between the field and the system.

9. Is it compatible with older DeltaV systems?

   Yes, it is compatible with standard DeltaV installations.

10. What is the typical input current for NAMUR sensors?

    Approximately 1.2 mA per channel.
