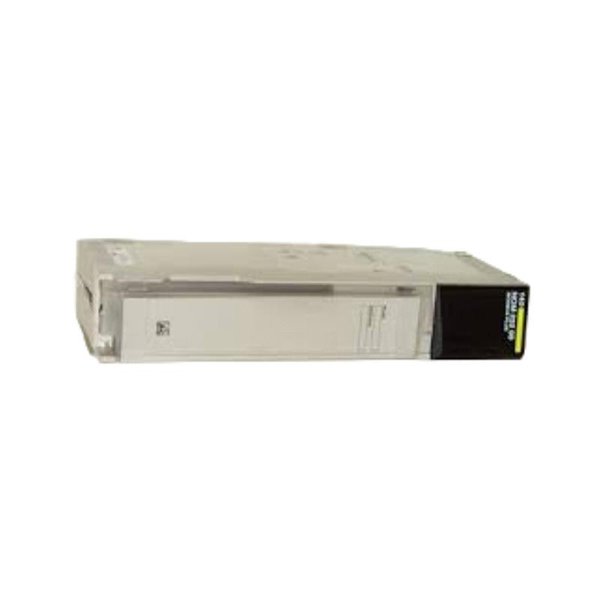

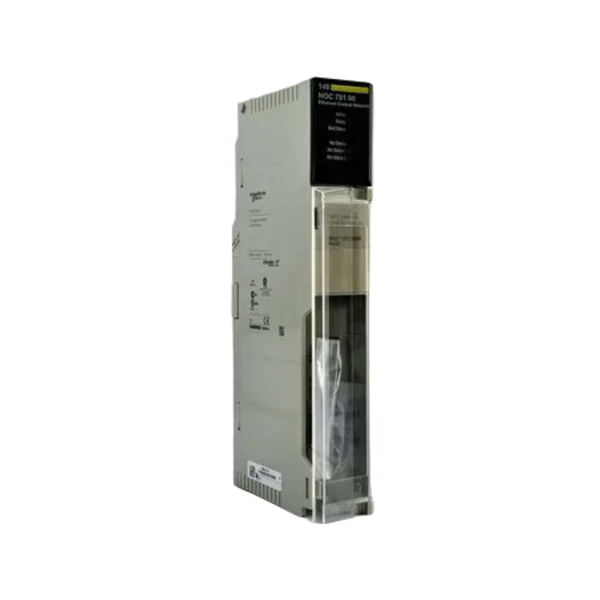

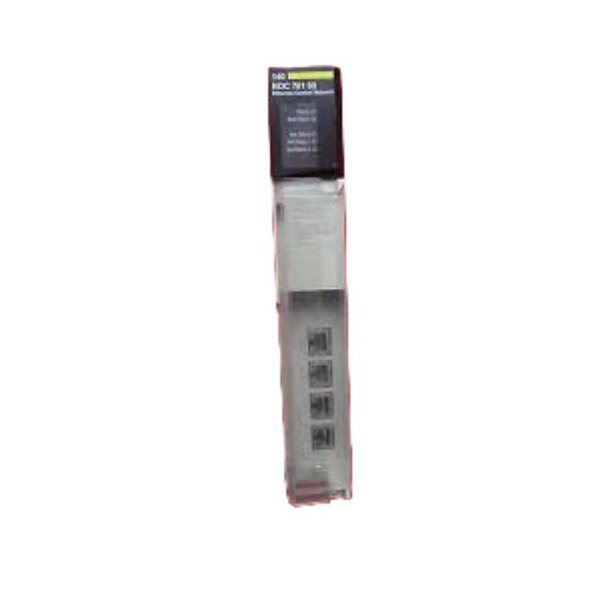

Schneider 140NOC78100C Ethernet Control Network Module

The Schneider 140NOC78100C is a high-performance, modular controller designed for industrial automation systems. It is part of Schneider Electric’s Modicon family of programmable logic controllers (PLCs), which are well-known for their robustness and reliability. This controller is used to manage, monitor, and control a wide variety of processes in industrial environments.

With its ability to integrate with other Schneider devices, the 140NOC78100C is optimized for use in process industries, manufacturing, and other complex automated systems that require high-speed and accurate control. It is known for its ease of installation, high processing power, and support for a wide range of communication protocols.

Technical Specifications

Product Advantages

• High Performance: The 140NOC78100C offers fast processing speeds, ensuring efficient handling of even the most complex control tasks.

• Modular Design: Its modular structure allows for easy customization and expansion to suit various industrial needs.

• Wide Compatibility: Compatible with a broad range of Schneider Electric equipment and software tools.

• Reliable Communication: Multiple communication options (Ethernet, RS232, USB) enable seamless integration with other devices and systems.

• Flexible Power Options: Can operate on a 24V DC supply, ensuring versatility in different industrial environments.

• Durable Construction: Built to withstand harsh industrial conditions, including a wide temperature range.

Applications

The Schneider 140NOC78100C is ideal for various applications, including but not limited to:

• Industrial Automation: Ideal for controlling complex manufacturing processes, robotics, and other automated machinery.

• Building Management: Suitable for HVAC, lighting control, and other building management systems.

• Energy Management: Used in managing power systems and optimizing energy consumption in industrial plants.

• Water Treatment: Efficient for controlling systems in water treatment plants, including pumps and filtration units.

• Packaging and Conveyors: Frequently used in automated packaging lines and conveyor systems.

• Oil & Gas: Plays a critical role in controlling machinery and safety systems in the oil and gas industry.

Frequently Asked Questions (FAQ)

Q1: What is the operating temperature range of the Schneider 140NOC78100C?

A1: The operating temperature range of the 140NOC78100C is between -20°C to 60°C.

Q2: How many I/O channels does the 140NOC78100C support?

A2: The 140NOC78100C supports 8 input and 8 output channels.

Q3: Can the 140NOC78100C be mounted on a wall?

A3: The controller is designed for DIN Rail mounting and not for direct wall mounting.

Q4: Does the 140NOC78100C support Ethernet communication?

A4: Yes, the device has 2 Ethernet ports for reliable network communication.

Q5: What type of power supply does the Schneider 140NOC78100C require?

A5: The 140NOC78100C operates with a 24 V DC power supply.

Q6: Is the Schneider 140NOC78100C compatible with other Schneider Electric PLCs?

A6: Yes, it is highly compatible with other Schneider Electric PLCs and automation devices, making integration easier.

Q7: Can this product be used in outdoor environments?

A7: The 140NOC78100C is designed for indoor use only, with its operational limits for temperature and humidity.

Q8: How can I program the 140NOC78100C?

A8: Programming is done using Schneider Electric’s EcoStruxure Control Expert software, which provides an intuitive interface for developing control strategies.

Q9: What are the expansion capabilities of the Schneider 140NOC78100C?

A9: The controller can be expanded with additional I/O modules and communication adapters for greater flexibility.

Q10: How durable is the Schneider 140NOC78100C in harsh industrial conditions?

A10: The 140NOC78100C is built to withstand harsh conditions, with a wide operating temperature range and a durable construction for industrial environments.
