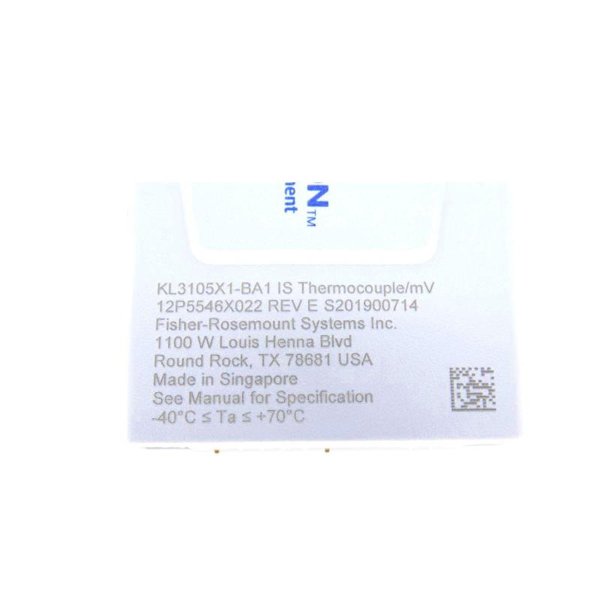

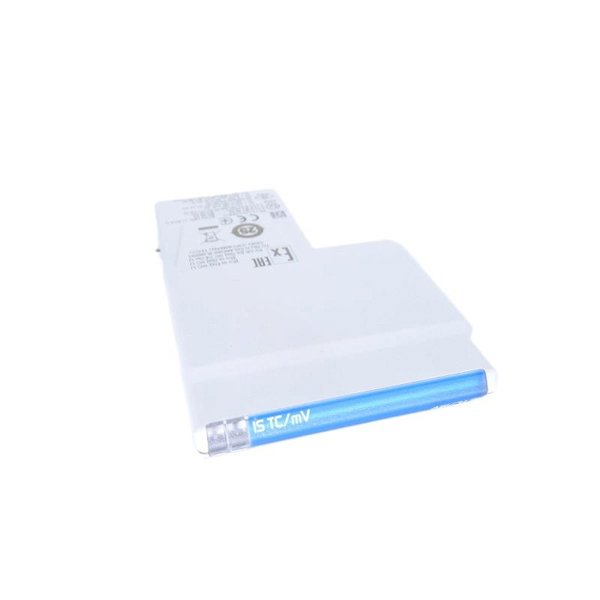

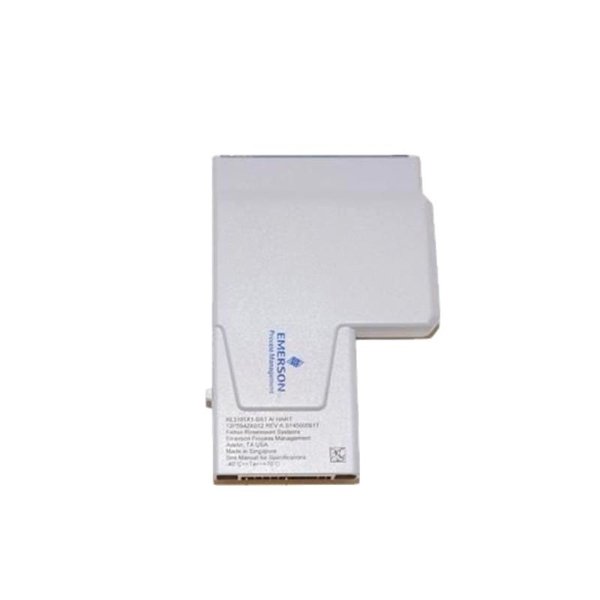

Emerson KL3105X1-BA1 Thermocouple/mV CHARM Module

The Emerson KL3105X1-BA1 is a Thermocouple/mV Characterization Module (CHARM) designed specifically for DeltaV™ Electronic Marshalling systems. It serves as a high-performance input module capable of accepting thermocouple and millivolt signals with high precision and accuracy. This CHARM module enhances the flexibility of control systems by allowing users to easily configure and reconfigure I/O without field rewiring.

Its integration into DeltaV™ systems enables seamless control and monitoring of temperature and low-voltage signal inputs from field instruments. The KL3105X1-BA1 supports multiple thermocouple types, ensuring adaptability across a wide range of industrial processes.

This module is ideally suited for industries requiring precise temperature monitoring and control, including oil & gas, power generation, petrochemical, pharmaceutical, and food processing sectors.

Product Specifications

Applications

• Process Industries: Monitoring critical temperature processes in refineries and chemical plants.

• Power Generation: Used for precise turbine and generator temperature control.

• Pharmaceutical Production: Essential for regulated, high-accuracy thermal environments.

• Food & Beverage: Ensures proper cooking, pasteurization, and sterilization temperatures.

• HVAC & Environmental Systems: Used in large-scale industrial heating and cooling systems.

• Research Laboratories: Accurate signal measurement for thermal testing and R&D applications.

Advantages

• Flexible Configuration: Easily accommodates different thermocouple types without hardware changes.

• Plug-and-Play Integration: Designed for seamless operation within the DeltaV Electronic Marshalling system.

• Reduced Downtime: Field wiring changes are minimized, allowing rapid maintenance and configuration.

• High Accuracy: Provides stable and precise temperature readings even in harsh industrial environments.

• Compact Form Factor: Saves panel space with a modular, pluggable design.

• Internal CJC: Ensures temperature accuracy without needing external cold junction compensation.

• Electrically Isolated: Protects signal integrity and prevents interference from other channels.

• Field Proven Reliability: Built to endure extreme temperatures and vibrations typical in industrial applications.

FAQ (Frequently Asked Questions)

1. What thermocouple types are supported by the KL3105X1-BA1 module?

   It supports Type B, C, E, J, K, N, R, S, and T thermocouples, along with direct mV inputs.

2. Is this module hot-swappable?

   Yes, KL3105X1-BA1 modules can be hot-swapped without shutting down the system, thanks to DeltaV CHARM design.

3. Can I use the module outside of the DeltaV system?

   No, it is designed exclusively for use with Emerson’s DeltaV Electronic Marshalling infrastructure.

4. Does the module require external cold junction compensation?

   No, it features internal cold junction compensation (CJC) for accurate temperature measurements.

5. Is the module compatible with HART devices?

   No, this specific module handles thermocouple and mV inputs only. For HART inputs, another CHARM model is required.

6. What is the resolution of the temperature readings?

   The KL3105X1-BA1 provides 16-bit resolution, enabling precise measurements.

7. How is electrical isolation handled in this module?

   Each channel is isolated from others and from the system bus up to 50 VDC.

8. What environmental certifications does this module hold?

   It is CE marked and certified for ATEX, UL, CSA, and IECEx compliance.

9. What kind of signal conditioning does the module perform?

   It includes built-in signal conditioning for filtering and noise reduction, tailored for thermocouple/mV inputs.

10. Can the module be used in SIL-rated safety applications?

    While the CHARM system supports safety-rated implementations, always verify the overall system design meets SIL requirements.
