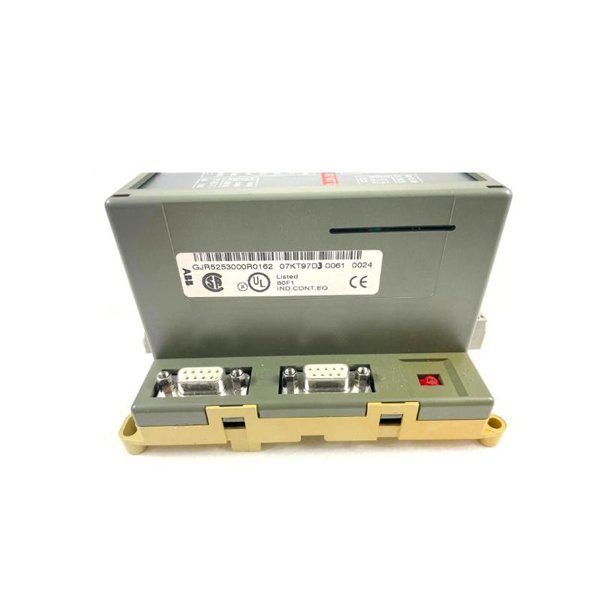

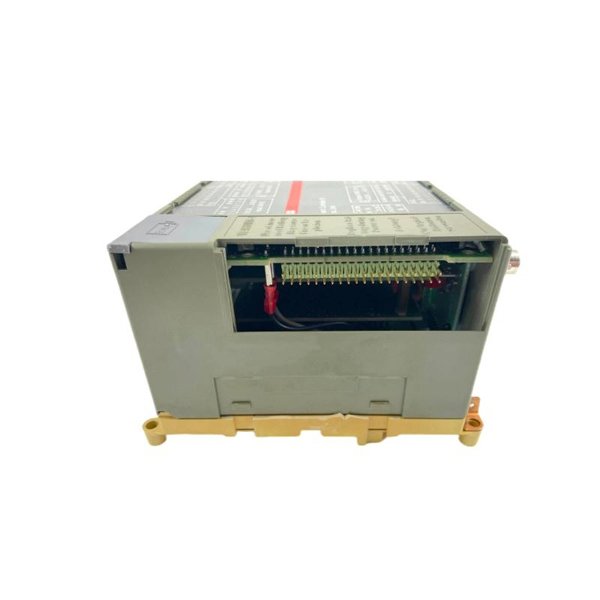

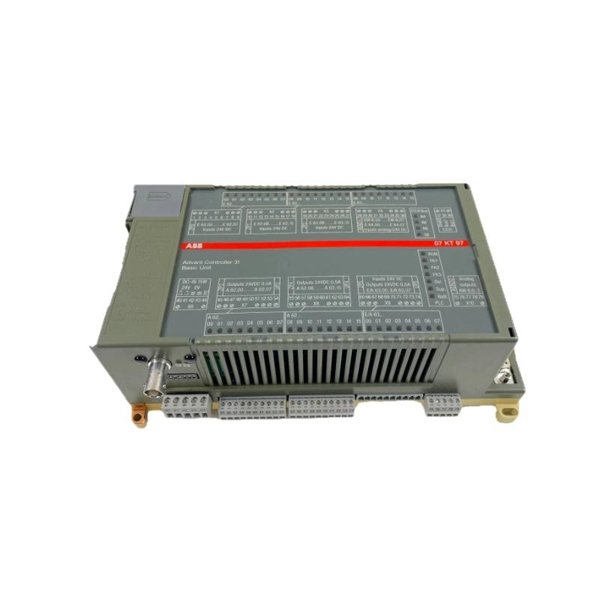

ABB 07KT97D GJR5253000R0272 Controller Module

The ABB 07KT97D GJR5253000R0272 Controller Module is a high-performance central processing unit (CPU) within ABB’s Advant Controller 31 series. Designed for demanding industrial automation applications, this module offers rapid processing capabilities, extensive I/O options, and seamless integration with various communication protocols. Its robust construction ensures reliable operation in harsh industrial environments, making it an ideal choice for critical control systems.

Product Specifications

Product Applications

The ABB 07KT97D Controller Module is engineered for a wide range of industrial automation applications, including:

• Manufacturing Automation: Controls assembly lines, robotic systems, and machinery operations.

• Process Industries: Manages processes in chemical, petrochemical, and pharmaceutical plants.

• Energy Sector: Supervises operations in power generation and distribution systems.

• Water and Wastewater Treatment: Automates treatment processes and monitors system performance.

• Building Automation: Integrates HVAC, lighting, and security systems for efficient building management.

• Transportation Systems: Controls signaling and operations in railway and metro systems.

Product Advantages

• High Performance: Rapid processing capabilities ensure real-time control and responsiveness.

• Scalability: Modular design allows for easy expansion to accommodate system growth.

• Versatile I/O Options: Supports a wide range of digital and analog inputs/outputs for diverse applications.

• Robust Communication: Multiple communication interfaces facilitate seamless integration with other systems.

• Reliable Operation: Designed to operate in harsh industrial environments with high reliability.

• Ease of Programming: Compatible with AC1131 software for straightforward programming and configuration.

• Compact Design: Space-saving form factor enables installation in confined spaces.

• Comprehensive Diagnostics: Built-in diagnostics aid in quick troubleshooting and maintenance.

• Energy Efficient: Low power consumption contributes to overall system efficiency.

• Global Compliance: Meets international standards and certifications for worldwide applicability.

FAQ

1. What is the primary function of the ABB 07KT97D Controller Module?

   It serves as the central processing unit in automation systems, executing control programs and managing I/O operations.

2. Which programming software is compatible with the 07KT97D?

   The module is programmed using ABB’s AC1131 software.

3. Can the 07KT97D handle both digital and analog signals?

   Yes, it supports 24 digital inputs, 16 digital outputs, 8 analog inputs, and 4 analog outputs.

4. What communication protocols does the module support?

   It supports CS31-Bus, Ethernet TCP/IP, and Profibus DP for flexible integration.

5. Is the 07KT97D suitable for use in harsh environments?

   Yes, it is designed to operate reliably in industrial settings with temperatures ranging from 0°C to +55°C.

6. How is the module mounted in a control panel?

   It is designed for DIN rail mounting, facilitating easy installation.

7. What is the processing speed of the 07KT97D?

   It processes 1000 instructions in approximately 0.3 milliseconds.

8. Does the module include a real-time clock?

   Yes, it features an integrated real-time clock for time-dependent operations.

9. What is the memory capacity for user programs and data?

   It offers 480 kB for user programs and 256 kB for user data storage.

10. Where is the ABB 07KT97D manufactured?

    The module is manufactured in Switzerland, ensuring high-quality standards.
