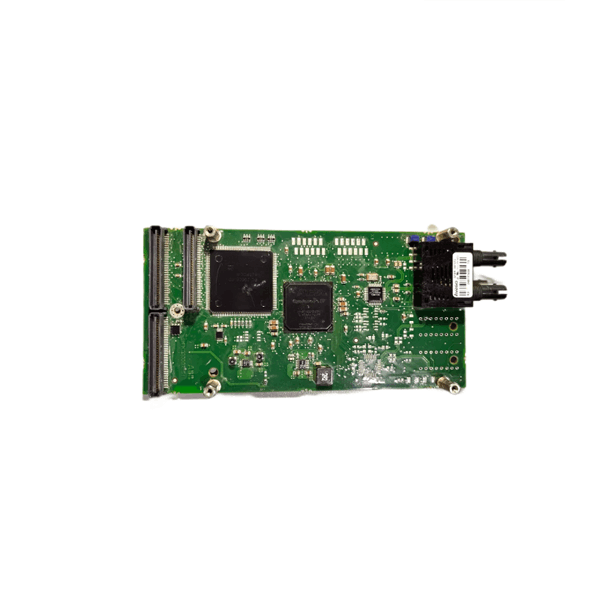

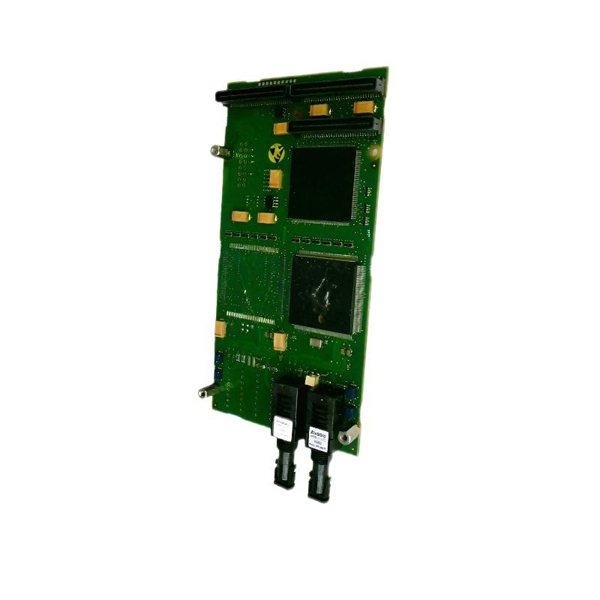

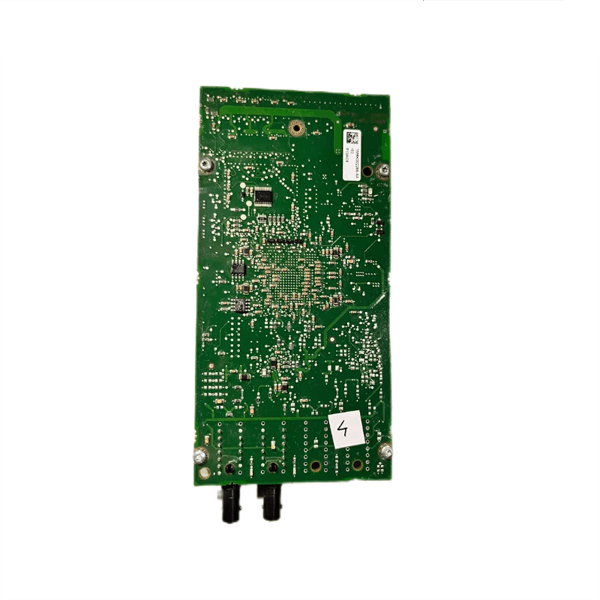

ABB P13AC8 1MRK000007-51 Binary Input/Output Module

The ABB P13AC8 (1MRK000007-51) is a robust binary input/output (I/O) module designed for industrial and utility automation applications. This module integrates multiple binary inputs and outputs, providing reliable interfacing between field devices and control systems such as PLCs, RTUs, and protection relays.

Built to meet the high standards of substation automation and process control, the P13AC8 supports fast switching, electrical isolation, and clear diagnostic capabilities. Its compact size and flexible mounting options make it ideal for integration in control panels where space efficiency is crucial.

The module’s proven reliability in harsh industrial environments, combined with its ease of configuration and operation, positions it as an excellent choice for critical infrastructure control and monitoring tasks.

Technical Specifications

Applications

• Substation Automation

  Used for control and monitoring of breakers, disconnectors, and alarms within high and medium voltage substations.

• Industrial Automation

  Interfaces with PLCs and SCADA systems to handle discrete input/output signals in manufacturing and processing plants.

• Renewable Energy Systems

  Controls and monitors auxiliary equipment in solar, wind, and hydro power plants.

• Power Generation Facilities

  Provides reliable binary I/O for turbine control systems, excitation panels, and generator protection.

• Transportation Infrastructure

  Used in railway signaling, tunnel lighting, and airport power distribution control.

• Oil & Gas Sector

  Supports critical safety functions and process control in hazardous area control systems.

Advantages

• Compact Design

  Fits into space-constrained control cabinets without compromising channel count.

• High Reliability

  ABB’s proven quality ensures long-term, maintenance-free operation in demanding environments.

• Fast Response Time

  Enables rapid switching (<5 ms) critical for protective relaying and interlocking.

• Multi-Protocol Support

  Compatible with IEC 61850, Modbus, and IEC 60870-5-103 for seamless system integration.

• Diagnostic Feedback

  Built-in LEDs and self-tests provide immediate indication of operational status and faults.

• Flexible Mounting

  Supports both DIN rail and panel mounting to adapt to various control cabinet layouts.

FAQ(Frequently Asked Questions)

Q1: What is the function of the ABB P13AC8 module?

A1: It acts as a binary input/output interface for monitoring and controlling field devices.

Q2: How many inputs and outputs does it support?

A2: It has 8 binary inputs and 8 binary outputs.

Q3: What types of input signals does it accept?

A3: Dry contact and DC voltage inputs.

Q4: What kind of outputs does it provide?

A4: Mechanical relay outputs (Form A), suitable for AC and DC loads.

Q5: Is the module suitable for harsh environments?

A5: Yes, it is designed to operate reliably from -25°C to +70°C.

Q6: What communication protocols does it support?

A6: IEC 61850, Modbus, and IEC 60870-5-103.

Q7: How is device status monitored?

A7: Through individual channel LEDs and built-in self-diagnostic functions.

Q8: What is the typical response time?

A8: Less than 5 milliseconds.

Q9: Can the module be mounted on a DIN rail?

A9: Yes, it supports both DIN rail and panel mounting.

Q10: What is the module’s weight and size?

A10: Dimensions are 230 x 130 x 30 mm and weight is approximately 0.208 kg.
