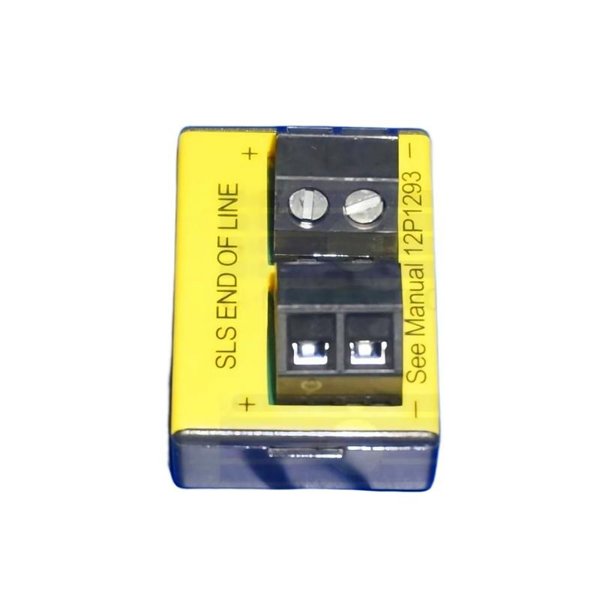

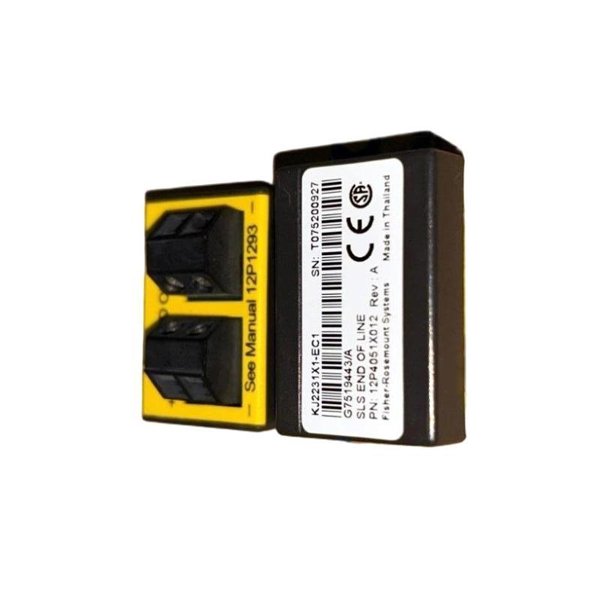

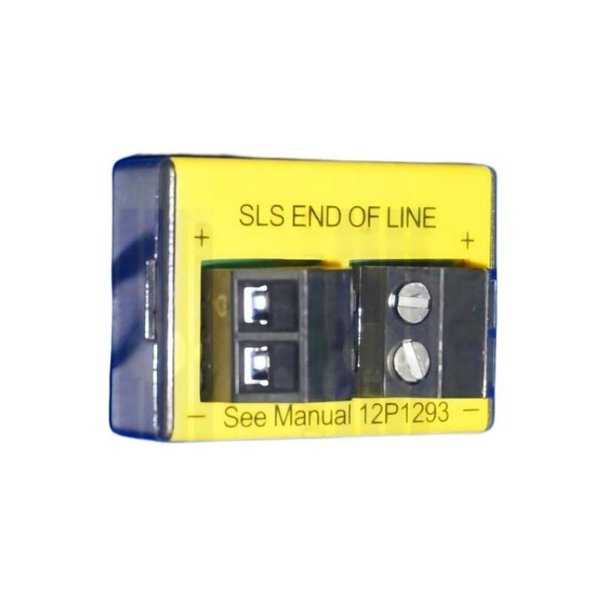

Emerson KJ2231X1-EC1 SIS End of Line Resistance Module

The Emerson KJ2231X1-EC1 SIS End of Line Resistance Module is a specialized accessory used within the DeltaV™ and DeltaV SIS™ safety instrumented systems. This module is designed to provide controlled termination resistance at the end of safety loops, ensuring signal integrity, accurate monitoring, and compliance with international safety standards.

Its primary role is to stabilize field wiring and improve diagnostic accuracy by simulating specific resistance values in the loop. This function is crucial for fault detection, including open circuits, short circuits, and line breaks, making it a vital component in safety-critical applications.

Engineered to integrate seamlessly with Emerson’s SIS logic solvers and I/O systems, the KJ2231X1-EC1 combines reliability, precision, and robust construction. The module is compact, lightweight, and designed for quick installation, making it suitable for harsh industrial environments where reliability and functional safety are paramount.

Product Parameters

Product Applications

The KJ2231X1-EC1 module is widely used in process industries where functional safety is a priority. Its applications include:

• Oil and Gas: Ensuring reliable loop termination for emergency shutdown systems (ESD) and fire and gas detection systems (F&G).

• Petrochemical Plants: Stabilizing signal loops in safety instrumented functions for pressure, flow, and temperature monitoring.

• Power Generation: Supporting turbine protection and boiler safety shutdown systems.

• Chemical Processing: Ensuring fault-tolerant safety loops in hazardous process units.

• Pharmaceutical Industry: Providing reliable resistance termination in validated safety environments.

• Refineries: Supporting loop integrity in critical shutdown and alarm systems.

Product Advantages

• High Reliability: Factory-calibrated resistance ensures consistent performance under demanding conditions.

• Seamless Integration: Designed to work natively with Emerson SIS logic solvers and I/O modules.

• Enhanced Diagnostics: Improves system fault detection by eliminating false alarms caused by unstable loop resistance.

• Robust Design: Built to withstand harsh industrial environments, including vibration, shock, and temperature extremes.

• Compact Size: Small form factor allows easy installation within crowded control cabinets.

• SIL 3 Compliance: Certified for use in high-integrity safety instrumented systems.

• Low Maintenance: Passive design requires minimal upkeep, ensuring long-term operational stability.

FAQ

1. What type of resistance does the KJ2231X1-EC1 provide?

   It provides a fixed, factory-calibrated resistance optimized for safety loop termination.

2. Can the module be used in redundant safety loops?

   Yes, it is compatible with redundant SIS configurations and maintains resistance accuracy across parallel loops.

3. What happens if the module is removed during operation?

   The safety logic solver will detect an open circuit, and the system will transition to a safe state as designed.

4. Does the module affect signal transmission speed in the loop?

   No, it only stabilizes the termination resistance and does not introduce latency into the loop.

5. Can the module withstand voltage transients on the loop?

   Yes, it is designed with high immunity to industrial transient and surge conditions.

6. Is it necessary to recalibrate the resistance value in the field?

   No, the resistance is factory-set and does not require recalibration during its lifecycle.

7. Does the module include internal diagnostics?

   While the module itself is passive, the SIS logic solver continuously monitors loop integrity and detects anomalies.

8. Can it be mounted in hazardous area enclosures?

   Yes, when installed with appropriate enclosure protection, it complies with hazardous area requirements.

9. What is the maximum loop length supported with this module?

   It supports long-distance safety loops, with length limited by the overall system design rather than the module itself.

10. How does it contribute to SIL 3 compliance?

    By ensuring stable termination resistance, it eliminates diagnostic uncertainties, supporting safe loop operation in SIL 3 applications.
