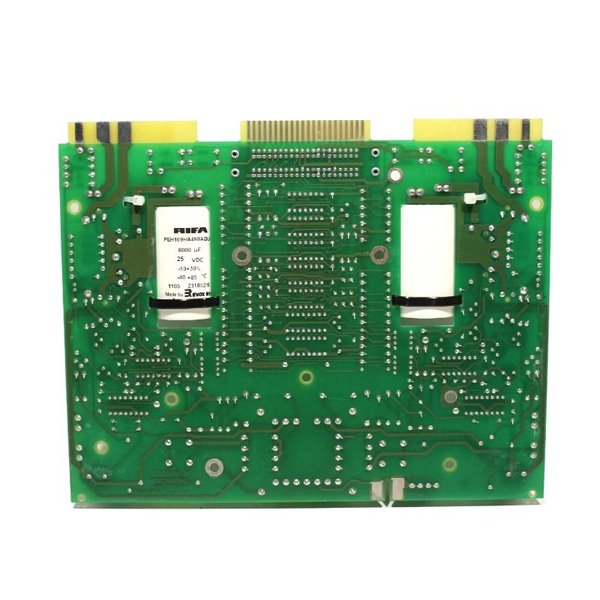

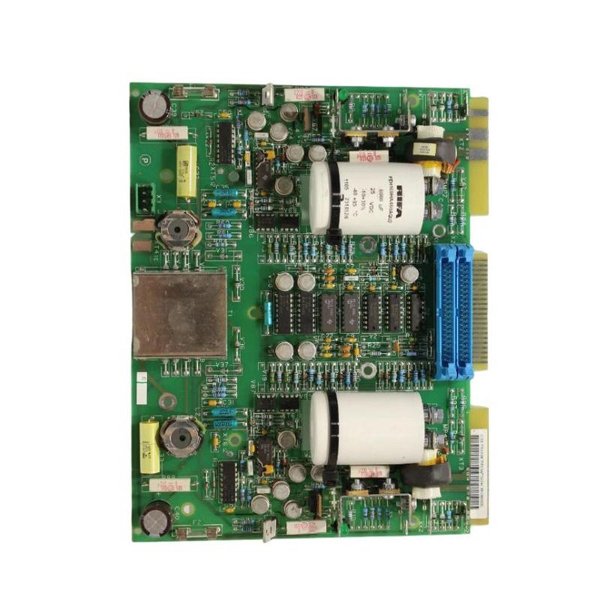

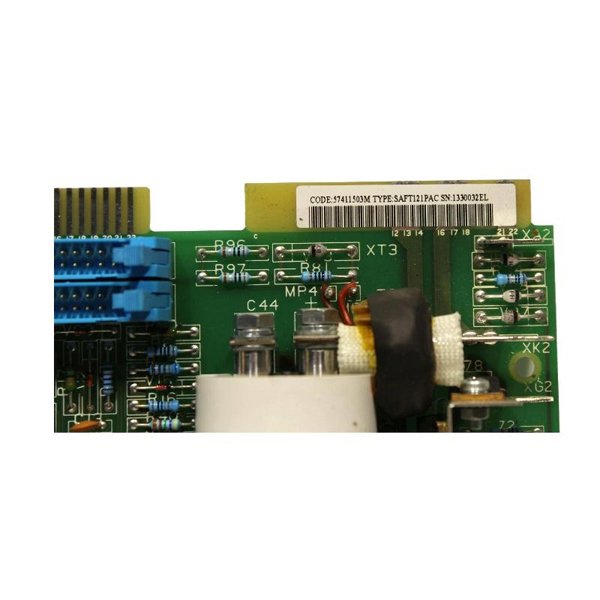

ABB SAFT121PAC 57411503M Control Board

The ABB SAFT121PAC 57411503M Control Board is a high-performance and robust control module designed specifically for ABB’s distributed control systems (DCS). Widely integrated within ABB Symphony Plus and legacy Advant Master systems, this module offers reliable real-time control and processing capabilities for various industrial applications. With a robust design that adheres to ABB’s stringent quality and safety standards, the SAFT121PAC plays a vital role in managing field signals, executing control algorithms, and interfacing with process equipment in mission-critical operations.

Used extensively in power generation, water treatment, chemical plants, and oil & gas facilities, this board ensures stable operation in complex automation environments. It supports rapid data acquisition, high-speed communication with other system components, and is equipped with embedded diagnostics for predictive maintenance and enhanced system reliability.

Product Specifications

Applications

The SAFT121PAC 57411503M is engineered for high-demand automation environments where precision control and system stability are essential. Its typical application areas include:

• Power Plants: Turbine control, boiler control, generator protection

• Oil & Gas: Pipeline automation, compressor control, safety interlocks

• Chemical Processing: Reactor monitoring, batch control, PID loop regulation

• Water and Wastewater Treatment: Pump control, chemical dosing, flow regulation

• Metals and Mining: Furnace management, motor control, safety systems

Advantages

• High Reliability: Engineered with industrial-grade components for 24/7 operation in harsh environments.

• Fast Data Processing: Supports real-time control applications with minimal latency.

• Diagnostics Built-In: Embedded health monitoring ensures proactive maintenance and rapid fault isolation.

• Redundancy Ready: Supports redundant configuration for high availability systems.

• Long Lifecycle: Designed to match the lifespan of large-scale control systems with backward compatibility.

• Flexible I/O Support: Handles both analog and digital signals, reducing the need for additional modules.

• Security and Integrity: Embedded firmware with security validation and checksum verification.

Frequently Asked Questions (FAQ)

1. Does the SAFT121PAC support hot-swapping within the DCS system?

   Yes, depending on the system configuration, it can support hot-swapping with minimal process interruption.

2. What kind of memory is used in this control board?

   It uses non-volatile flash memory to store configurations and firmware.

3. Is the firmware on the SAFT121PAC field-upgradable?

   Yes, ABB provides secure firmware upgrade tools for field updates.

4. How does the board handle communication failures or bus faults?

   The board includes built-in fault detection and isolation to ensure safe failover or fallback strategies.

5. Does the SAFT121PAC support redundancy configurations?

   Yes, it supports 1:1 redundancy for high availability systems.

6. Can the SAFT121PAC process both analog and digital inputs simultaneously?

   Yes, it is designed to handle mixed-signal environments efficiently.

7. What is the diagnostic method used for internal fault detection?

   It utilizes internal diagnostics, status LEDs, and system logs via the DCS for fault reporting.

8. How is the configuration of the control logic done on this board?

   Through ABB configuration software such as Control Builder or Composer.

9. Is it compatible with third-party systems?

   Generally, it is optimized for ABB systems, but integration via standard fieldbus protocols may be possible with customization.

10. How is communication latency managed in high-speed applications?

    The board uses deterministic communication and optimized buffering to minimize latency.
