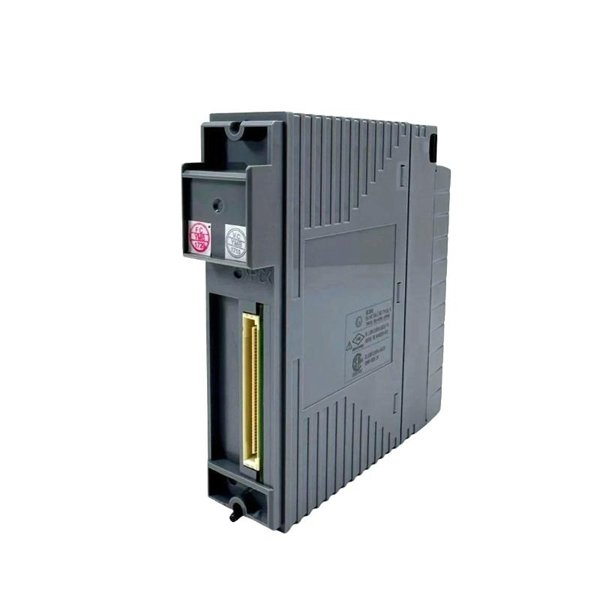

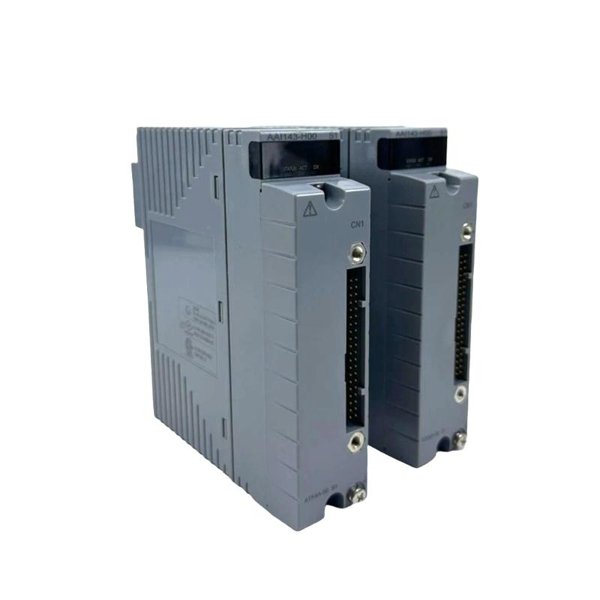

Yokogawa AAI143-HM0 Analog Input Module

The Yokogawa AAI143-HM0 Analog Input Module is a high-precision input device designed for use in Yokogawa’s distributed control systems (DCS). It is responsible for acquiring analog process signals such as temperature, pressure, flow, and level, and converting them into digital values for use in automation and process control.

Built with Yokogawa’s advanced engineering standards, the AAI143-HM0 provides superior accuracy, stability, and noise immunity. It is designed to handle demanding process control environments, offering reliable performance for continuous 24/7 operations. With modular architecture and easy integration, this module plays a critical role in ensuring system reliability, plant safety, and efficient process monitoring.

Product Specifications

Applications

The AAI143-HM0 Analog Input Module is widely used across industries to handle various analog measurements:

• Petrochemical Plants: Acquiring temperature and pressure signals from reactors and distillation columns.

• Power Generation: Monitoring steam temperature, turbine pressure, and boiler levels.

• Oil & Gas Facilities: Collecting flow and pressure signals from pipelines and offshore installations.

• Water Treatment Plants: Monitoring pH, flow, turbidity, and conductivity for process optimization.

• Manufacturing Plants: Providing real-time feedback for quality control and automation.

• Pharmaceutical Production: Recording precise temperature and humidity data for batch integrity.

Advantages

• High Precision Measurement: 16-bit resolution ensures accurate signal acquisition.

• Multi-Signal Compatibility: Supports current, voltage, RTD, and thermocouple inputs.

• Robust Isolation: Prevents cross-channel interference and enhances system stability.

• Fast Response Time: Suitable for dynamic processes requiring quick signal updates.

• Compact Modular Design: Saves panel space and integrates seamlessly with Yokogawa DCS.

• Reliability: Engineered for continuous operation in harsh industrial environments.

• Flexible Configuration: Each channel can be independently configured for different signal types.

• Ease of Maintenance: Plug-in module design allows quick replacement with minimal downtime.

FAQ

1. What type of analog signals does the AAI143-HM0 support?

   It supports current (4–20 mA), voltage (1–5 V), thermocouples, and RTDs depending on configuration.

2. How many input channels are available?

   The module provides 16 configurable input channels.

3. What is the resolution of the A/D conversion?

   It uses 16-bit resolution for precise signal measurement.

4. Is there channel-to-channel isolation?

   Yes, each channel is isolated to prevent signal interference and grounding issues.

5. What is the typical signal update rate?

   The module updates measurements typically every 100 ms.

6. Can each channel be configured independently?

   Yes, channels can be independently set for different input signal types.

7. How does the module handle electrical noise?

   It incorporates advanced filtering and isolation techniques to minimize EMI and noise.

8. What power source does it require?

   Power is supplied via the system backplane, eliminating the need for separate wiring.

9. Is it compatible with Yokogawa’s CENTUM series DCS?

   Yes, it is fully compatible with Yokogawa CENTUM and other related control systems.

10. Can it be hot-swapped during operation?

    In most system configurations, modules can be replaced without shutting down the entire system.
