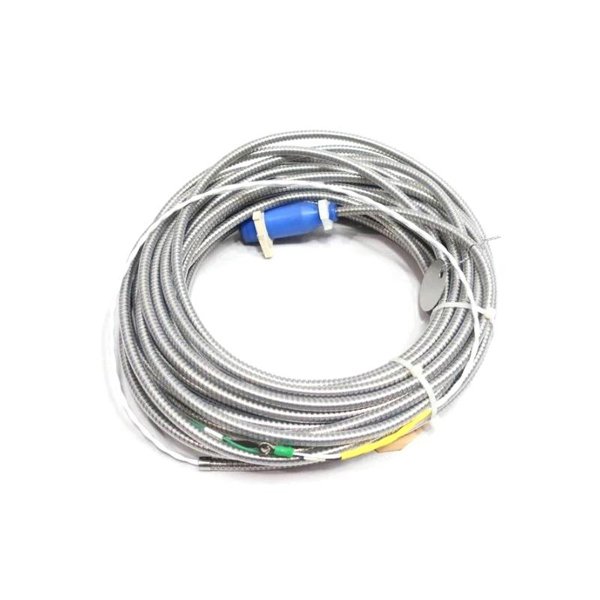

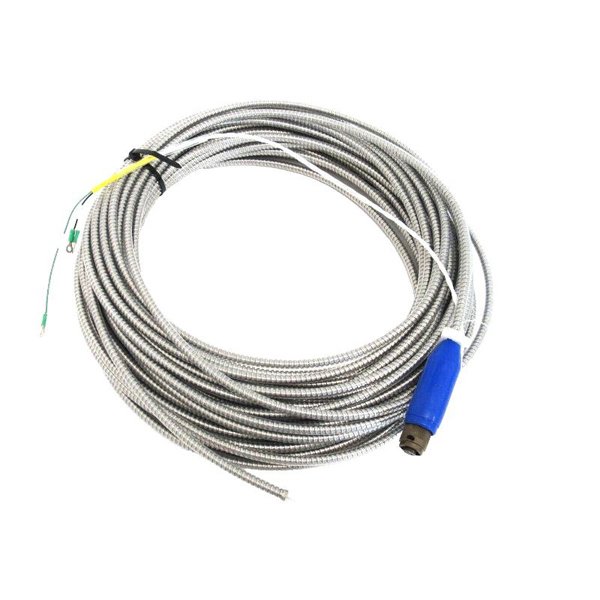

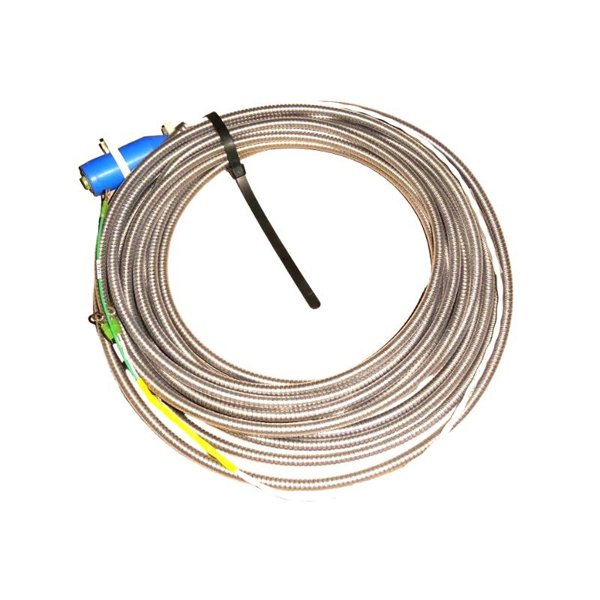

Bently Nevada 106765-10 Interconnect Cable

The Bently Nevada 106765-10 Interconnect Cable is designed to connect Velomitor XA piezo-velocity sensors to monitoring systems with high reliability and environmental protection. Featuring a robust build, splash resistance, and stainless-steel armor, this 10-metre cable ensures signal integrity even in demanding industrial conditions.

Technical Specifications

Applications

• Vibration monitoring in turbines, compressors, pumps, and motors

• Environments with high humidity and dust where splash resistance is critical

• Industries including power generation, petrochemicals, and marine

• Installations requiring long, robust signal cable runs with minimal interference

Product Advantages

• Factory-assembled, ensuring quality and consistency

• Hermetically sealed connector for reliable environmental sealing

• Designed for harsh industrial settings with stainless-steel armored protection

• Easy installation with clear wiring identification and accessories available

• Reduces signal degradation even over long distances

Frequently Asked Questions (FAQ)

Q1: What is the maximum cable length supported by the system?

A1: The system supports up to 305 metres with compatible bulk cables without signal degradation.

Q2: Is the 106765-10 suitable for outdoor use?

A2: Yes, it is splash-resistant and designed for moist or outdoor environments when properly installed.

Q3: Can this cable be used with non-Bently Nevada sensors?

A3: It is specifically designed for Velomitor XA sensors; compatibility with other sensors is not guaranteed.

Q4: What is the minimum bend radius during installation?

A4: The minimum bend radius is 1.5 inches (38 mm).

Q5: Does the cable come with a boot cover?

A5: Yes, it includes a blue fluorosilicone splash-resistant boot.

Q6: What is the environmental temperature limit for the cable?

A6: The cable operates within the same environmental limits as the Velomitor XA sensor: -55°C to +121°C.

Q7: How is the signal shield grounded?

A7: The cable includes a shield conductor identified for grounding at the monitoring end.

Q8: What is the conductor size?

A8: The cable uses 22 AWG twisted shielded conductors.

Q9: Are accessories like terminal housings required?

A9: Terminal housings are optional but recommended for proper field wiring connections.

Q10: Does the cable have any hazardous area approvals?

A10: The cable itself is a passive component; approvals apply to the sensor assembly when properly installed.
