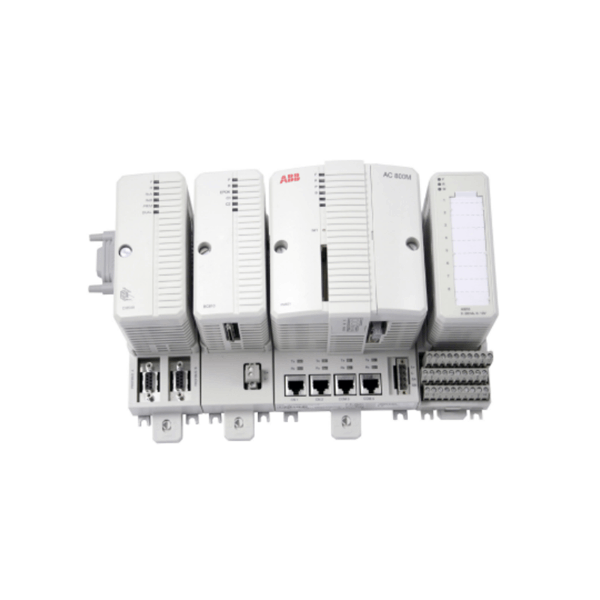

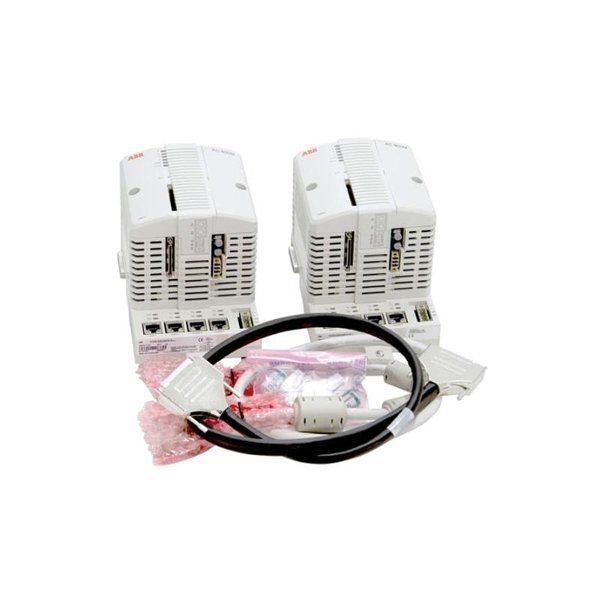

ABB PM867K02 3BSE081638R1 CPU Controller Unit

The ABB PM867K02 3BSE081638R1 is a high-performance Process Controller from ABB’s AC 800M series, designed for industrial automation and process control applications. It is part of ABB’s Industrial IT system, offering advanced processing power, reliability, and seamless integration with ABB’s 800xA control system. This controller is widely used in industries such as oil & gas, power generation, chemical processing, and water treatment.

Product Parameters

Product Applications

The ABB PM867K02 3BSE081638R1 is suitable for a wide range of industrial automation applications, including:

• Oil & Gas: Offshore platforms, refineries, pipeline monitoring.

• Power Generation: Turbine control, grid management, substation automation.

• Chemical & Petrochemical: Batch processing, reactor control, safety systems.

• Water & Wastewater: Pump control, filtration, SCADA integration.

• Pharmaceutical: Precision process control, compliance with GMP standards.

• Manufacturing: Robotics, assembly line automation, quality control.

Product Advantages

1. High Performance: Dual-core CPU ensures fast and reliable processing for complex control tasks.

2. Scalability: Supports modular expansion for additional I/O and communication modules.

3. Robust Design: Operates in harsh environments with wide temperature and humidity tolerance.

4. Seamless Integration: Fully compatible with ABB’s 800xA DCS and third-party systems.

5. Redundancy Support: Hot-swappable modules for high-availability applications.

6. Cybersecurity: Built-in security features to protect against unauthorized access.

7. Long Lifecycle: ABB provides long-term support and firmware updates.

Frequently Asked Questions (FAQ)

1. What is the primary function of the PM867K02 controller?

The PM867K02 is designed for real-time process control in industrial automation, integrating with ABB’s 800xA system for advanced monitoring and control.

2. Can this controller operate in hazardous environments?

Yes, it supports ATEX-certified versions for use in explosive atmospheres (optional).

3. What communication protocols are supported?

It supports Ethernet, Profibus, Foundation Fieldbus, and serial communication (RS-232/485).

4. Is redundancy supported?

Yes, it supports hot standby redundancy for critical applications.

5. What is the typical power supply requirement?

It operates on 24V DC, with a maximum power consumption of 15W.

6. How does the PM867K02 compare to the PM865 model?

The PM867K02 has a dual-core CPU and higher memory capacity compared to the single-core PM865.

7. Can firmware be upgraded?

Yes, ABB provides firmware updates for long-term support.

8. What is the expected lifespan of this controller?

ABB guarantees 5+ years of product support and availability.

9. Does it support third-party I/O modules?

It is primarily designed for ABB’s S800 I/O but can interface with third-party systems via gateways.

10. Where can I find technical documentation?

ABB’s official website provides datasheets, manuals, and configuration guides for download.
