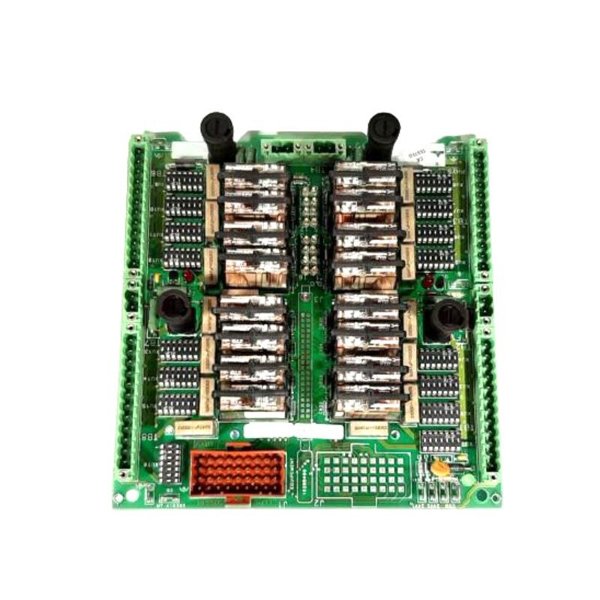

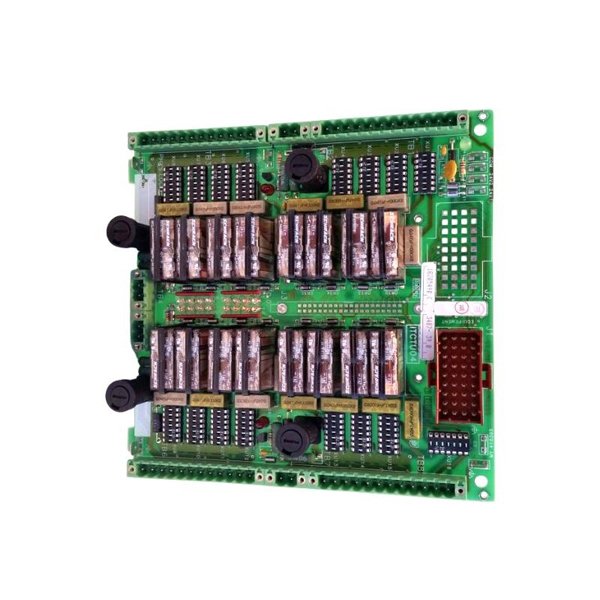

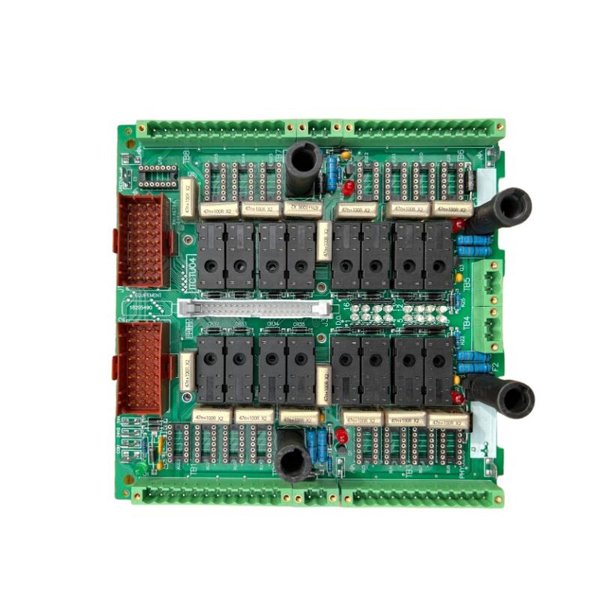

ABB Bailey ITCTU04 Termination Unit

The ABB Bailey ITCTU04 Termination Unit is an integral part of the INFI 90 Distributed Control System (DCS) used in industrial process automation. Designed for field signal wiring, the ITCTU04 provides a clean and organized interface between I/O modules and field devices. It ensures safe and reliable signal terminations for analog and digital inputs and outputs and plays a key role in maintaining system integrity and operational reliability.

As a passive device, the ITCTU04 does not manipulate signals but facilitates secure transmission and organized cable management. It is designed for panel mounting within control cabinets and connects with controller hardware via ribbon or field cables.

Technical Specifications

Product Applications

The ABB ITCTU04 is commonly used in the following industrial sectors and automation processes:

• Power Generation Plants

  Acts as the termination point for turbine, generator, and boiler control instrumentation.

• Chemical & Petrochemical Plants

  Interfaces analog and discrete signals from field devices like transmitters, solenoids, and contact switches.

• Oil & Gas Industry

  Used in remote terminal units (RTUs) and compressor stations for safe wiring and isolation.

• Water and Wastewater Management

  Helps in SCADA-integrated pump control and flow measurement systems.

• Steel and Mining Plants

  Facilitates signal routing for motor control, furnace feedback, and alarm triggers.

• Pulp & Paper Mills

  Interconnects field sensors and actuators in distributed process areas.

Product Advantages

• Robust Terminal Design

  Provides secure screw terminals for long-term field cable connections.

• Organized Wiring Interface

  Clearly marked terminals help reduce wiring errors and facilitate maintenance.

• Panel Integration Ready

  Compact size and flexible mounting options make it ideal for various control panel designs.

• No Power Supply Required

  As a passive device, it does not add power load to the system.

• Field-Tested Reliability

  Trusted in demanding industrial environments with long-term operational stability.

• System Interoperability

  Fully compatible with ABB Bailey’s legacy and current controller hardware.

Frequently Asked Questions (FAQ)

1. What is the primary function of the ITCTU04 Termination Unit?

   It serves as the field signal termination point in ABB Bailey’s INFI 90 control systems.

2. Is this a powered module?

   No, it is a passive device and requires no external power.

3. What types of modules does ITCTU04 connect to?

   It typically connects to I/O modules like IMASI, IMDSI, IMASO, and IMDSO.

4. Can this termination unit be used in new ABB systems?

   While primarily used in legacy Bailey INFI 90 systems, it is often integrated into hybrid environments.

5. How many field signals can it handle?

   Depending on the configuration, it supports 16 or 32 channels.

6. Does it support both analog and digital signals?

   Yes, it can terminate both analog and discrete signal wiring.

7. Is it suitable for outdoor use?

   No, it should be mounted inside a protected control panel in a dry environment.

8. Are the connectors replaceable?

   The screw terminals are permanent, but the ribbon connectors can be maintained or replaced as needed.

9. Does it require configuration or software setup?

   No software or configuration is required; it’s a hardware-only passive component.

10. What certifications does it hold?

    It is CE, UL recognized, and compliant with RoHS standards for environmental safety.
