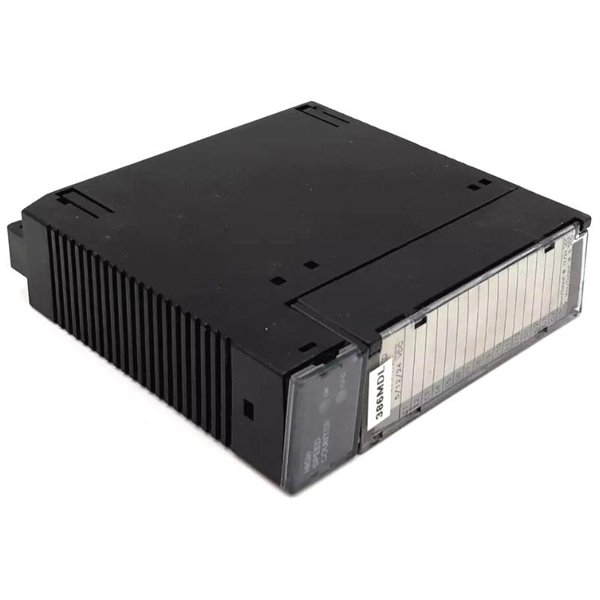

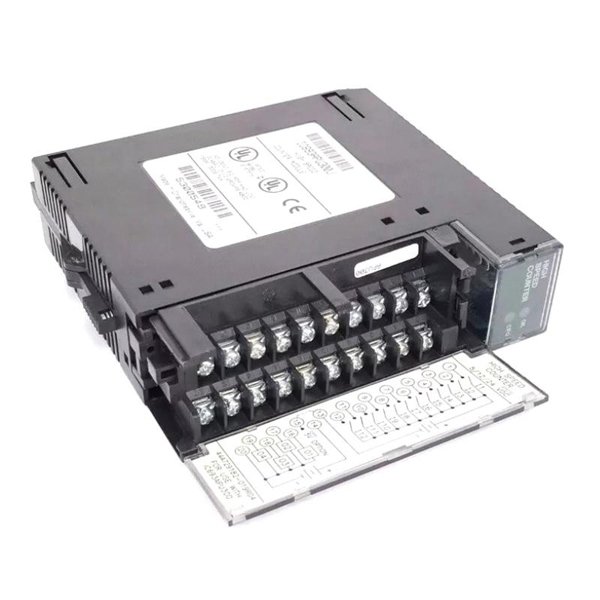

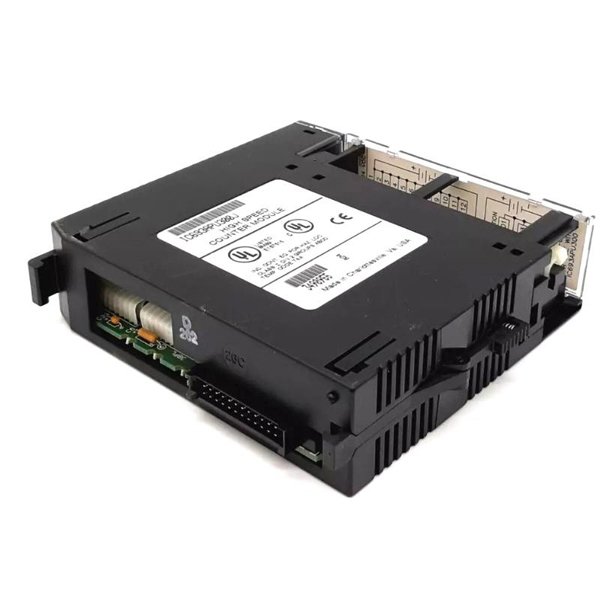

General Electric IC693APU300J High-speed counter Module

With its robust build and reliable architecture, the IC693APU300J helps ensure high-accuracy counting in time-critical processes, making it a trusted choice in automation projects worldwide. It’s especially valuable in motion control, positioning systems, and industrial process monitoring where standard CPU scan rates would otherwise be insufficient.

Technical Specifications

Product Applications

The IC693APU300J is commonly deployed in diverse industrial environments, including but not limited to:

• Conveyor speed monitoring and control

• Position tracking in packaging and labeling machines

• Batch counting in production lines

• Pulse generation for process synchronization

• Length measurement systems in textile and paper industries

• RPM measurement for motors and rotary machinery

Its fast counting capability ensures accuracy in operations where timing and speed are critical.

Product Advantages

• High-Speed Capability: Supports pulse rates up to 80 kHz, outperforming standard CPU counter functions.

• Dual Channels: Allows independent counting on two channels, increasing flexibility.

• Compact Design: Fits seamlessly into Series 90-30 racks without consuming excessive space.

• Programmable Outputs: Offers configurable outputs for event triggering or process feedback.

• Reliable Performance: Engineered to maintain stability under industrial temperature ranges.

• Ease of Integration: Works directly within the GE Fanuc Series 90-30 system, reducing setup complexity.

FAQ

Q1: What is the purpose of the IC693APU300J module?

A1: It’s used for high-speed counting of pulses from encoders, proximity sensors, and similar devices.

Q2: Does this module require external power?

A2: No, it operates from the backplane power supplied by the Series 90-30 rack.

Q3: How many channels can I use at once?

A3: The module supports two independent channels simultaneously.

Q4: What is the maximum pulse rate it can handle?

A4: It can count pulses up to 80 kHz on a single channel.

Q5: Can the outputs be used to control external devices?

A5: Yes, the module provides two programmable outputs for external control or feedback.

Q6: Which PLC series is it compatible with?

A6: It’s specifically designed for the GE Fanuc Series 90-30 family.

Q7: Is the module hot-swappable?

A7: No, the module must be installed or removed when the system is powered off.

Q8: Does it support differential inputs?

A8: Yes, it supports both single-ended and differential input types.

Q9: How do I configure the module?

A9: Configuration is done via the Proficy Machine Edition software or similar GE programming tools.

Q10: What is its typical weight?

A10: The IC693APU300J typically weighs 0.23 kg.
