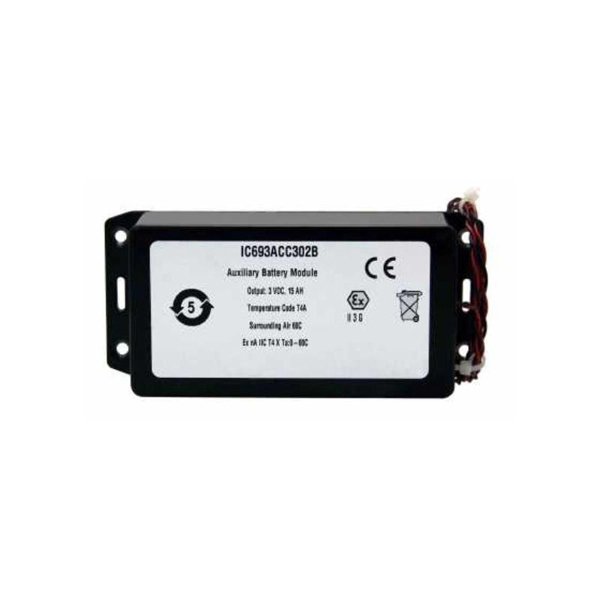

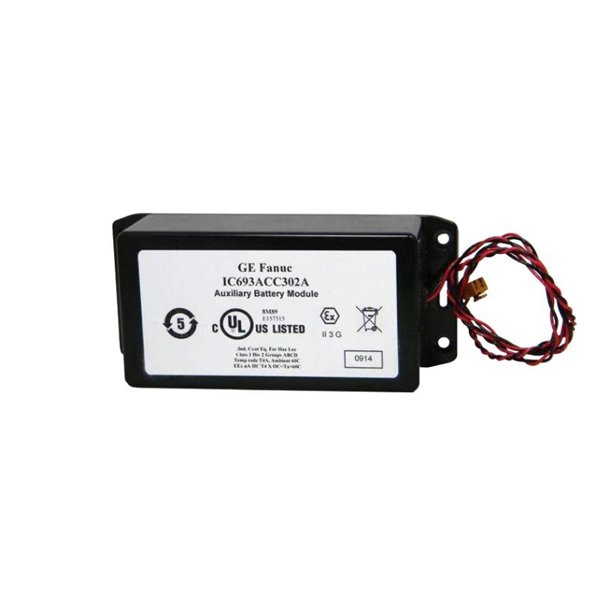

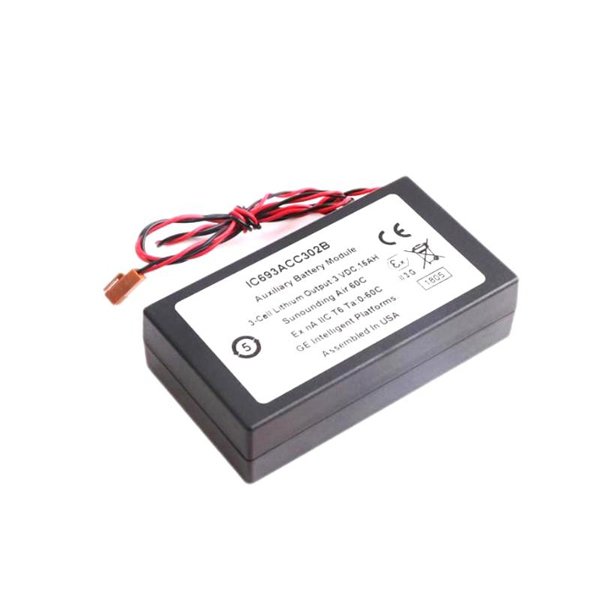

General Electric IC693ACC302 Auxiliary Battery Module

The GE IC693ACC302 Auxiliary Battery Module is an essential component designed to provide backup power to the GE Series 90-30 programmable logic controllers (PLCs). This module ensures that the PLC retains its memory and configuration settings during power loss, preventing data loss and minimizing downtime in industrial control systems. It is part of the GE Automation & Control offerings, aimed at enhancing the reliability and robustness of industrial automation systems.

The IC693ACC302 module is designed for use with the Series 90-30 PLCs, offering a convenient and easy-to-install solution for maintaining data retention when the main power supply is interrupted. The auxiliary battery module provides uninterrupted power to the system’s memory, ensuring that critical data, system settings, and parameters are preserved during power outages. This feature is crucial for applications where downtime must be minimized, and data integrity must be maintained at all times.

The IC693ACC302 is designed for long-term, reliable operation and is compatible with a variety of industrial automation setups. Its compact design ensures that it can be easily installed within the control panel or system cabinet, offering flexibility in space-constrained environments.

Product Specifications

The GE IC693ACC302 Auxiliary Battery Module has the following key specifications:

Applications

The GE IC693ACC302 Auxiliary Battery Module is designed for use in various industrial applications, where system uptime and data retention are critical. Some of the primary applications include:

• Industrial Automation: Ensures memory retention in PLCs used for controlling machines, conveyors, and automated production lines, providing stability during power interruptions.

• Process Control: Essential for process control systems where constant and accurate data monitoring is crucial, particularly when power failure could lead to data loss.

• Energy Management: In energy management systems, this battery module preserves configuration data during power failures, ensuring uninterrupted energy control.

• Water Treatment: Used in water treatment plants to maintain control systems during power outages, ensuring smooth operation and minimizing system errors.

• Building Automation: Supports building automation systems by preserving critical settings and configurations, ensuring systems like HVAC or lighting controls continue to operate seamlessly during power interruptions.

• Transportation: Integrated into transportation systems (such as traffic control or rail systems) to maintain data integrity during power failures, enhancing safety and operation.

Advantages

The GE IC693ACC302 Auxiliary Battery Module offers several key advantages for users in industrial control systems:

• Data Integrity: Provides reliable backup power to the PLC, ensuring that critical configuration and data settings are preserved even during power loss.

• Long Battery Life: The lithium-ion battery provides a long operational life, offering peace of mind and reducing maintenance requirements.

• Compact Design: Its compact size allows for easy integration into the existing control system, making it ideal for space-constrained environments.

• Cost-Effective: By preventing the need for system resets or reconfiguration after a power outage, the battery module minimizes downtime and the associated costs.

• Easy Installation: Designed to be easily installed within the GE Series 90-30 PLCs, simplifying the setup and reducing installation time.

• High Compatibility: Compatible with a wide range of GE PLC systems, enhancing the flexibility and scalability of industrial automation solutions.

• Environmentally Friendly: The battery is designed to be environmentally friendly, complying with RoHS and other environmental standards.

• Reliable Performance: With robust construction and industrial-grade design, the battery module offers dependable performance even in demanding environments.

• Low Maintenance: Requires minimal maintenance throughout its operational life, making it a low-cost, high-reliability component for industrial applications.

• Global Certifications: Certified for CE, UL, and RoHS compliance, ensuring it meets international standards for safety, reliability, and environmental protection.

FAQ (Frequently Asked Questions)

1. What is the primary function of the GE IC693ACC302 Auxiliary Battery Module?

   • The main function is to provide backup power to the PLC, ensuring that memory and system configurations are retained during power failures.

2. What type of battery does the IC693ACC302 use?

   • It uses a rechargeable lithium-ion battery with a nominal voltage of 3.6 V.

3. How long does the IC693ACC302 battery last?

   • The lithium-ion battery provides a long operational life, depending on system usage and operating conditions.

4. Can the IC693ACC302 be used with other PLC models?

   • No, it is specifically designed for use with GE Series 90-30 PLCs.

5. What is the weight of the IC693ACC302 module?

   • The module weighs 0.29 kg.

6. How is the battery charged in the IC693ACC302?

   • The battery is automatically charged when the PLC is powered on. A LED indicator shows the charging status.

7. What are the operating temperature conditions for this module?

   • The module operates within a temperature range of 0°C to 60°C.

8. Is the IC693ACC302 module easy to install?

   • Yes, it is designed for easy integration into the GE Series 90-30 PLC, with no complicated installation process.

9. What happens if the battery in the IC693ACC302 fails?

   • If the battery fails, the PLC will lose its memory and configuration settings during power loss, causing potential data loss and downtime.

10. Are there any environmental certifications for the IC693ACC302?

    • Yes, the module is certified for CE, UL, and RoHS compliance.
