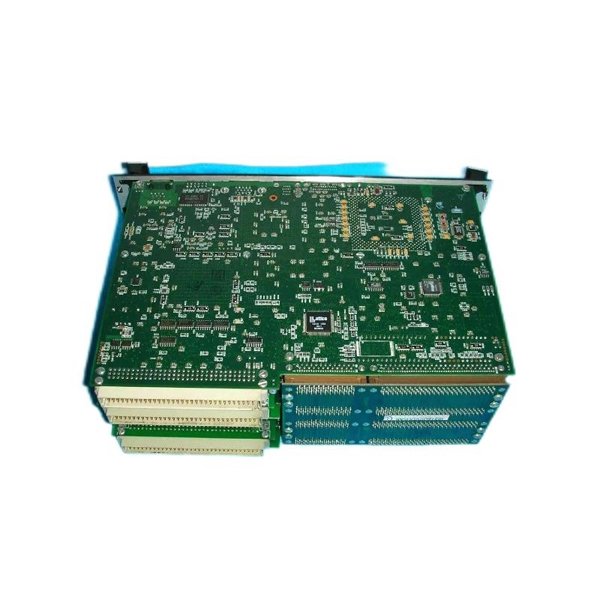

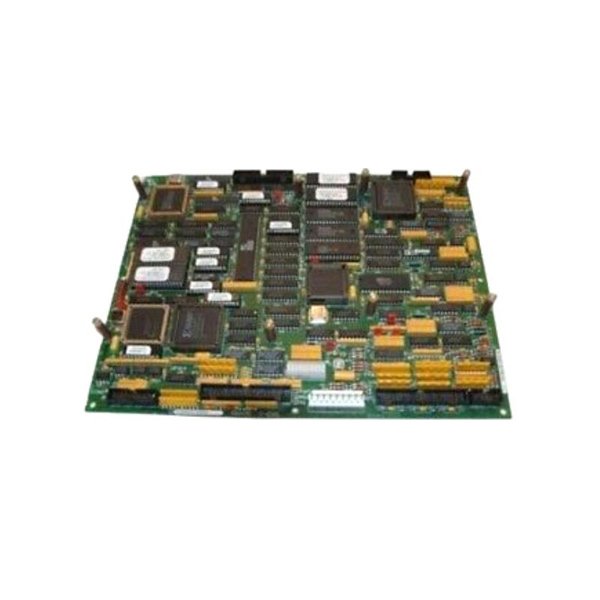

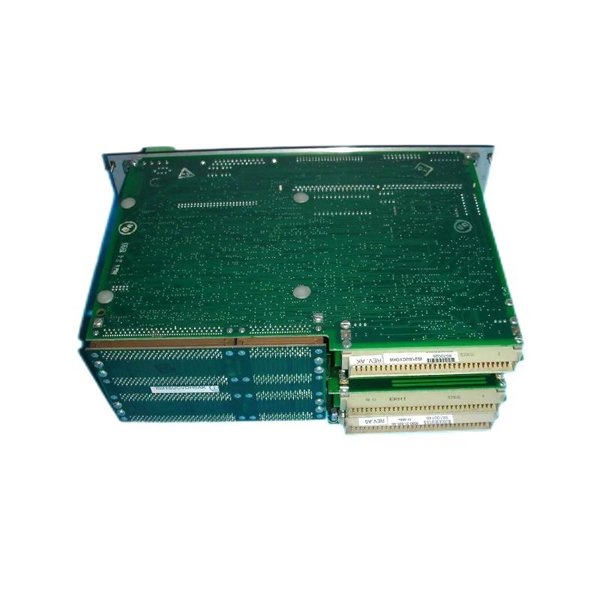

General Electric IS215UCVDH5AN Double Slot Controller Board

The GE IS215UCVDH5AN is a Double Slot Controller Board designed for use within GE’s Mark VI turbine control system.This controller board serves as a central processing unit, managing and executing control algorithms essential for turbine operation. Equipped with a 300 MHz AMD K6 processor,the IS215UCVDH5AN ensures efficient processing capabilities. It features 16 MB of DRAM and 8 MB of flash memory, providing adequate storage for control applications and data. The board operates on the QNX real-time operating system, known for its reliability in industrial environments. Designed to fit into a VME rack, the IS215UCVDH5AN communicates with turbine I/O boards via the VME bus.

• Reset switch
• Two Genius Terminals
• Two COM ports
• Ethernet port for UDH communication
• Two ISBUS ports
• LPT1 port

Eight status LEDs in a double-column format provide operational status and error codes, enhancing diagnostic capabilities.

Product Specifications

Applications

The IS215UCVDH5AN is primarily utilized in GE’s Mark VI turbine control systems, serving as the central processing unit for:

• Gas and Steam Turbines: Managing control algorithms to ensure efficient and safe operation.
• Power Generation Facilities: Overseeing turbine performance and integrating with plant control systems.
• Industrial Automation: Implementing real-time control in various industrial processes requiring high reliability.

Key Advantages

1. High Processing Efficiency: The 300 MHz AMD K6 processor ensures swift execution of control tasks.
2. Robust Memory Capacity: With 16 MB DRAM and 8 MB flash memory, it supports complex applications and data storage.
3. Reliable Real-Time OS: The QNX operating system provides stability and real-time performance.
4. Comprehensive Connectivity: Multiple ports (Ethernet, COM, Genius, ISBUS, LPT) facilitate versatile communication options.
5. Diagnostic Features: Status LEDs offer immediate visual feedback on operational status and errors.
6. Seamless Integration: Designed specifically for GE’s Mark VI systems, ensuring compatibility and ease of integration.
7. Compact Design: Its dimensions and weight allow for efficient use of space within control cabinets.
8. Durable Construction: Built to withstand industrial environments with a wide operating temperature range.
9. Standard Compliance: Adherence to CE and RoHS standards ensures quality and safety.
10. VME Rack Compatibility: Easy installation and maintenance within standard VME racks.
