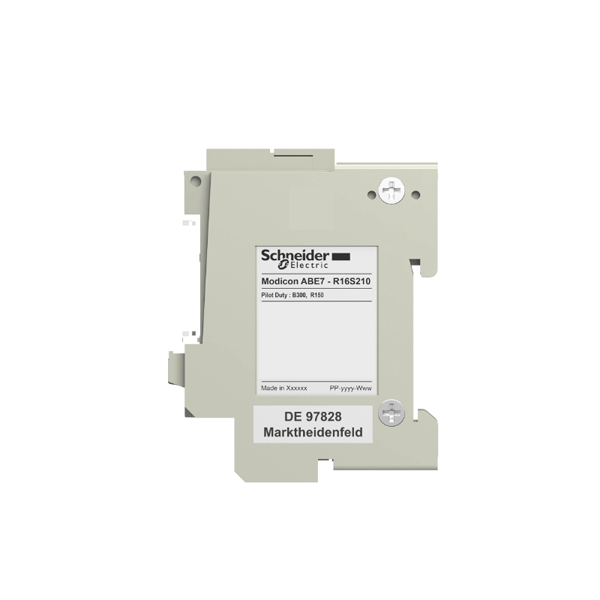

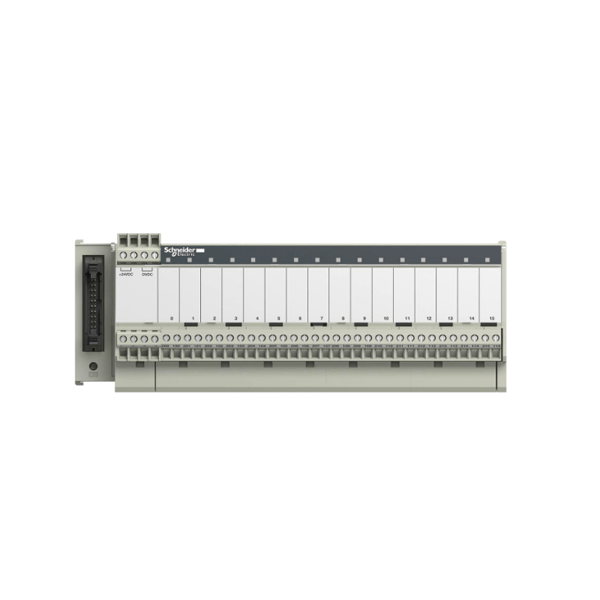

Schneider ABE7R16S210 Soldered Electromechanical Relay Sub Base

The Schneider ABE7R16S210 is a soldered electromechanical relay sub-base designed to offer a reliable and secure mounting platform for relays in various industrial applications. This model is part of Schneider Electric’s comprehensive range of electrical components. It provides excellent performance in controlling electrical circuits, ensuring the safety and longevity of relay systems. The sub-base is built to withstand harsh industrial environments and is compatible with a variety of relay types, making it a versatile solution for both new installations and retrofitting existing equipment.

Product Specifications

Below are the key specifications for the Schneider ABE7R16S210 Soldered Electromechanical Relay Sub Base:

Applications

The Schneider ABE7R16S210 relay sub-base is widely used in various industrial and commercial applications where reliable relay performance is critical. Its most common uses include:

• Industrial Control Systems: Used for controlling large electrical equipment in factories and production lines.

• Automation Systems: Facilitates the switching of signals in automation setups.

• Switchgear Panels: Installed in switchgear to control large electrical currents safely.

• Building Management Systems: Helps in controlling and monitoring various devices in commercial buildings.

• HVAC Systems: Used for controlling relays in heating, ventilation, and air conditioning systems.

Advantages

1. Reliable Performance: Built for high reliability, the ABE7R16S210 sub-base ensures that relays function properly, even in demanding environments.

2. Compact Design: The sub-base is compact and easy to install, making it suitable for a wide range of applications where space is limited.

3. Ease of Use: The simple, soldered mounting method makes it easy to use and maintain.

4. Compatibility: Works seamlessly with Schneider Electric’s broad range of relays and electrical components.

5. Long Lifespan: With a mechanical life of up to 10 million operations, this sub-base offers extended durability.

6. Durability: Built with high-quality materials to resist wear, high temperatures, and harsh environments.

7. Versatile Mounting Options: Can be mounted on a DIN rail or directly, offering flexibility in different installations.

8. High-Quality Construction: Made with durable plastic and metal components that ensure a long-lasting, sturdy installation.

9. Environmental Protection: With an IP20 rating, it protects against dust and water ingress in indoor environments.

Frequently Asked Questions (FAQ)

1. What is the maximum current rating for the ABE7R16S210 relay sub-base?

   • The ABE7R16S210 sub-base has a maximum current rating of 16 A.

2. What types of relays are compatible with the ABE7R16S210?

   • The ABE7R16S210 is compatible with various Schneider Electric relays.

3. How is the ABE7R16S210 sub-base mounted?

   • The sub-base can be mounted on a DIN rail or directly onto a panel.

4. What is the operating temperature range for the ABE7R16S210 sub-base?

   • The sub-base operates between -20°C and +55°C.

5. What is the environmental protection rating of the ABE7R16S210?

   • It has an IP20 rating, which protects against dust and moisture in indoor environments.

6. How long is the mechanical life of the ABE7R16S210?

   • The mechanical life of the ABE7R16S210 is 10 million operations.

7. What is the weight of the ABE7R16S210 sub-base?

   • The weight of the ABE7R16S210 sub-base is 0.405 kg.

8. What is the voltage rating for the ABE7R16S210 sub-base?

   • The voltage rating is 250 V AC and 30 V DC.

9. Can the ABE7R16S210 be used in outdoor applications?

   • No, the ABE7R16S210 is designed for indoor use with an IP20 rating.

10. What materials is the ABE7R16S210 sub-base made from?

    • The sub-base is made of high-quality plastic and metal components for durability.
