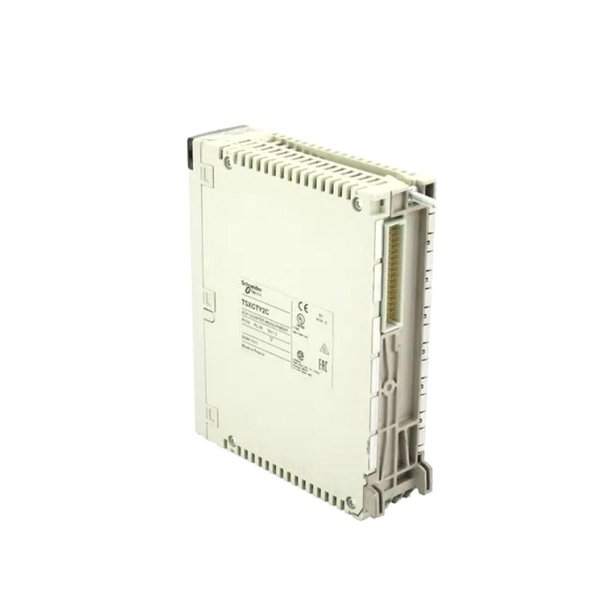

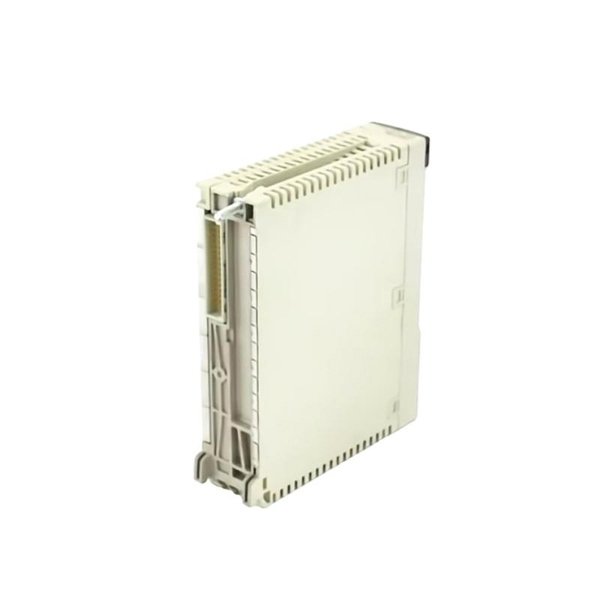

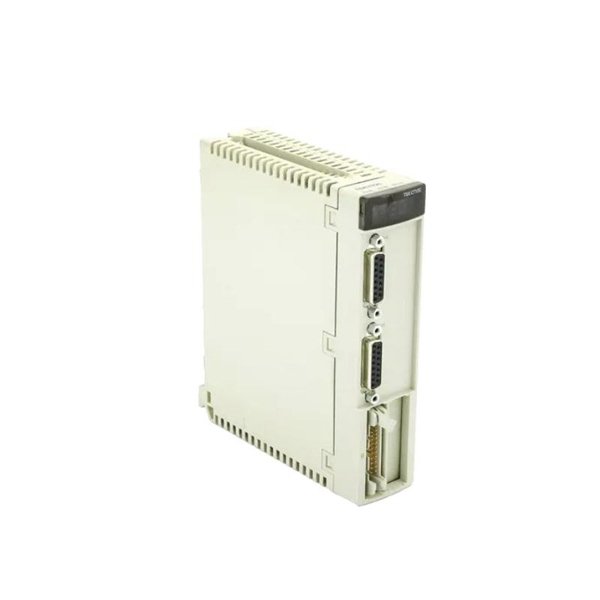

Schneider TSXCTY2C Measurement And Counter Module

The Schneider TSXCTY2C is a high-performance Measurement and Counter Module designed for use within the Modicon Premium PLC system. This module provides precise pulse and frequency counting functions with time-stamped accuracy, tailored to monitor and control fast industrial processes. It is particularly valuable in applications where real-time counting and event detection are critical, such as in packaging machines, conveyors, and flow metering systems.

Capable of operating independently from the PLC scan cycle, the TSXCTY2C enhances control system responsiveness while reducing the processing burden on the central CPU. With robust electrical isolation and built-in filtering, the module ensures reliable performance in electrically noisy environments.

Technical Specifications

Product Applications

The TSXCTY2C module is widely adopted across industries where rapid signal acquisition and pulse-based control are essential:

• Packaging Lines – Monitoring product flow, trigger timing, and controlling rotary encoders.

• Conveyor Systems – Accurate pulse counting for material tracking and movement measurement.

• Water and Gas Flow Measurement – Capturing pulses from flow meters for totalization.

• Textile Machinery – Counting revolutions, thread cuts, and detecting over-speed events.

• Food and Beverage Production – Timed event triggering and object counting.

• Automotive Assembly – Measuring component feed cycles and part placement verification.

Product Advantages

• High-Speed Counting: Handles frequencies up to 200 kHz, suitable for fast-moving industrial processes.

• Real-Time Time Stamping: Precise event recording independent of the PLC scan time improves responsiveness.

• Electrical Isolation: Enhances safety and signal integrity even in high-noise environments.

• Compact Footprint: Fits within a single rack slot of the Modicon Premium PLC system.

• Versatile Modes: Supports multiple counting modes including up, down, frequency, period, and direction.

• LED Diagnostics: Real-time visibility into channel and module status simplifies troubleshooting.

• Rugged Construction: Designed for continuous industrial operation in demanding environments.

• Integration Ready: Seamlessly connects with Unity Pro and other Schneider automation software.

Frequently Asked Questions (FAQ)

1. Q: What type of signals does the TSXCTY2C accept?

   A: It accepts 24 VDC digital pulse signals from encoders, sensors, or proximity switches.

2. Q: How many counters are available on the module?

   A: It offers two independent high-speed counter channels.

3. Q: What is the maximum frequency that can be counted?

   A: Each input channel supports up to 200 kHz signal frequency.

4. Q: Does the module support direction detection for quadrature encoders?

   A: Yes, it supports directional counting when used with quadrature encoder inputs.

5. Q: Can it operate independently from the main CPU scan cycle?

   A: Yes, it features time-stamping and autonomous counter operation.

6. Q: What tools are used to configure the module?

   A: Configuration is done via Schneider’s Unity Pro or Concept software platforms.

7. Q: Is it hot-swappable?

   A: No, it should be powered down before replacing or removing the module.

8. Q: Does it include any on-board memory or buffering?

   A: Yes, it includes internal buffers to store time-stamped events.

9. Q: What type of diagnostics are available?

   A: The module has LED indicators for input state, error status, and communication health.

10. Q: Can it be used with other brands of PLCs?

    A: No, it is designed specifically for Schneider Modicon Premium PLC systems.
