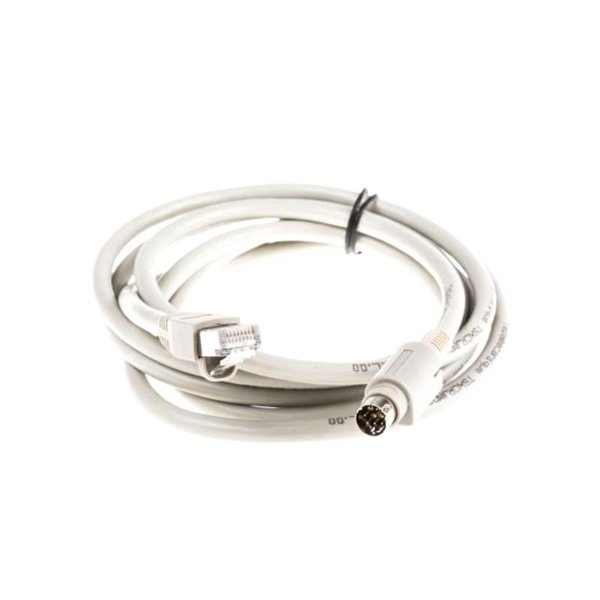

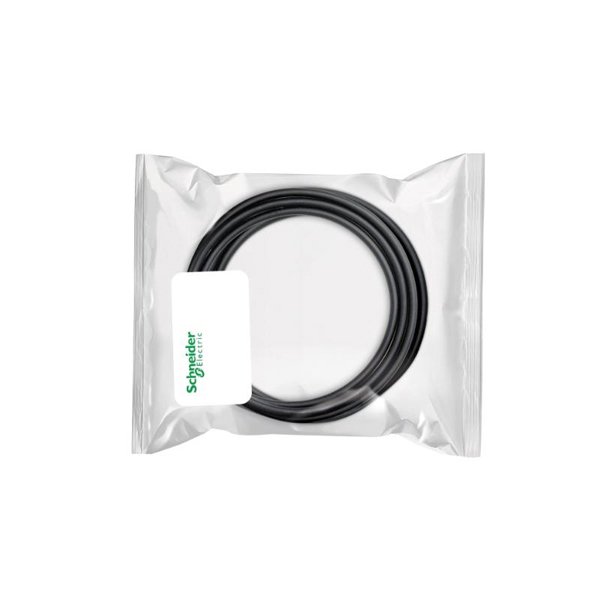

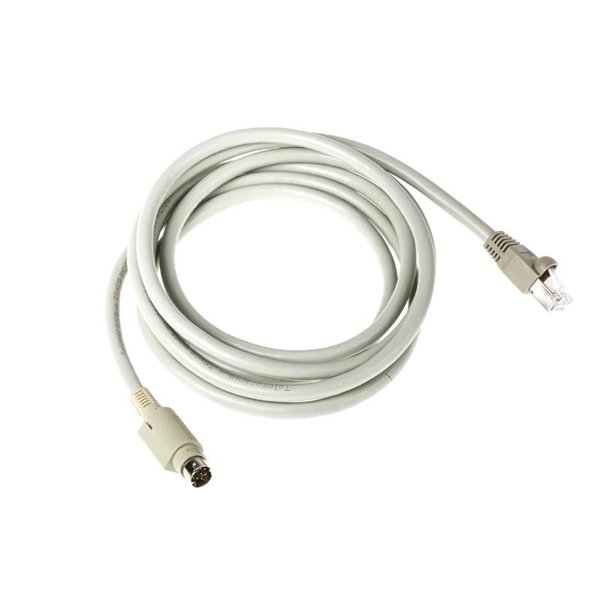

Schneider TSXCRJMD25 Connection Cord Set For PC Terminal

The Schneider Electric TSXCRJMD25 is a 2.5-meter connection cord set designed to facilitate communication between a PC terminal and Schneider Electric’s Modicon Premium and Quantum automation platforms. This cable ensures reliable data transmission, making it an essential accessory for programming and monitoring industrial control systems.​

Technical Specifications

Applications

The TSXCRJMD25 is utilized in various industrial settings, including:​

• Programming and configuring Modicon Premium and Quantum PLCs​

• Monitoring and diagnostics of automation systems​

• Data exchange between PC terminals and PLCs​

• Integration in manufacturing and process control environments​

Advantages

• Reliable Communication: Ensures stable data transmission between PC terminals and PLCs.​

• Versatile Connectivity: Equipped with USB, RJ45, and Mini-DIN connectors for broad compatibility.​

• Robust Design: Built to withstand industrial environments.​

• Ease of Use: Plug-and-play functionality simplifies setup and operation.​

• Compact and Lightweight: Facilitates easy handling and storage.​

Frequently Asked Questions (FAQ)

1. What is the primary use of the TSXCRJMD25 cable?

   It connects PC terminals to Modicon Premium and Quantum PLCs for programming and data exchange.

2. Which PLC models are compatible with this cable?

   It is compatible with Modicon Premium TSX574./5. and Quantum 140CPU6.1 models.

3. What are the connector types on this cable?

   The cable features a USB connector on the PC side and RJ45 and Mini-DIN connectors on the PLC side.

4. Is the cable plug-and-play?

   Yes, it is designed for easy plug-and-play operation.

5. What is the length of the TSXCRJMD25 cable?

   The cable is 2 meters  long.

6. Can this cable be used in harsh industrial environments?

   Yes, it is built to withstand typical industrial conditions.

7. Does the cable support data monitoring functions?

   Yes, it facilitates data monitoring between the PC and PLC.

8. Is the TSXCRJMD25 cable CE certified?

   Yes, it carries the CE certification.

9. What is the weight of the cable?

   The cable weighs 0.15 kg.

10. Where is the TSXCRJMD25 manufactured?

    It is manufactured in France.
