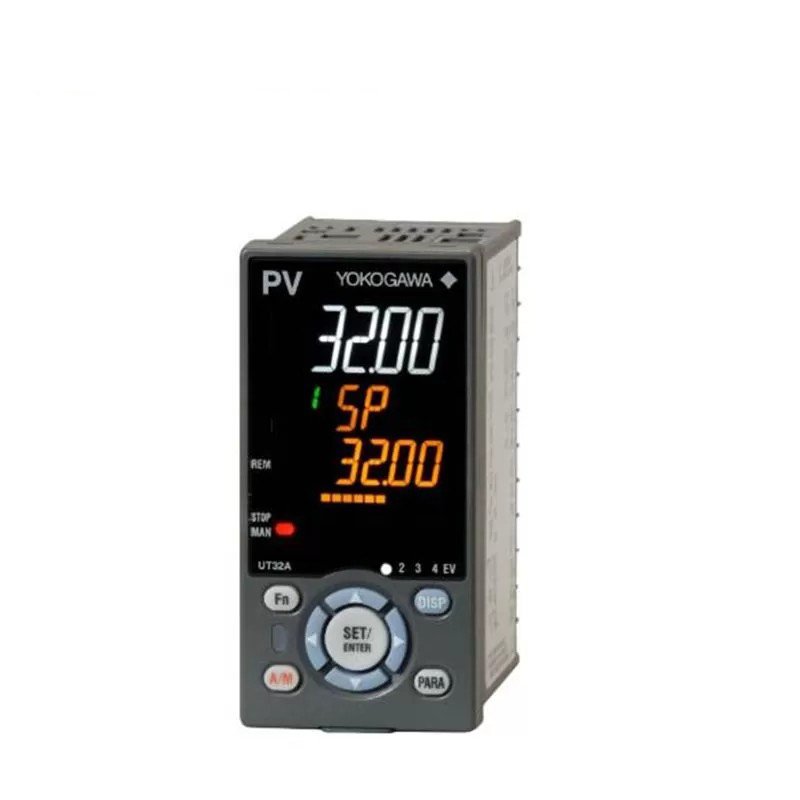

Yokogawa UT32A-010-11-00 Digital Indicating Controller

The Yokogawa UT32A-010-11-00 is a compact digital temperature controller. It is designed for precise temperature regulation in industrial applications. As part of the UTAdvanced series, it features advanced PID control, a user-friendly interface, and robust performance.

Key Features

• Advanced PID Control: Ensures stable and accurate temperature control.
• User-Friendly Interface: Easy-to-read display with intuitive navigation.
• Compact Design: Space-saving form factor for versatile installation.
• Multiple Inputs and Outputs: Supports various sensor types and control outputs.
• High Reliability: Built for long-term use in demanding environments.

Technical Specifications

• Power Supply: 100-240 V AC, 50/60 Hz
• Input Types:
  • Thermocouple: K, J, T, N, R, S, B, L, U, WRe5-26
  • RTD: Pt100, JPt100
  • Voltage: 0-10 V DC
  • Current: 4-20 mA
• Control Output:
  • Relay: SPDT, 250 V AC, 3 A (resistive load)
  • Voltage Pulse: 0/12 V DC, 20 mA max
  • Current: 4-20 mA DC
• Control Modes: PID, ON/OFF, manual
• Display: 11-segment LED, 4-digit PV, 4-digit SV
• Accuracy:
  • Thermocouple: ±0.1% of input span ±1 digit
  • RTD: ±0.1% of input span ±1 digit
  • Voltage/Current: ±0.1% of input span ±1 digit
• Ambient Operating Temperature: -10 to +50°C
• Dimensions: 48 x 48 x 67 mm
• Weight:  200 g
• Communications: Optional RS-485 (Modbus RTU)
• Certification: CE, UL, CSA

Applications

• Industrial Ovens and Furnaces: Precisely regulate temperature.
• Food and Beverage Processing: Ensure consistent product quality.
• Pharmaceutical Manufacturing: Maintain strict temperature control for sensitive processes.
• Chemical Processing: Support various control strategies for complex reactions.
• HVAC Systems: Provide reliable temperature control in building automation.
