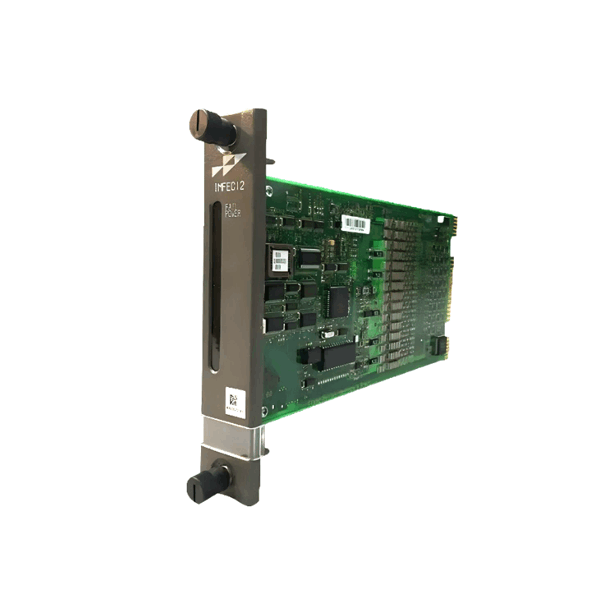

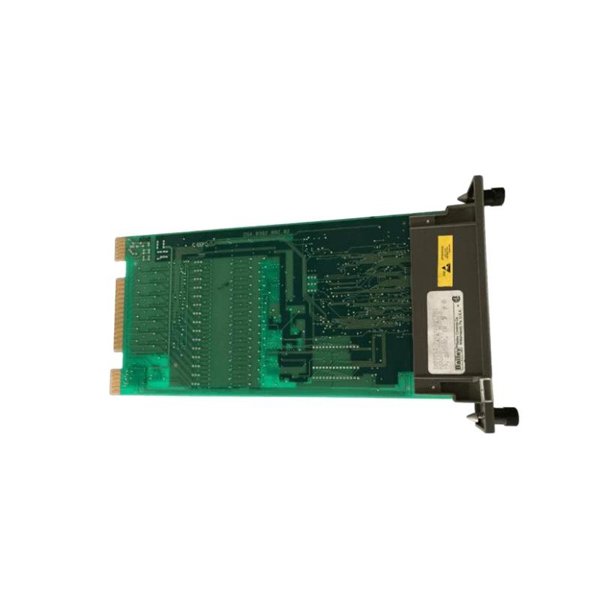

ABB Bailey IMFEC12 Analog Input Module

The ABB Bailey IMFEC12 is a high-level analog input module designed for integration within ABB’s INFI 90 OPEN process control system. This module facilitates the acquisition of analog signals from field devices, converting them into digital data for processing by the Multifunction Processor (MFP) or Multifunction Controller (MFC) modules. With 15 input channels, the IMFEC12 is tailored for applications requiring precise and reliable analog data collection. It is compatible with conventional transmitters, including BC, EQ, and PT types, making it suitable for a wide range of industrial automation scenarios.​

Specifications

Applications

The IMFEC12 module is employed across various industries for accurate analog signal acquisition:​

• Process Control Systems: Collects data from sensors measuring temperature, pressure, flow, and level, enabling precise control in chemical, petrochemical, and pharmaceutical industries.​

• Power Generation: Monitors critical parameters in power plants, ensuring efficient and safe operations.​

• Water and Wastewater Treatment: Gathers data from pH meters, turbidity sensors, and flow meters to maintain water quality standards.​

• Manufacturing Automation: Integrates with machinery to monitor operational parameters, facilitating predictive maintenance and quality control.​

• Oil and Gas: Captures real-time data from field instruments, aiding in the monitoring and control of drilling and refining processes.​

Advantages

• High Channel Density: Offers 15 input channels, allowing for extensive data acquisition within a compact module.​

• Versatile Input Compatibility: Supports multiple analog signal types, including current and voltage inputs, enhancing flexibility in system design.​

• Robust Performance: Operates reliably across a wide temperature range, suitable for harsh industrial environments.​

• Precise Data Acquisition: High accuracy ensures minimal signal distortion, critical for process optimization.​

• Seamless Integration: Designed to work with ABB’s MFP and MFC modules, facilitating straightforward system expansion.​

• Compact Design: Its small footprint allows for efficient use of space within control cabinets.​

• Compliance with Standards: Meets international safety and electromagnetic compatibility standards, ensuring global applicability.​

• Ease of Installation: DIN rail mounting simplifies installation and maintenance procedures.​

• Reliable Communication: RS485 Modbus RTU interface ensures robust data transmission between devices.​

• Energy Efficient: Low power consumption reduces operational costs and thermal load within control systems.​

Frequently Asked Questions (FAQ)

1. What types of signals can the IMFEC12 process?

   The IMFEC12 can handle analog signals such as 4–20 mA current loops, 1–5 VDC, and 0–10 VDC voltage inputs.

2. How many input channels does the IMFEC12 support?

   It supports 15 analog input channels, allowing for extensive data collection from various field devices.

3. Is the IMFEC12 compatible with smart transmitters?

   The IMFEC12 is designed for conventional transmitters. For smart transmitter compatibility, consider the IMFEC11 module.

4. What is the operating temperature range of the IMFEC12?

   The module operates effectively between -20°C and +70°C (-4°F to +158°F).

5. What are the dimensions and weight of the IMFEC12?

   It measures 229 x 103 x 33 mm and weighs 1 kg.

6. How is the IMFEC12 mounted within a control system?

   The module is designed for modular DIN rail mounting, facilitating easy installation and maintenance.

7. What power supply is required for the IMFEC12?

   It requires a 24 VDC power supply with a maximum current draw of 100 mA.

8. Does the IMFEC12 support any communication protocols?

   Yes, it utilizes the RS485 Modbus RTU protocol for communication within control systems.

9. Can the IMFEC12 be used in safety-critical applications?

   While it meets various industrial standards, suitability for safety-critical applications should be evaluated based on system requirements and certifications.

10. Is the IMFEC12 still in production, or has it been replaced?

    The IMFEC12 has been succeeded by the SPFEC12 module in ABB’s Symphony Plus series, offering enhanced features and compatibility.
