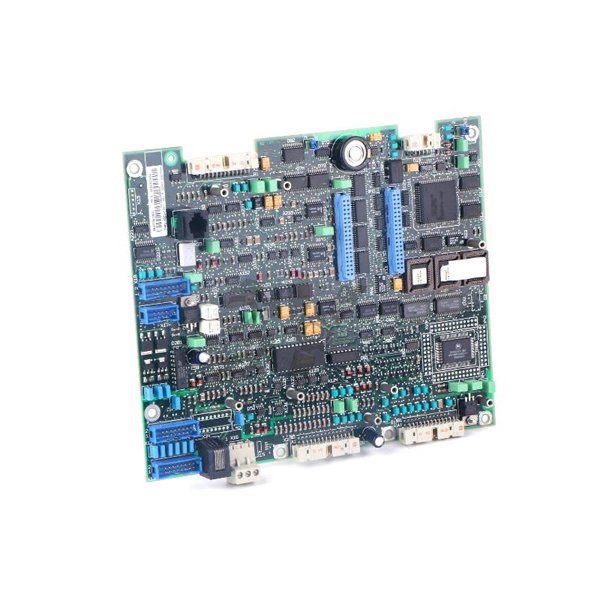

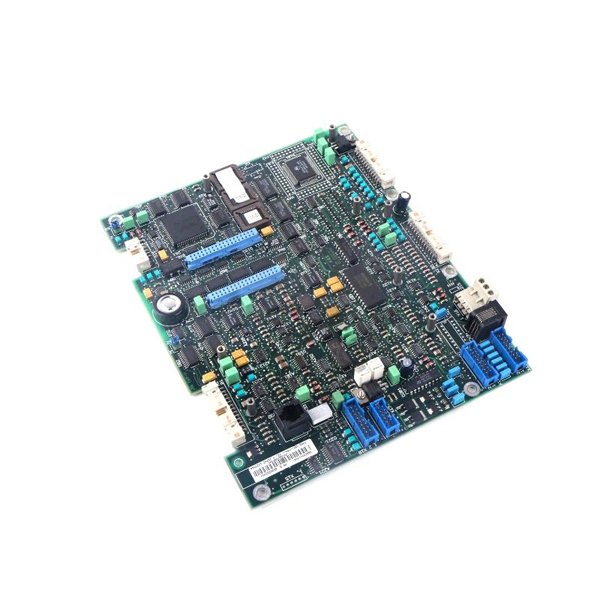

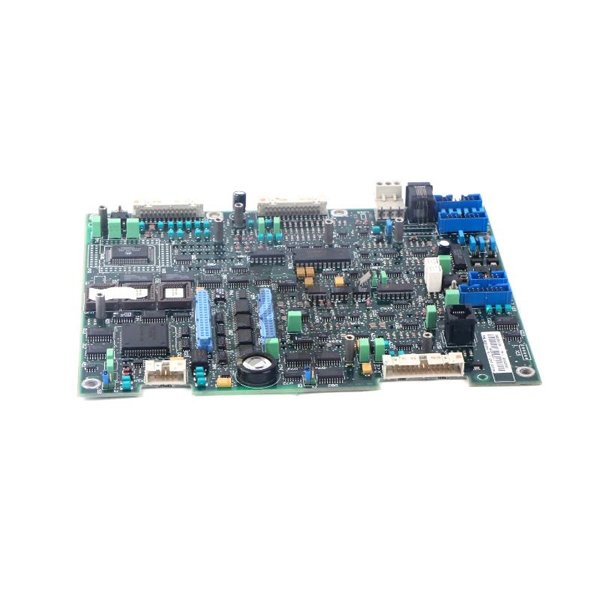

ABB SDCS-CON-1 3BSE006196R1 Control Board

ABB SDCS-CON-1 3BSE006196R1 Control Board is a core component of the ABB DCS (Drive Control System) series. Designed for reliable control and communication within industrial drive systems, this board functions as a key interface between the main processor and various peripherals. It is widely used in DC drive systems to manage and process control signals with high accuracy and stability.

The SDCS-CON-1 board ensures smooth operation of complex industrial machinery by facilitating effective signal transmission and command execution. Thanks to ABB’s engineering excellence, the board guarantees long-term durability and excellent performance, even under harsh industrial environments.

Product Specifications

Applications

• DC Motor Drives – Used extensively in ABB’s DCS400, DCS500, and DCS600 series to control and coordinate drive operations.

• Industrial Automation – Common in applications requiring precise speed and torque control such as rolling mills, paper machines, and crane systems.

• Retrofit Projects – A popular choice for upgrading older ABB DC drive systems.

• Heavy Industry – Including mining, metal processing, and marine applications where robust and dependable control is critical.

Advantages

• High Reliability: Manufactured under stringent quality control, the board provides consistent performance in demanding industrial settings.

• Seamless Integration: Easily integrates with ABB drive systems, minimizing installation complexity and downtime.

• Long Service Life: Built with industrial-grade components and protective coating for longevity.

• Stable Communication: Equipped with robust communication ports and fast processing capability for real-time data handling.

• Global Support: Backed by ABB’s worldwide service network ensuring technical support and spare parts availability.

• Versatile Application: Suitable for a wide range of industrial DC drive systems.

Frequently Asked Questions (FAQ)

1. Q: What drive systems is the SDCS-CON-1 board compatible with?

   A: It is compatible with ABB’s DCS400, DCS500, and DCS600 drive families.

2. Q: Can this board be used for retrofitting older systems?

   A: Yes, it is widely used for replacing or upgrading control boards in legacy ABB drive installations.

3. Q: What is the operating voltage of the SDCS-CON-1?

   A: The board operates at a nominal voltage of 24V DC.

4. Q: Does the board require any software for configuration?

   A: Yes, configuration is typically performed using ABB drive software tools or via integrated interfaces.

5. Q: Is it possible to use this board in high-humidity environments?

   A: Yes, it is protected by conformal coating and can operate in environments with up to 95% relative humidity.

6. Q: How is the board installed in the drive system?

   A: It is designed as a plug-in PCB module for easy and secure installation.

7. Q: What communication interfaces are supported?

   A: Fiber optic and serial communication interfaces are supported, depending on the configuration.

8. Q: Is there any onboard memory or processing capability?

   A: Yes, it features processing capability to manage control logic and signal flow.

9. Q: What maintenance is required?

   A: Minimal maintenance is needed, typically visual inspection for damage and periodic cleaning in dusty environments.

10. Q: What is the expected lifespan of this board in continuous operation?

    A: When operated within recommended conditions, it can function reliably for over 10 years.
