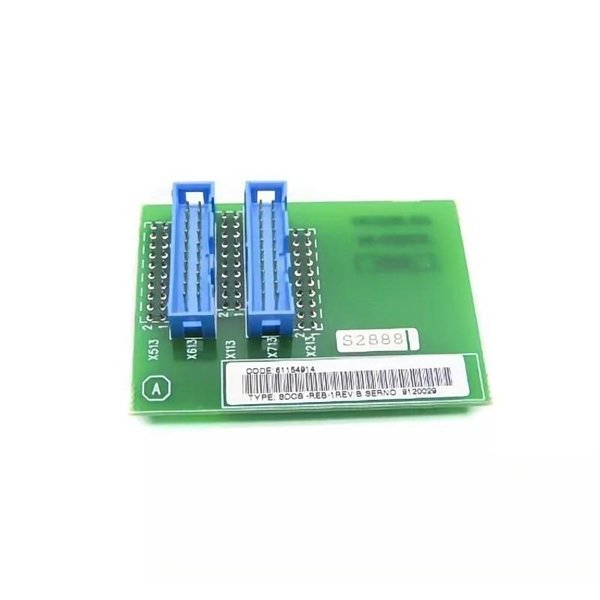

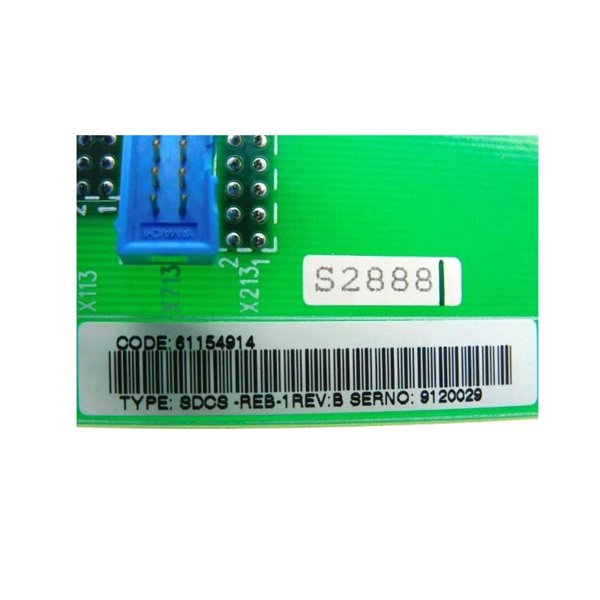

ABB SDCS-REB-1C I/O Board
Manufacturer:ABB
Product Number:SDCS-REB-1C
Product Type:I/O Board
Origin:Sweden
Dimensions:254 x 25 x 248 mm
Weight:0.4 kg
Views:48
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The ABB SDCS-REB-1C I/O Board is an essential component within ABB’s DC drive ecosystem, designed specifically to expand or interface digital and analog signals in the DCS400, DCS500, and DCS600 DC drive systems. This input/output (I/O) board provides connectivity between external control systems (such as PLCs, sensors, and actuators) and the drive’s internal control logic.
Equipped with multiple channels and robust signal isolation, the SDCS-REB-1C ensures precise communication, stable operation, and secure electrical interfacing across demanding industrial environments. It is typically mounted in the drive cabinet and forms a critical layer for signal transmission, process feedback, and remote control.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | SDCS-REB-1C |
| Function | I/O Board for DC Drive Systems |
| Part Type | Digital and Analog Signal Expansion Module |
| Compatible Systems | ABB DCS400 / DCS500 / DCS600 |
| Digital Inputs | 8–16 (configurable depending on system architecture) |
| Digital Outputs | 8–16 (isolated, transistor type) |
| Analog Inputs | 2 (0–10V or 4–20mA, software selectable) |
| Analog Outputs | 2 (±10V standard) |
| Input Voltage | Supplied by main control board |
| Communication Interface | System backplane connector |
| Signal Isolation | Optical isolation on digital lines; analog isolation |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -25°C to +75°C |
| Humidity Tolerance | 5% – 95% RH, non-condensing |
| Dimensions (L×W×H) | 254 x 25 x 248 mm |
| Weight | 0.4 kg |
| Certifications | CE, UL, RoHS, EN/IEC compliant |
Product Applications
The SDCS-REB-1C board is used in a variety of ABB DC drive applications, acting as a reliable interface between automation systems and drive hardware. Common applications include:
-
Industrial Automation Lines – For connecting proximity sensors, relays, and actuators directly to drive systems.
-
Process Control Systems – Used for analog feedback in closed-loop speed or torque regulation.
-
Pulp & Paper Plants – Interfaces control signals from field devices to DC drives managing cutter, roller, and feeder machines.
-
Steel & Metal Plants – Allows integration of temperature, load, and limit switches for control in rolling mills.
-
Marine Propulsion Systems – I/O expansion for thruster or winch drives requiring remote signal processing.
-
Retrofitted Drives – Upgrades legacy DCS drives with modern I/O capability.
Product Advantages
-
Versatile I/O Expansion
Offers configurable digital and analog channels to adapt to various system needs.
-
High Signal Integrity
Features optical isolation and analog separation to protect sensitive drive electronics from noise and surges.
-
Compact, Rack-Mountable Design
Space-efficient, easily slots into existing ABB rack architecture without extra wiring complexity.
-
Field-Proven Reliability
Designed for 24/7 operation in tough industrial environments.
-
Plug-and-Play Integration
Seamlessly integrates into the ABB DCS drive platform using standardized connectors and system firmware.
-
Supports Automation Standards
Compliant with IEC signal ranges and integrates easily with PLCs and SCADA systems.
Frequently Asked Questions (FAQ)
-
What does the SDCS-REB-1C board do in a drive system?
It expands the number of digital and analog inputs/outputs, allowing external devices to interact with the drive system.
-
Is it compatible with all ABB DC drives?
It’s designed for DCS400, DCS500, and DCS600 platforms. It may not be compatible with DCS800 or ACS series drives.
-
Can I use both 0–10V and 4–20mA analog signals on the same board?
Yes, the board supports both formats, though configuration may require software settings or DIP switch changes.
-
How is this board powered?
It receives its power from the main control board through the backplane connection; no separate power input is needed.
-
Can I use this board in safety-critical applications?
While robust, this board is not certified as a SIL-rated safety device. For safety-critical functions, use it in conjunction with certified safety systems.
-
How do I mount the board?
It is a plug-in board that fits directly into the designated I/O slot in the ABB drive rack.
-
Are digital inputs optically isolated?
Yes, all digital channels are optically isolated to prevent back-feed and improve signal reliability.
-
Can it be replaced while the system is running?
No. Always shut down the power before removing or installing the board to avoid damage or system instability.
-
What if I run out of I/O channels? Can I stack another board?
Some systems allow multiple I/O expansions, but you must confirm drive firmware and rack capacity with ABB documentation.
-
How do I verify if the board is working properly?
Use the drive’s diagnostics interface or control software to monitor signal activity. LEDs or firmware logs may indicate faults or channel usage.
