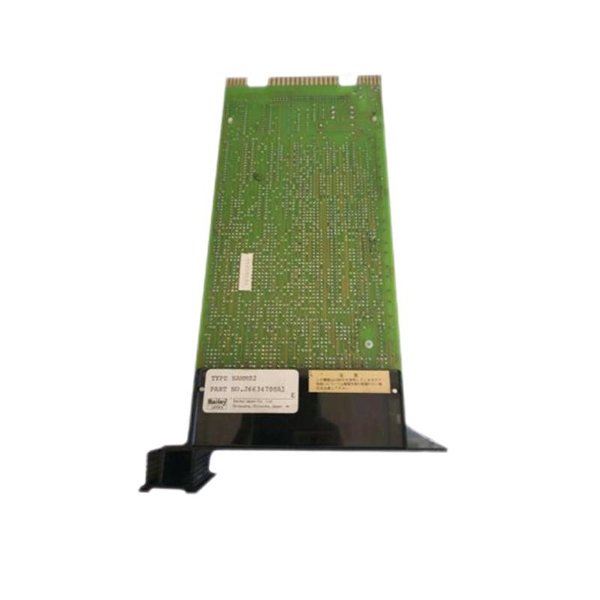

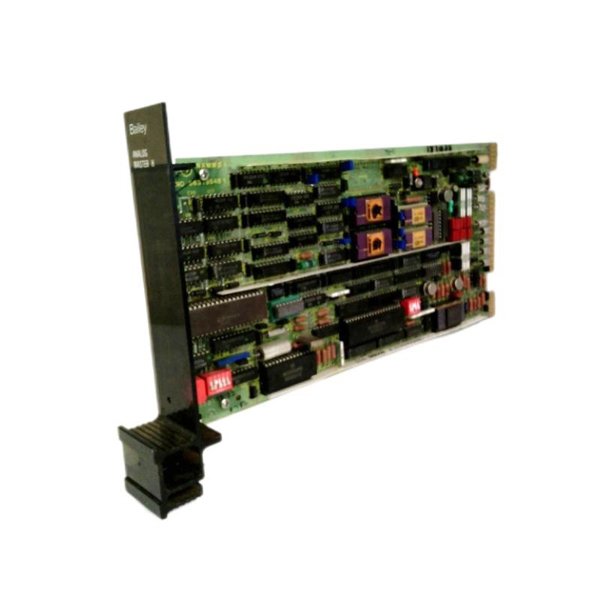

ABB Bailey NAMM01 Analog Master Module

The ABB Bailey NAMM01 Analog Master Module is a critical component in the ABB distributed control systems (DCS). Designed for industrial automation and control, the NAMM01 provides reliable data conversion and interface for analog signals, ensuring smooth communication between field devices and control systems. It allows the control system to process and monitor analog signals from various instruments, sensors, and actuators, which are essential for real-time data acquisition and process management.

This module offers flexibility and scalability in industrial environments, supporting a wide range of analog signals and contributing to the efficiency of industrial operations. The NAMM01 Analog Master Module is designed to handle analog inputs and outputs, providing high-performance data conversion with minimal latency and high accuracy. This makes it particularly useful in applications where precise control and monitoring of analog signals are crucial.

Product Specifications

Product Applications

The ABB Bailey NAMM01 Analog Master Module is used in a variety of industrial sectors for managing and processing analog signals. Below are some of the key applications:

1. Industrial Automation Systems: Ideal for monitoring and controlling analog signals from various field devices like sensors, actuators, and transmitters.

2. Process Control Systems: Used in chemical, petrochemical, and pharmaceutical industries to interface with sensors and actuators that regulate temperature, pressure, flow, and level.

3. Energy Management Systems: Works efficiently in energy plants where constant monitoring and regulation of energy systems are critical.

4. Manufacturing Plants: Provides data integration and signal processing for production lines, robotics, and machinery.

5. Environmental Control: Used to monitor environmental parameters such as temperature, humidity, and chemical composition.

6. Safety and Alarm Systems: Critical in safety monitoring, enabling precise detection and control of alarms and shutdowns triggered by process variations.

Product Advantages

The ABB Bailey NAMM01 Analog Master Module offers several notable benefits:

• High Accuracy and Resolution: With a 16-bit resolution, the module ensures highly accurate analog signal processing, minimizing signal errors and improving system reliability.

• Wide Compatibility: It is compatible with multiple communication protocols, including MODBUS and Fieldbus, which allows seamless integration with a wide range of control systems.

• Scalability: This module supports 16 input/output channels, making it suitable for both small and large-scale systems.

• Robust Performance: The module operates effectively in harsh industrial environments, with an extended temperature range of -20°C to +60°C, ensuring reliability in extreme conditions.

• Space-Saving Design: The compact form factor (216 x 125 x 35 mm) allows easy installation in systems where space is limited.

• Energy Efficient: With a low power consumption of just 3.5W, the module helps reduce the overall energy consumption of the control system.

• Enhanced Protection Features: The module is designed with overvoltage, short circuit, and overcurrent protection, ensuring long-lasting performance and safeguarding sensitive equipment.

• Easy Installation: The DIN rail mounting option makes installation straightforward, saving time and effort during system setup.

Frequently Asked Questions (FAQ)

1. What is the ABB Bailey NAMM01 Analog Master Module used for?

   • The NAMM01 is used for managing and processing analog signals from field devices, such as sensors and actuators, and facilitating communication between field devices and control systems.

2. How many channels does the NAMM01 module support?

   • The module supports 16 input/output channels, allowing multiple devices to interface with the control system.

3. What is the resolution of the NAMM01 module?

   • The NAMM01 module has a 16-bit resolution, ensuring high accuracy in signal processing.

4. What communication protocols are supported by this module?

   • The NAMM01 supports MODBUS and Fieldbus protocols for easy integration with existing systems.

5. What is the operating voltage for the NAMM01 module?

   • The module operates at 24V DC, which is standard for industrial control systems.

6. Can the NAMM01 module handle both voltage and current inputs?

   • Yes, it can handle both voltage and current inputs, making it versatile for different types of field devices.

7. What is the temperature range for the NAMM01 module?

   • The module can operate in environments with temperatures ranging from -20°C to +60°C.

8. How is the NAMM01 mounted?

   • The module is designed for easy DIN rail mounting, which is commonly used in industrial applications.

9. What are the protection features of the NAMM01 module?

   • It includes overvoltage, short circuit, and overcurrent protection, ensuring the safety of both the module and connected equipment.

10. What industries can benefit from using the NAMM01 module?

    • It is widely used in industrial automation, process control, energy management, manufacturing, and environmental monitoring industries.
