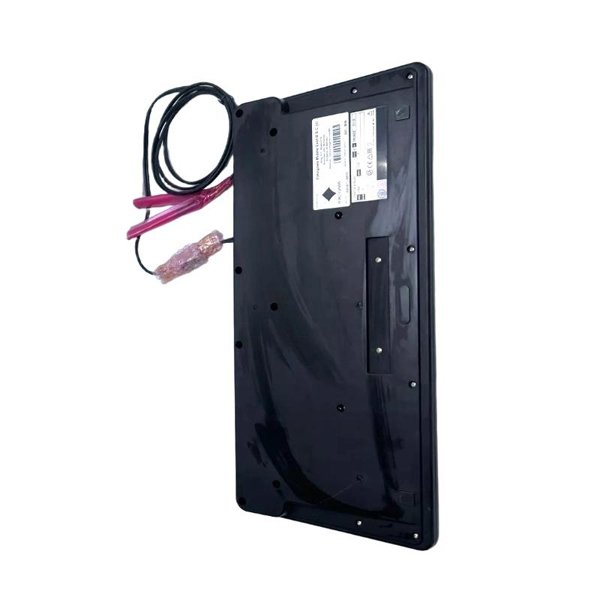

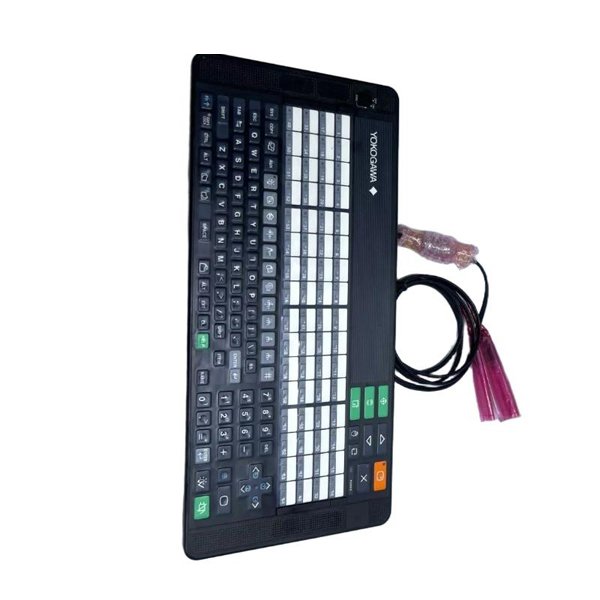

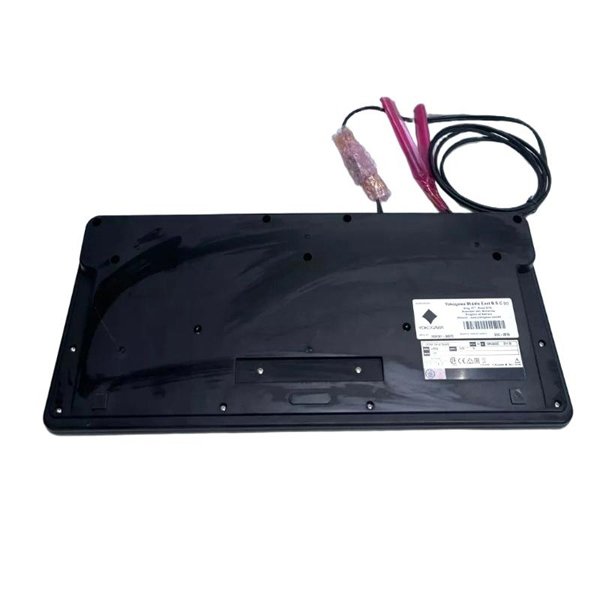

Yokogawa AIP831-011 Operation Keyboard

The Yokogawa AIP831-011 Operation Keyboard is a high-performance operator interface designed for integration with the CENTUM VP and other Yokogawa distributed control systems (DCS). This keyboard provides operators with a reliable and ergonomic interface for monitoring, controlling, and managing complex industrial processes.

The AIP831-011 model builds upon the features of previous AIP831 series keyboards with enhanced key responsiveness, advanced programmable functionality, and improved visual indicators for system status and alarms. It is engineered to operate in industrial environments with high levels of electrical noise, temperature variations, and vibration, making it suitable for chemical plants, oil & gas facilities, power generation, and water treatment operations.

With multi-node integration capabilities, the AIP831-011 allows centralized control while providing flexibility for operators in control rooms. The keyboard design optimizes workflow efficiency, reduces human errors, and ensures rapid response to process events.

Product Specifications

Product Applications

The AIP831-011 Operation Keyboard is suitable for a wide range of industrial applications:

• Real-time monitoring and control of distributed process units in Yokogawa DCS

• Management and acknowledgment of alarms in critical industrial processes

• Local or remote operation of pumps, valves, and actuators in chemical, oil, and gas plants

• Power generation monitoring, including turbines, generators, and auxiliary systems

• Water and wastewater treatment process control, including dosing and feedback regulation

• Centralized operator stations in multi-node control room setups

• Support for continuous and batch processing, including complex control strategies

Product Advantages

• High Reliability: Operates consistently under harsh industrial conditions including electrical noise, vibration, and temperature fluctuations.

• Ergonomic Design: Optimized key layout and tactile feedback reduce operator fatigue and minimize errors.

• Programmable Function Keys: Customizable keys streamline repetitive tasks and improve workflow efficiency.

• Visual Status Feedback: LED indicators and other visual signals clearly communicate system and alarm states.

• Multi-Node Integration: Supports scalable control room setups with independent operator stations.

• Fast Response: Low latency ensures timely execution of operator commands.

• Industrial-Grade Construction: Robust design suitable for demanding industrial environments.

Frequently Asked Questions (FAQ)

1. What types of keys are included in the AIP831-011 keyboard?

   Tactile mechanical keys for primary input, along with programmable function and navigation keys.

2. Is the keyboard compatible with redundant DCS configurations?

   Yes, it supports redundant CENTUM VP configurations with seamless failover.

3. Which interfaces are available for connecting to the DCS?

   The keyboard supports Ethernet, RIO, and serial connections, depending on system architecture.

4. Are all function keys programmable?

   Yes, each function key can be configured using CENTUM VP engineering software.

5. Does the keyboard provide visual feedback for alarms?

   Yes, LED indicators display alarm conditions and operational status in real-time.

6. Can multiple operators use the keyboard at the same time?

   Each keyboard is designed for single-user operation; multi-node network allows independent operation at multiple stations.

7. What is the typical response time from key press to system action?

   ≤ 50 ms under normal operating conditions.

8. Can the keyboard operate in high-humidity environments?

   Yes, it operates reliably in 5% to 95% RH non-condensing environments.

9. What diagnostic features does the AIP831-011 include?

   LED indicators for power, status, and alarms, along with software diagnostics via the DCS system.

10. Is firmware upgrade supported on this keyboard?

    Yes, firmware can be updated via the connected CENTUM VP system to add features or apply fixes.
