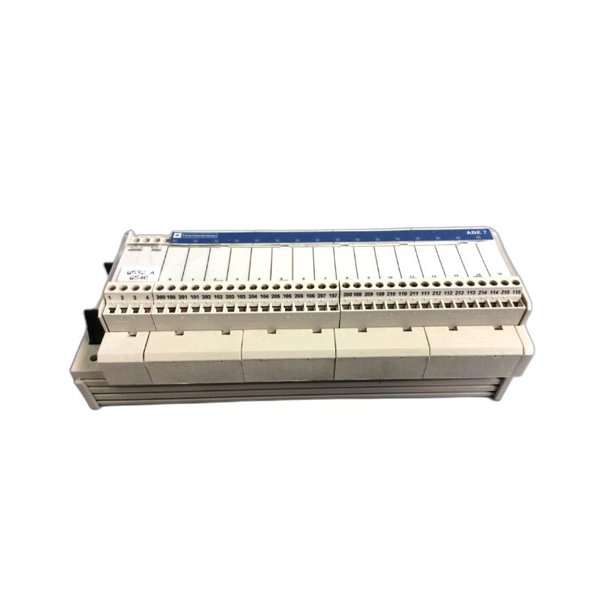

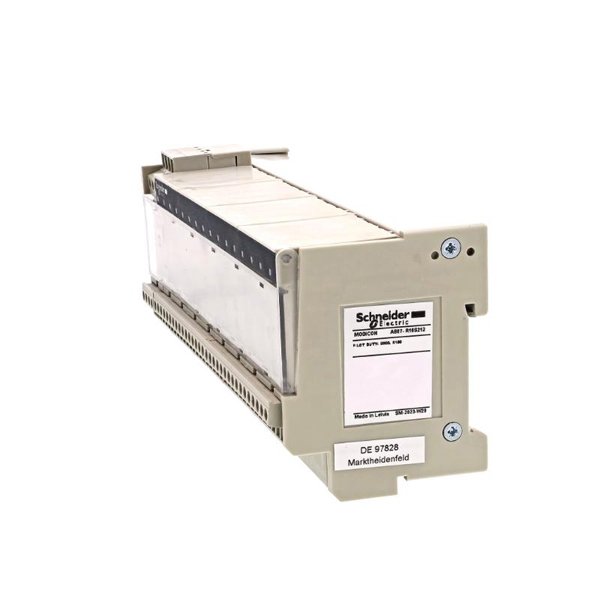

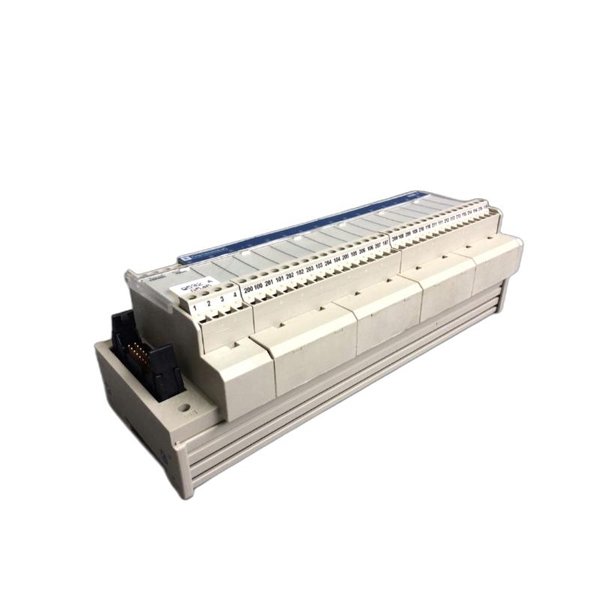

Schneider ABE7R16S212 Soldered Electromechanical Relay Sub Base

The Schneider ABE7R16S212 is a high-quality soldered electromechanical relay sub-base designed for efficient and reliable relay mounting in a wide range of industrial control systems. It ensures safe, consistent, and robust performance while providing an effective solution for the installation and mounting of relays within electrical circuits. This model is part of Schneider Electric’s trusted series of relay sub-bases and is engineered to withstand demanding industrial environments. Its robust design ensures long-lasting durability and easy maintenance, making it an ideal choice for various industrial applications.

The ABE7R16S212 sub-base is designed to support Schneider Electric relays and provides superior flexibility with its easy mounting system, ideal for use in automation and control systems. The high-quality materials used in its construction guarantee longevity and reliable operation, even in harsh conditions.

Product Specifications

The following table summarizes the key specifications of the Schneider ABE7R16S212 Soldered Electromechanical Relay Sub Base:

Applications

The Schneider ABE7R16S212 relay sub-base is used in various applications where efficient and secure relay mounting is required. Its versatility makes it suitable for numerous industries, including:

• Industrial Control Systems: Ideal for use in factory automation and control systems.

• Automation Systems: Serves as a central component in automation systems, managing relay-based switching.

• Switchgear Panels: Used in switchgear systems to control high-power electrical circuits.

• HVAC Systems: Utilized in HVAC control systems to switch and manage electrical relays effectively.

• Building Management Systems: Helps control and monitor electrical systems in commercial and industrial buildings.

• Safety and Alarm Systems: Integrated into critical safety and alarm systems to ensure safe operations.

Advantages

1. Reliability: The ABE7R16S212 sub-base is engineered for high reliability and offers dependable operation even under harsh conditions.

2. Compact and Lightweight: With its small footprint and light weight, the sub-base can be used in applications with space constraints.

3. Ease of Use: Simple mounting methods, both on DIN rails and through direct mounting, make it user-friendly.

4. Durability: The high-quality materials used in its construction provide superior resistance to wear, ensuring longevity.

5. High Current Rating: With a current rating of 16 A, the sub-base supports high-power applications.

6. Flexibility: Compatible with a range of Schneider Electric relays, offering flexibility for different systems.

7. Long Mechanical Life: The sub-base is designed to last up to 10 million operations, making it a cost-effective and long-lasting solution.

8. Environmental Protection: With an IP20 rating, it offers protection against dust and moisture in indoor environments.

9. Safety: The sub-base offers secure relay mounting, preventing malfunctions and ensuring operational safety.

10. Space-Efficient Design: Its compact design ensures that it can be used in smaller control systems without compromising performance.

FAQ

1. What is the maximum current rating for the ABE7R16S212 sub-base?

   • The maximum current rating for this sub-base is 16 A.

2. Can the ABE7R16S212 be used outdoors?

   • No, the ABE7R16S212 is designed for indoor use, with an IP20 environmental protection rating.

3. What is the temperature range for the ABE7R16S212 sub-base?

   • The sub-base operates within a temperature range of -20°C to +55°C.

4. How is the ABE7R16S212 mounted?

   • The sub-base can be mounted on a DIN rail or directly onto a surface.

5. What is the mechanical life of the ABE7R16S212?

   • The mechanical life of this sub-base is 10 million operations.

6. What is the weight of the ABE7R16S212?

   • The weight of the ABE7R16S212 sub-base is 0.4 kg.

7. What is the contact rating for the ABE7R16S212?

   • The contact rating is 16 A (AC).

8. What material is the ABE7R16S212 made from?

   • The sub-base is made from high-quality plastic and metal components.

9. Which relays are compatible with the ABE7R16S212?

   • The ABE7R16S212 is compatible with a range of Schneider Electric’s relays.

10. What are the dimensions of the ABE7R16S212?

    • The dimensions of the sub-base are 206 x 77 x 71 mm.
