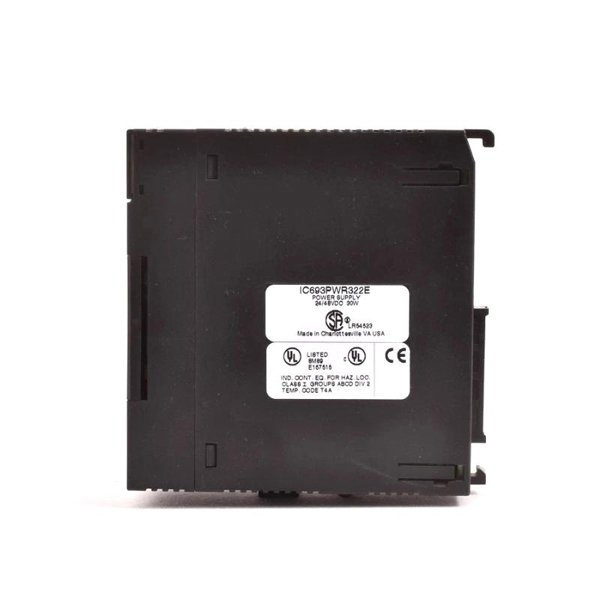

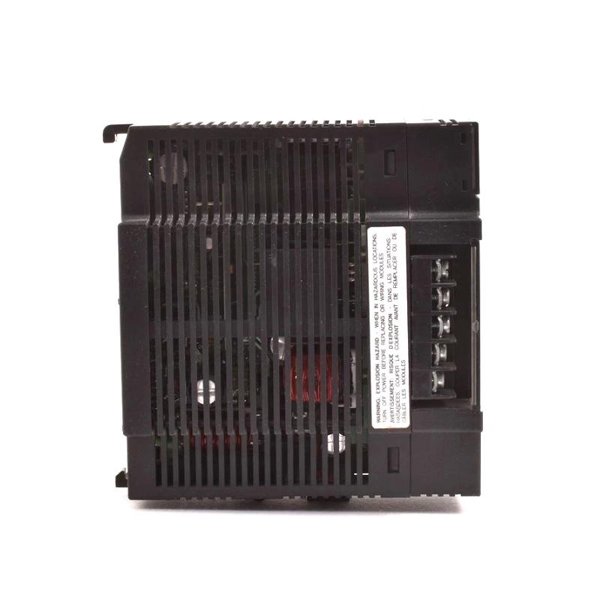

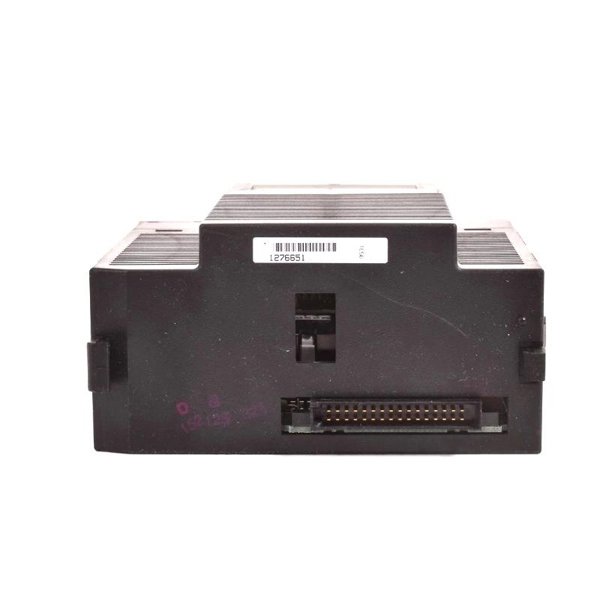

General Electric IC693PWR322 Series 90-30 Power Supply Module
Manufacturer:GE
Product Number:IC693PWR322
Product Type:Power Supply Module
Origin:USA
Dimensions:129 x 52 x 117 mm
Weight:0.5 kg
Views:42
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The GE IC693PWR322 is a standard power supply module for the Series 90-30 PLC system. It operates on 24/48 VDC and is designed to provide reliable power to various modules within the system. It mounts easily into a standard power slot and supports multiple voltage outputs.
Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | IC693PWR322 |
| Series | GE Series 90-30 |
| Input Voltage | 24/48 VDC |
| Output Voltages | +5VDC, +24VDC Relay, +24VDC Isolated |
| Output Power Capacity | 30 Watts total |
| +5VDC Output Power | 30 Watts (Max 7A) |
| +24VDC Relay Output Power | 15 Watts |
| +24VDC Isolated Output Power | 20 Watts |
| Ride-Through Time | ≥10 ms |
| Indicators | PWR, OK, RUN, BATT LEDs |
| Communication Port | RS-485 (SNP Protocol) |
| Battery Backup | Supported (Lithium, IC693ACC301) |
| Dimensions (W x D x H) | 129 x 52 x 117 mm |
| Weight | 0.5 kg |
Applications
-
Power distribution in modular PLC racks
-
Reliable power supply for relay and input modules
-
Backup memory support in critical control systems
Product Advantages
-
Supports multiple voltage outputs from a single unit
-
Built-in protection against overcurrent and surge
-
Compact size for efficient panel integration
-
Integrated RS-485 port for serial communication
-
LED indicators for fast diagnostics
-
Easily replaceable battery for RAM memory backup
Frequently Asked Questions (FAQ)
Q1: What is the input voltage range for IC693PWR322?
A1: The module supports 24 or 48 VDC nominal input.
Q2: Can this power supply be used with expansion baseplates?
A2: It is designed for use with CPU baseplates; not suitable for remote or expansion units.
Q3: What types of outputs does the power supply provide?
A3: It provides +5VDC, +24VDC Isolated, and +24VDC Relay outputs.
Q4: What happens if the output is overloaded?
A4: The module shuts down and auto-recovers when the overload is cleared.
Q5: Is there a battery included with the module?
A5: No, the lithium battery must be ordered separately (IC693ACC301).
Q6: How is communication handled through the module?
A6: Through an RS-485 compatible serial port supporting SNP protocol.
Q7: What do the status LEDs indicate?
A7: They show power status (PWR), PLC health (OK), PLC mode (RUN), and battery status (BATT).
Q8: How much total output power can the unit deliver?
A8: It delivers a combined maximum of 30 Watts across all outputs.
Q9: Does the module support memory backup during power loss?
A9: Yes, with a backup lithium battery installed.
Q10: Can I perform Hi-Pot tests with the unit installed?
A10: Yes, but the internal jumper for overvoltage protection must be temporarily removed.
