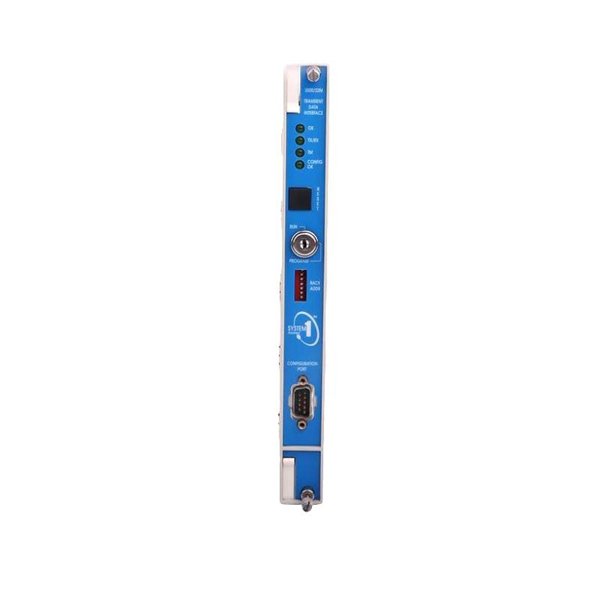

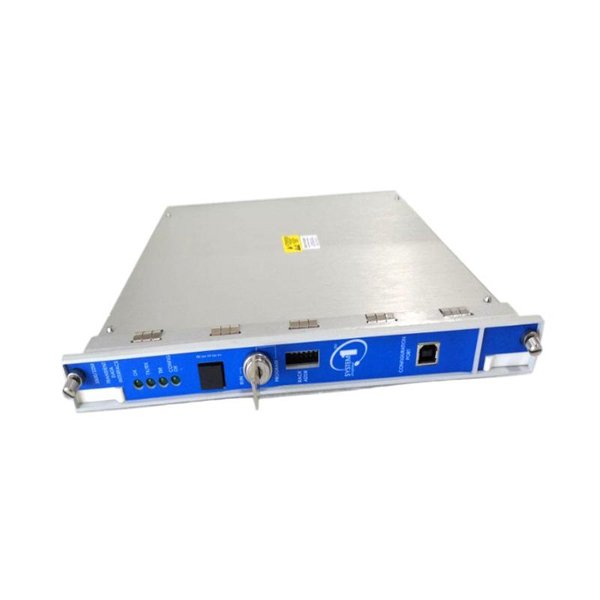

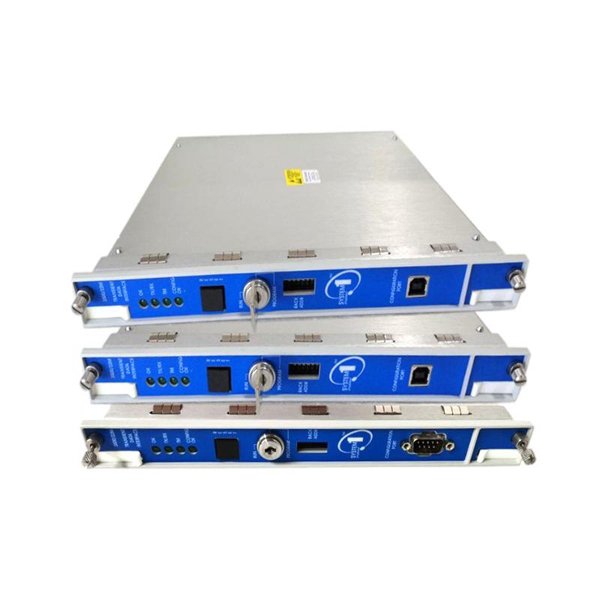

Bently Nevada 3500/22-01-03-00 Transient Data Interface Module

The Bently Nevada 3500/22-01-03-00 Transient Data Interface Module is an advanced industrial component designed for high-speed data acquisition in critical machinery monitoring applications. This product plays a key role in capturing transient signals, which include vibrations, pressure fluctuations, and temperature changes, making it an essential tool for predictive maintenance and real-time equipment health monitoring.

Specifically engineered for environments that demand precise, high-frequency data collection, the 3500/22-01-03-00 module integrates seamlessly with Bently Nevada’s comprehensive 3500 series to deliver a reliable solution for industrial equipment monitoring. The module enables operators to track potential failures and take corrective actions before they lead to costly downtime or catastrophic failures.

Product Specifications

Product Applications

The Bently Nevada 3500/22-01-03-00 Transient Data Interface Module is primarily used in high-stakes industries where equipment uptime is critical. Some of the key applications of this product include:

1. Power Generation

   The module helps monitor turbines, compressors, and other critical machinery within power plants, ensuring uninterrupted service and preventing unforeseen failures.

2. Oil and Gas

   In oil refineries and offshore rigs, this module captures transient data for monitoring equipment such as pumps, compressors, and drilling machinery.

3. Mining and Heavy Industry

   In mining operations, where large machines operate under harsh conditions, the 3500/22-01-03-00 ensures that potential issues are identified before they lead to machine breakdowns.

4. Automotive Manufacturing

   High-precision manufacturing equipment in the automotive sector benefits from the transient data capture provided by the module, helping to maintain efficiency and avoid downtime.

5. Aerospace

   Aerospace manufacturers use the module to monitor vital equipment, ensuring components like turbines and propulsion systems are running at optimal conditions.

Product Advantages

1. High-Speed Data Acquisition

   With a 100 kHz data sampling rate, this module ensures real-time capture of critical transient signals, which is crucial for early detection of faults.

2. Multiple Channel Inputs

   The module supports up to 8 differential or 16 single-ended input channels, allowing users to collect extensive data from multiple machines simultaneously.

3. Wide Operating Temperature Range

   Designed to function between -40°C and +85°C, the module is robust enough to handle extreme environmental conditions found in heavy industrial settings.

4. Compact and Lightweight Design

   With a compact size (241.3 x 24.4 x 241.8 mm) and a weight of just 0.91 kg, the module is easy to install even in space-constrained areas.

5. Seamless Integration

   Supporting popular communication protocols like Modbus, Ethernet, and RS-485, this module can easily integrate with existing industrial control systems.

6. Durable Protection

   Rated IP20, the module provides adequate protection against dust, ensuring its longevity and reliability in various industrial applications.

7. Predictive Maintenance

   By monitoring transient data, the module enables operators to predict and prevent machine failures, leading to reduced downtime and maintenance costs.

8. Easy Installation

   Designed for DIN rail mounting, this module simplifies the installation process, allowing for quick and efficient integration into control panels.

FAQ

Q1: What is the function of the Bently Nevada 3500/22-01-03-00 module?

A1: This module is designed to capture and transmit transient data from machinery to facilitate predictive maintenance and real-time monitoring.

Q2: What kind of data does this module capture?

A2: The module captures transient signals such as vibrations, pressure changes, and temperature fluctuations to detect anomalies in machinery performance.

Q3: Can this module operate in harsh environments?

A3: Yes, it is designed to withstand extreme conditions, with an operating temperature range from -40°C to +85°C and an IP20 rating for protection against dust.

Q4: How many input channels does the module support?

A4: The module supports 8 differential or 16 single-ended input channels, providing flexibility for monitoring various machinery.

Q5: What are the communication options available for this module?

A5: The module supports Modbus, Ethernet, and RS-485 protocols, ensuring easy integration with existing systems.

Q6: Is the module compatible with other Bently Nevada products?

A6: Yes, it is fully compatible with other components in the Bently Nevada 3500 series, providing a unified solution for machinery monitoring.

Q7: What is the data sampling rate of this module?

A7: The module offers a high-speed data sampling rate of 100 kHz, allowing for accurate and timely detection of transient events.

Q8: How accurate is the data captured by this module?

A8: The module provides an accuracy of ±0.1%, ensuring reliable and precise data collection for analysis.

Q9: What mounting option does this module support?

A9: The Bently Nevada 3500/22-01-03-00 module is designed for DIN rail mounting, making installation straightforward and secure.

Q10: What is the weight of the module?

A10: The module weighs 0.91 kg, making it lightweight and easy to integrate into industrial control systems.
