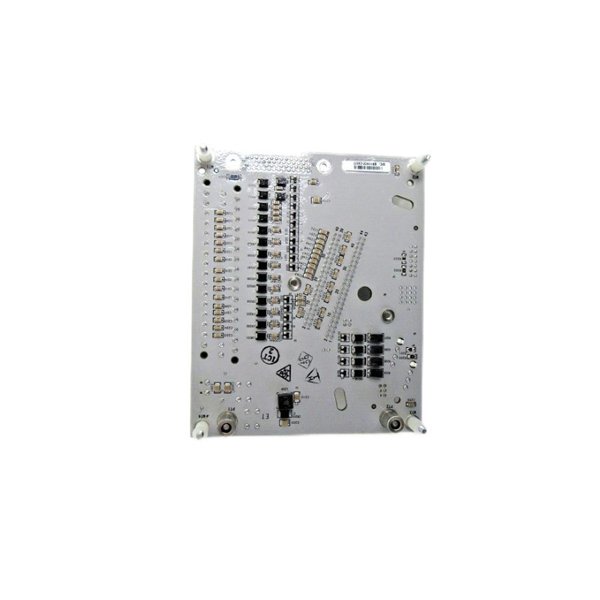

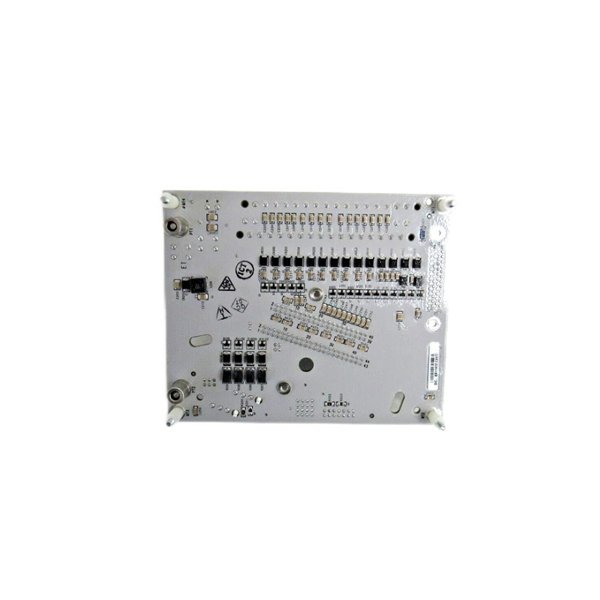

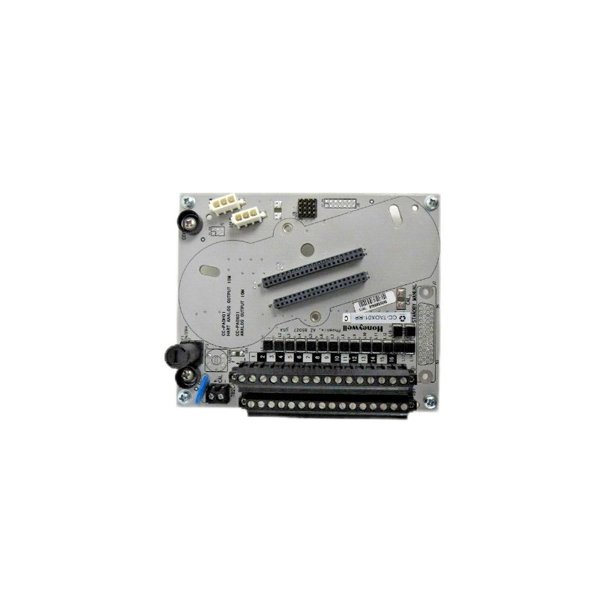

Honeywell CC-TAOX10 Analog output Modules

This module is specifically designed to ensure seamless integration with other Honeywell I/O components and controllers, supporting scalable architectures for both small-scale installations and large process plants. Its field-proven reliability and easy installation make it a preferred choice in the oil & gas, power generation, chemicals, and pharmaceutical sectors.

Product Features

• 8 Analog Output Channels: Each channel is independently configurable and supports 4–20 mA current output.

• Redundancy Support: Enables redundant configurations for enhanced system availability.

• Advanced Diagnostics: Built-in self-testing and fault detection improve system maintainability.

• Galvanic Isolation: Protects both the system and the field wiring.

• Hot-Swap Capability: Modules can be replaced without shutting down the system.

• Seamless Integration: Fully compatible with Experion PKS and C300 controllers.

• Extended Environmental Range: Operates reliably in industrial temperature and humidity conditions.

• Compact Form Factor: Enables space-efficient cabinet installation.

Technical Specifications

Applications

The CC-TAOX10 is widely used across a broad spectrum of industries where precise analog control is critical:

• Oil & Gas: Regulates pressure control valves and actuators in upstream and downstream operations.

• Power Generation: Controls steam turbine actuators, feedwater systems, and load-sharing systems.

• Chemicals & Petrochemicals: Drives proportioning valves in continuous and batch process control.

• Pharmaceuticals: Enables fine dosing and flow control in validated environments.

• Food & Beverage: Supports process consistency in mixing and temperature regulation.

• Water & Wastewater: Manages pump speed and chemical dosing systems.

Product Advantages

• High Precision Output: Delivers accurate 4–20 mA current signals suitable for critical control applications.

• System Redundancy: Ensures uninterrupted operation during failures with built-in support for redundant configurations.

• Enhanced Safety and Protection: Galvanic isolation and internal diagnostics prevent damage to sensitive devices.

• Simplified Maintenance: Diagnostics features reduce troubleshooting time and enable proactive maintenance.

• Easy Installation and Hot-Swapping: Reduces downtime during installation and replacement.

• Integrated Ecosystem Compatibility: Designed to work flawlessly with other Honeywell hardware and software, improving lifecycle management.

Frequently Asked Questions (FAQ)

Q1: What is the primary function of the CC-TAOX10 module?

A1: The module outputs analog current signals (typically 4–20 mA) to field devices for precise control.

Q2: Can the CC-TAOX10 be used in redundant configurations?

A2: Yes, it fully supports redundancy for high availability applications.

Q3: Is the CC-TAOX10 hot-swappable?

A3: Yes, it can be replaced without shutting down the system.

Q4: What kind of isolation does this module provide?

A4: The module provides galvanic isolation between channels and the system for protection and signal integrity.

Q5: How many channels does the CC-TAOX10 offer?

A5: It provides 8 independently configurable analog output channels.

Q6: What is the output signal range?

A6: Each channel outputs a current signal in the 4–20 mA range.

Q7: In which systems can the CC-TAOX10 be integrated?

A7: It is designed for integration with Honeywell’s Experion PKS and C300 systems.

Q8: What diagnostics features are included?

A8: The module includes loop monitoring, channel health checks, and fault reporting.

Q9: What mounting method is used for this module?

A9: The module is DIN rail mounted for easy cabinet integration.

Q10: Is the module certified for industrial environments?

A10: Yes, it meets CE, UL, CSA, and ATEX certifications for global use.
