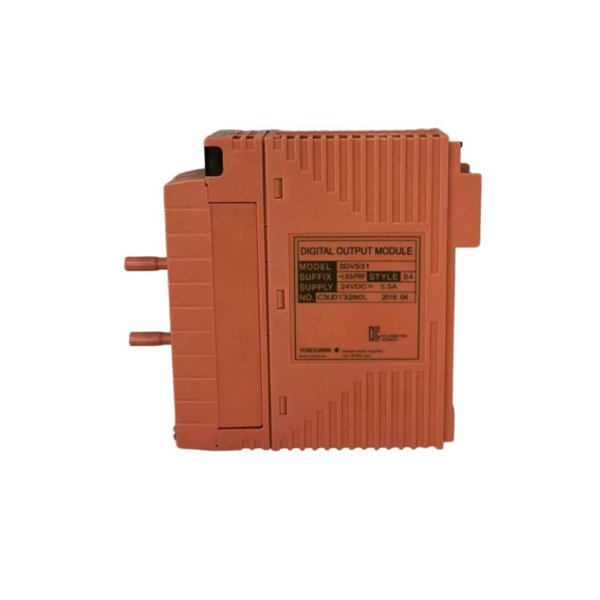

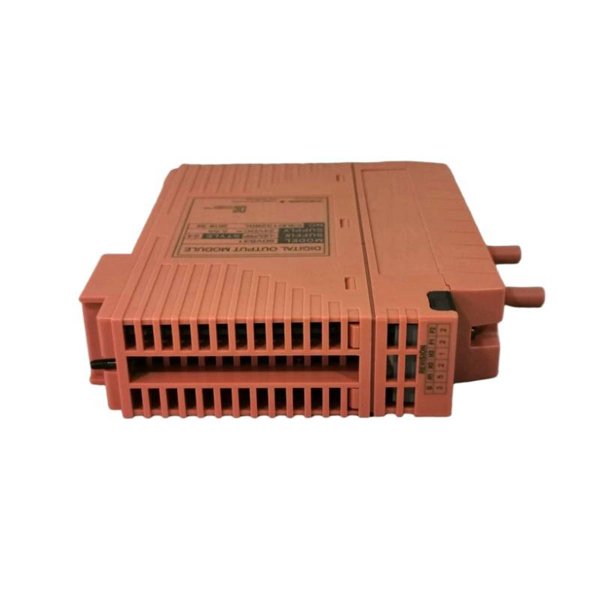

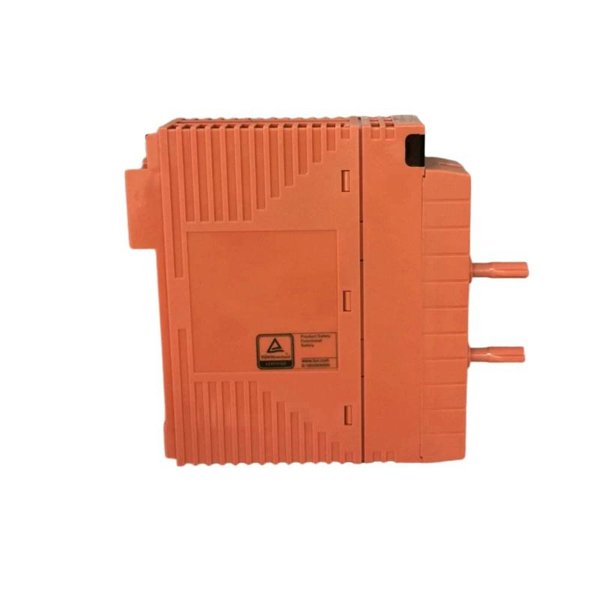

Yokogawa SDV531 Digital Output Module

The Yokogawa SDV531 Digital Output Module is a highly reliable and versatile digital output module designed for industrial automation applications. It forms an integral part of Yokogawa’s extensive control system portfolio, offering a robust solution for controlling outputs in process industries.

This module is specifically designed for use in Yokogawa’s CENTUM™ and STARDOM™ control systems, providing high-quality digital signal outputs for controlling industrial equipment, machinery, and devices. The SDV531 module is well-suited for a wide range of automation systems, helping organizations maintain operational efficiency, improve performance, and optimize production processes.

With high-speed and high-precision digital output capabilities, the SDV531 module supports diverse industrial applications such as remote control of machines, valve operations, and general equipment interfacing. Its reliable performance, compact design, and ease of integration make it a critical component for modern industrial control systems.

Product Specifications

The Yokogawa SDV531 Digital Output Module is equipped with a range of features that enhance its functionality and ease of use in industrial applications. Below are the product specifications:

Applications of the Product

The Yokogawa SDV531 Digital Output Module is used in various industrial automation and control applications, such as:

• Process Control: The SDV531 is ideal for controlling digital outputs within process automation systems. It can control equipment such as motors, solenoids, valves, and alarms in an industrial setting.

• Remote Control Operations: The module is commonly used in remote control applications where digital outputs are required to interface with remote systems or devices, ensuring efficient and secure control of operations.

• Control Systems in Manufacturing: In manufacturing environments, the SDV531 module is used to control automated systems, such as conveyor belts, robotic arms, or other machine interfaces, ensuring smooth operation and coordination within the production line.

• Alarm and Indication Systems: The module can interface with alarm systems, allowing for the triggering of indicators or alarms in response to certain conditions, thus ensuring real-time monitoring and safety.

• Building Automation: The SDV531 is suitable for use in building automation systems, providing reliable control of systems such as lighting, ventilation, and fire alarms.

• Energy Management: In industrial energy management systems, this module is used to control energy-consuming devices, ensuring optimized energy use and minimizing waste.

Advantages of the Product

The Yokogawa SDV531 Digital Output Module offers several advantages that make it a highly attractive option for industrial control systems:

• Compact and Lightweight: With dimensions of 130 x 124 x 32.8 mm and a weight of only 0.28 kg, the SDV531 is a compact module that does not require significant space within control panels. This makes it suitable for environments where space is limited.

• High-Speed and High-Precision Control: The module offers precise and reliable digital output control, with a current output of 500 mA per channel, ensuring accurate operation of connected devices.

• Wide Operating Temperature Range: With an operating temperature range of -10°C to +60°C, the SDV531 can function in a variety of environmental conditions, making it suitable for both indoor and outdoor industrial applications.

• DIN Rail Mounting: The SDV531 module uses a DIN rail for mounting, making it easy to integrate into existing systems and ensuring secure placement within electrical cabinets or control panels.

• Easy Integration: The IEC 61131-2 compliant interface ensures seamless integration with various control systems, simplifying installation and configuration for users.

• Energy Efficiency: With a low power consumption of only 3 W, this module is energy-efficient, contributing to the overall cost-effectiveness and sustainability of the control system.

Frequently Asked Questions (FAQ)

1. What is the purpose of the Yokogawa SDV531 Digital Output Module?

   • The SDV531 is designed to provide reliable digital output control for industrial equipment, machinery, and devices, especially in process control and automation systems.

2. How many digital output channels does the SDV531 module have?

   • The SDV531 module has 8 digital output channels.

3. What is the output voltage of the SDV531 module?

   • The output voltage is 24 V DC.

4. What is the current output per channel for the SDV531?

   • The module provides 500 mA per channel.

5. What is the operating temperature range for the SDV531?

   • The operating temperature range is from -10°C to +60°C.

6. What is the weight of the Yokogawa SDV531 Digital Output Module?

   • The module weighs 0.28 kg.

7. How is the SDV531 module mounted?

   • The SDV531 uses DIN rail mounting, making it easy to integrate into control panels.

8. What is the power consumption of the SDV531 module?

   • The module consumes 3 W of power.

9. Is the SDV531 compliant with international standards?

   • Yes, the SDV531 is IEC 61131-2 compliant, ensuring compatibility with various industrial control systems.

10. What types of systems can the SDV531 module be used with?

• The SDV531 is compatible with Yokogawa CENTUM™ and STARDOM™ control systems and other industrial automation applications requiring digital output control.
