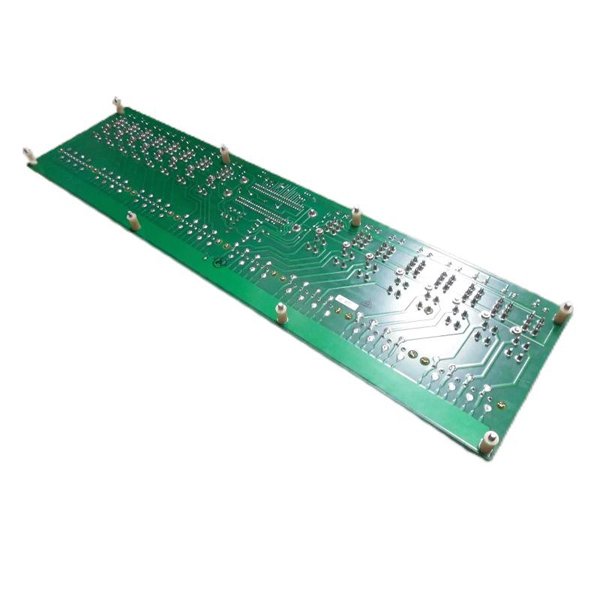

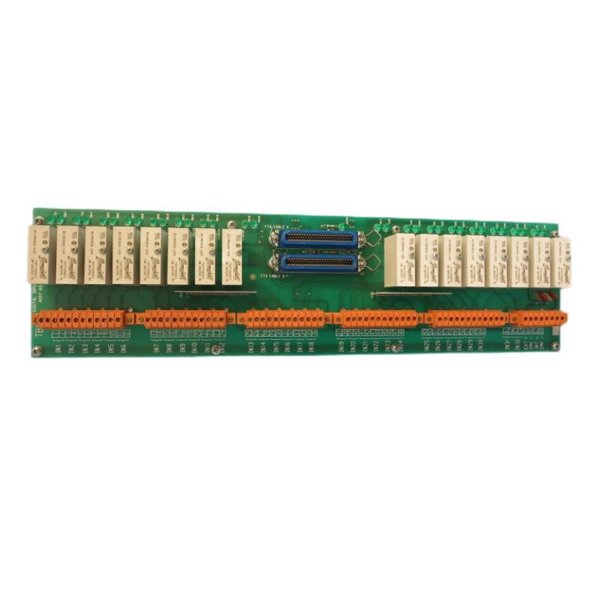

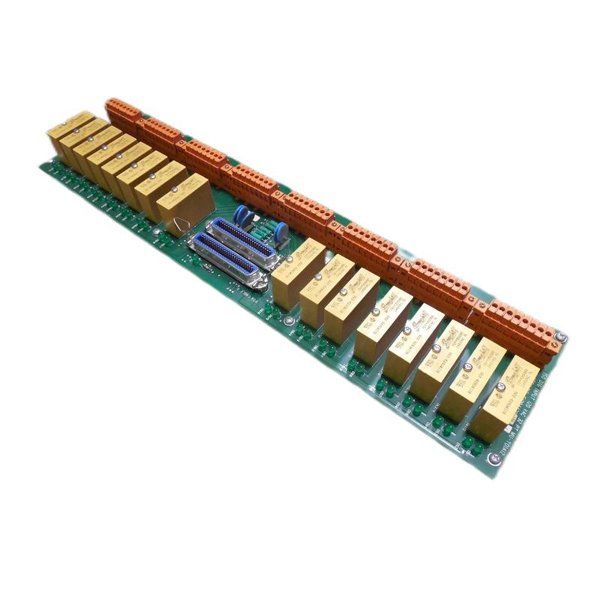

Honeywell MU-TDIA12 51304439-100 Digital Input Module with Compression Terminals

The Honeywell MU-TDIA12 51304439-100 Digital Input Module with Compression Terminals is a high-performance digital input module designed to interface with field devices and monitor discrete signals in industrial automation systems. Featuring compression terminals, this module offers secure, vibration-resistant connections, ensuring the integrity and reliability of signal transmission even in demanding environments.

This module supports up to 12 discrete digital inputs, making it ideal for applications where reliable and high-quality digital signal processing is essential. Its compact design allows for seamless integration into control systems, and its robust construction ensures long-lasting durability. The MU-TDIA12 is widely used in a range of industries, including manufacturing, power generation, and oil & gas, where precise digital input acquisition is crucial for operational safety and efficiency.

The module is compatible with Honeywell’s Distributed Control Systems (DCS), making it a versatile and highly integrable component in industrial automation projects.

Product Parameters

Product Applications

The Honeywell MU-TDIA12 Digital Input Module is ideal for a variety of industrial applications where accurate and reliable digital signal processing is required:

• Manufacturing Plants: Monitors signals from machinery and equipment, providing reliable data for automation and control.

• Power Generation: Interfaces with devices like relays and circuit breakers to monitor critical signals, ensuring safe operation of power plants.

• Oil & Gas: Used to monitor safety interlocks, valves, and other important systems in both upstream and downstream operations.

• Water & Wastewater Treatment: Captures signals from level sensors, pumps, and alarms to ensure effective plant operations and regulatory compliance.

• Building Automation: Controls and monitors HVAC systems, lighting, and security systems using digital inputs from various field devices.

• Chemical Processing: Provides input from sensors monitoring safety-critical processes in chemical plants to enhance operational safety.

Product Advantages

1. Compression Terminals – Provides secure and vibration-resistant connections for high-reliability performance, reducing the risk of connection failures.

2. Multiple Inputs – The module supports 12 discrete digital inputs, offering flexibility for various input configurations.

3. Compact Design – Its small footprint allows easy installation into control panels with limited space.

4. Fast Response Time – Capable of responding to digital signals in less than 15 milliseconds, ensuring real-time monitoring and control.

5. High Durability – Built to withstand harsh industrial conditions, including vibration and electromagnetic interference (EMI).

6. Wide Operating Temperature Range – Operates in temperatures ranging from -20 °C to +60 °C, making it suitable for a variety of environments.

7. Easy Mounting – Features DIN rail mounting for easy installation and maintenance.

8. Industrial-grade EMI/RFI Protection – Ensures stable operation in electrically noisy environments, ideal for industrial automation systems.

9. Certified for Safety – Compliant with CE and UL safety standards, ensuring the module meets international quality and safety regulations.

10. Seamless Integration – Fully compatible with Honeywell’s Distributed Control Systems (DCS), ensuring smooth communication and data exchange.

FAQs

Q1: How many digital inputs does the MU-TDIA12 module support?

A1: It supports up to 12 discrete digital inputs.

Q2: What is the nominal input voltage for the module?

A2: The nominal input voltage is 24 V DC.

Q3: What type of terminals does the MU-TDIA12 use?

A3: It uses compression terminals for secure and vibration-resistant wiring.

Q4: What are the module’s physical dimensions and weight?

A4: The module’s dimensions are 462.3 x 120.7 mm, and the shipping weight is 1 kg.

Q5: What is the response time for this module?

A5: The response time is less than or equal to 15 milliseconds.

Q6: Can the MU-TDIA12 be mounted on a DIN rail?

A6: Yes, the module is designed for DIN rail mounting.

Q7: Is this module compliant with international standards?

A7: Yes, it is CE and UL certified.

Q8: What is the operating temperature range for the module?

A8: The module operates within a temperature range of -20 °C to +60 °C.

Q9: How does the module protect against electromagnetic interference (EMI)?

A9: The MU-TDIA12 is designed with industrial-grade EMI/RFI protection to ensure stable operation in electrically noisy environments.

Q10: What industries typically use this module?

A10: The MU-TDIA12 is used in manufacturing, power generation, oil & gas, water treatment, building automation, and chemical processing industries.
