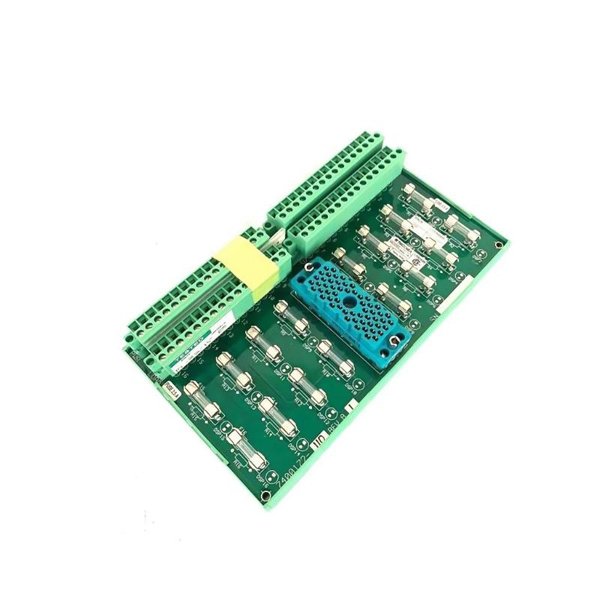

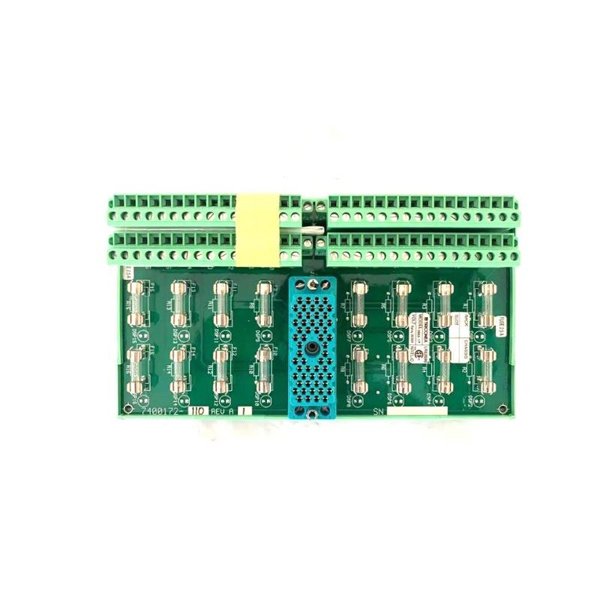

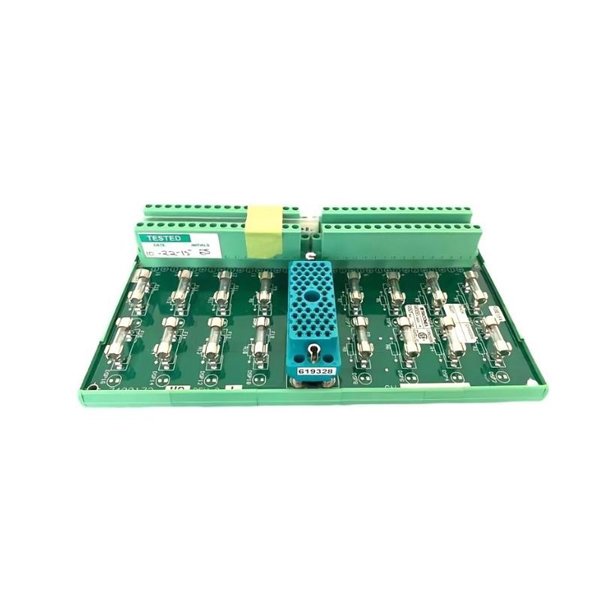

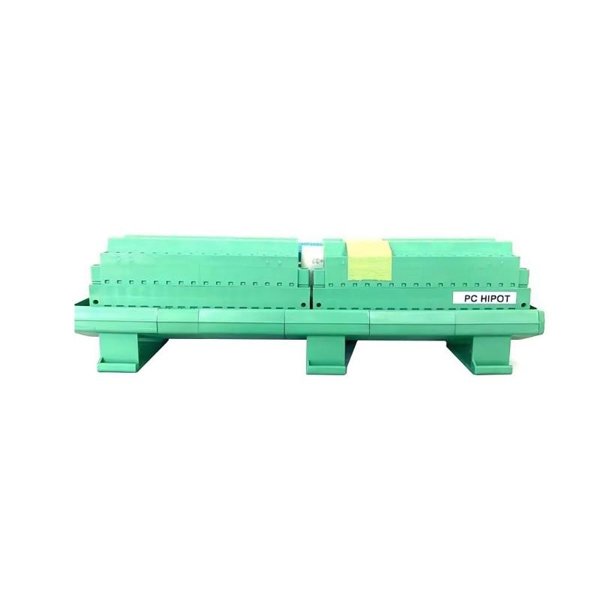

Triconex 9668-1 7400172-110 Termination Board

The Triconex 9668-1 Termination Board (model number 7400172-110) is a specialized interface device designed to provide secure, organized, and reliable termination points for wiring in Triconex safety systems. Serving as a critical component in safety instrumented systems (SIS), this termination board facilitates the connection of field wiring to Triconex controllers and modules, ensuring signal integrity and simplifying installation and maintenance tasks.

Engineered to meet stringent industrial safety standards, the 9668-1 termination board supports easy integration within control panels and safety cabinets. Its robust construction and clear labeling improve operational safety and reduce the risk of wiring errors in demanding industrial environments.

Product Specifications

Product Applications

• Safety Instrumented Systems (SIS): Provides organized termination points for signal wiring between field devices and Triconex safety controllers.

• Process Automation: Used in chemical, oil & gas, and power generation plants to securely connect field signals.

• Emergency Shutdown Systems (ESD): Helps to facilitate clean and reliable wiring for shutdown control signals.

• Fire and Gas Systems: Enables clear wiring termination for alarm and detection system outputs.

• Industrial Machinery Safety: Assists in safe wiring of control signals for machine safety systems.

• Control Panel Wiring: Centralizes wiring points for easy maintenance and troubleshooting.

Product Advantages

• Reliable Connections: Screw clamp terminals ensure secure, vibration-resistant wiring connections.

• Safety Compliance: Certified to meet SIL 3 safety standards, suitable for high integrity safety systems.

• Simplified Wiring: Provides clear and organized termination points, reducing installation errors.

• Robust Build: Flame-retardant housing and corrosion-resistant terminals increase durability.

• Versatile Mounting: Can be mounted on DIN rails or directly on control panels.

• Ease of Maintenance: Clear terminal labeling and centralized wiring improve troubleshooting efficiency.

• Compatibility: Designed specifically for seamless integration with Triconex safety controllers and I/O modules.

• Compact Size: Space-saving design suitable for crowded control cabinets.

• Long-Term Durability: Withstands harsh industrial environments, including wide temperature and humidity ranges.

Frequently Asked Questions (FAQ)

1. What is the primary function of the Triconex 9668-1 Termination Board?

   It provides organized and secure termination points for wiring connections within Triconex safety systems.

2. How many terminals does the board typically have?

   The board usually offers between 40 to 60 connection terminals depending on the version.

3. What kind of terminals are used for wiring?

   It uses screw clamp terminals to ensure solid and reliable wire connections.

4. Is this termination board compatible with all Triconex safety controllers?

   Yes, it is designed for seamless integration with the Triconex safety system family.

5. What are the operating temperature limits?

   The board operates reliably between -20°C and +70°C.

6. What certifications does the 9668-1 termination board have?

   It is SIL 3 certified and complies with CE and UL safety standards.

7. Can the board be mounted on DIN rails?

   Yes, depending on installation requirements, it supports both DIN rail and panel mounting.

8. How does this board improve maintenance?

   By centralizing wiring and offering clear labeling, it simplifies troubleshooting and repairs.

9. What is the maximum voltage and current rating per terminal?

   The terminals can handle up to 30 V DC and 1 A current.

10. Is the housing material flame-retardant and corrosion resistant?

    Yes, it uses flame-retardant plastics and corrosion-resistant terminals for safety and durability.
